Introduction
As LED display technology continues to evolve, new manufacturing methods are making screens more durable, compact, and high-performing. COB vs GOB LED technologies are two advanced methods used in modern LED display manufacturing. Both aim to improve durability, clarity, and protection—especially in small-pitch indoor screens. However, their structures and performance differ significantly.
In this article, we’ll compare COB vs GOB LED in terms of encapsulation, visual effects, durability, and real-world use, so you can choose the right solution for your video wall, rental display, or signage project.

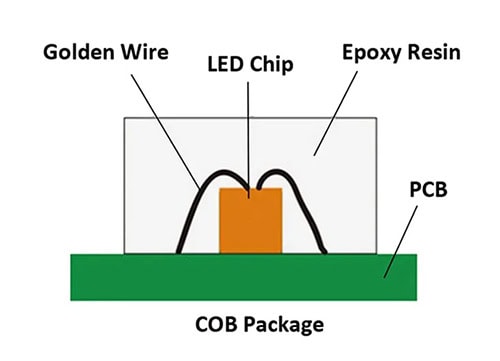

What Is COB LED Technology?
COB, or Chip on Board, is a packaging method where multiple tiny LED chips are mounted directly onto a PCB (printed circuit board) without using traditional SMD brackets. The entire module is then coated with a transparent resin for protection.
Key Characteristics of COB:
- Direct chip bonding: No wire bonding or SMD housing needed.
- Smooth, glass-like surface: Ideal for ultra-close viewing.
- Compact structure: Enables finer pixel pitches (P0.9, P1.2, etc.).
- High thermal efficiency: Excellent heat dissipation due to the tight chip-to-board contact.
Common Use Cases:
- Indoor fine-pitch LED video walls
- Control rooms, broadcast studios, conference halls
- Applications requiring 4K or 8K resolution at close distances
COB’s biggest advantage lies in its visual uniformity and durability. Since the LED chips are sealed under a solid layer, the surface is more resistant to dust, moisture, and physical impact.
If you are interested in COB LED display technology, you can check this article: Is COB LED A Better Choice For LED Screen?

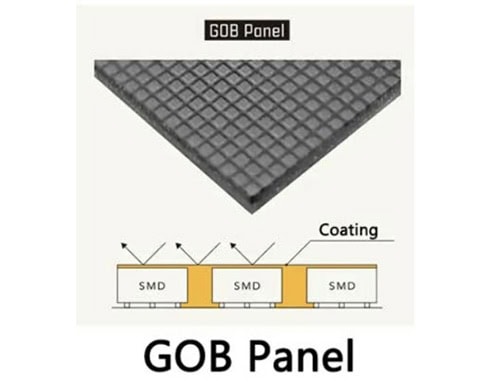

What Is GOB LED Technology?
GOB, or Glue on Board, is another encapsulation technique—built on top of traditional SMD LEDs. After the LEDs are soldered onto the PCB, a transparent, highly durable epoxy resin is applied to cover the entire surface. This gives GOB LED display an added layer of protection while retaining the benefits of SMD technology.
Key Characteristics of GOB:
- Uses SMD LEDs as the base
- Encapsulated with anti-impact glue
- Protects against moisture, dust, and collisions
- Easier to repair or replace individual components than COB
Common Use Cases:
- Rental LED screens for stage events
- Interactive displays or touchscreen installations
- Outdoor semi-waterproof displays
- 3D naked-eye billboards (with added surface protection)
GOB strikes a balance between traditional LED design and enhanced ruggedness—making it a practical choice for dynamic environments where screens are frequently transported, touched, or exposed to impact.
Quick Feature Comparison Table of COB vs GOB
To start with, here’s a side-by-side comparison table to help you see the differences quickly and clearly:
| Feature | COB LED | GOB LED |
| Encapsulation | Chip sealed directly on board | Glue layer over SMD LEDs |
| Durability | Very high | High |
| Visual Flatness | Excellent | Good (minor reflections possible) |
| Water/Dust Proof | Yes | Yes |
| Repairability | Difficult | Easier |
| Impact Resistance | Excellent | Excellent |
| Production Cost | Higher | Medium |
| Best for | Fine-pitch indoor video walls | Rental, 3D, or public displays |
Both offer impressive reliability, but their differences become more important depending on how and where your LED screen will be used.
COB vs GOB In-Depth Comparison: Performance, Durability, Cost
While both COB and GOB improve LED screen durability and stability, they do so using different methods and materials. Here’s the in-depth comparison of their core differences:
- Encapsulation Technology
COB directly seals the LED chips onto the board.
GOB adds a protective glue layer on top of traditional SMD LEDs.

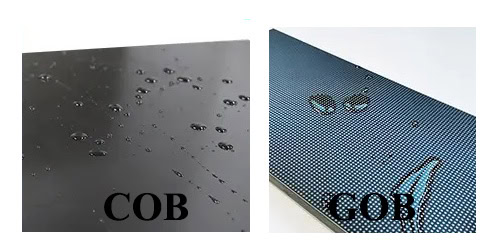

- Surface Texture
COB has a flat, smooth glass-like surface with no lens or protrusions.
GOB retains a slightly visible LED layout under the epoxy.
- Repairability
GOB LED modules can be repaired more easily (individual SMDs can be replaced).
COB LED modules is difficult to repair; once damaged, the entire chip group may need replacement.
- Durability
COB LED screen is slightly more durable due to its sealed chip design.
GOB LED screen offers strong protection but may develop glue degradation over time under UV exposure.
- Manufacturing Cost
COB LED panel is more complex to produce, often resulting in higher prices.
GOB LED panel is more cost-effective and easier to scale in production.
COB vs GOB in Real-World Projects: Insights from a Manufacturer
At YUCHIP, we’ve delivered COB LED screens and GOB LED displays to clients in over 100 countries. Based on our real-world project experience, here’s how these technologies perform in practice:

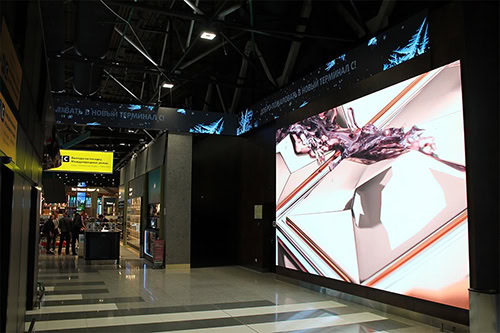

Retail & Customer-Facing Displays
In retail settings like shopping malls and convenience stores, GOB LED displays are favored for their enhanced surface protection. Even though LED screens aren’t naturally touch-sensitive, GOB displays are often used in installations where an external touch overlay is added—thanks to their epoxy-coated surface, which resists fingerprints and physical impact. The protective layer also reduces glare, improving visibility in brightly lit environments.

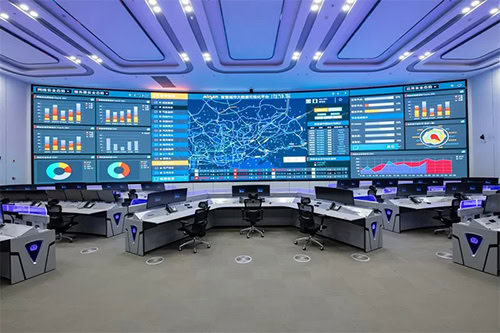

Broadcast Studios & Control Rooms
These environments demand uninterrupted visuals and long-term stability. COB LED display is the go-to choice here because its ultra-flat surface delivers minimal reflection, and its sealed chip design ensures 24/7 stability.
Event Rentals & Touring Applications
Rental companies that manage frequent installations and dismantling prefer GOB LED displays. They balance visual performance with protection, and if any damage happens during transport, the modules are far easier to replace than COB.
High-End Corporate Showrooms
In premium environments like corporate showrooms, tech demo rooms, or luxury retail stores, COB LED displays are often favored for their sleek, borderless appearance. The ultra-fine pixel pitch and uniform surface provide a clean, high-resolution look—ideal for impressing clients or showcasing products in vivid detail.
These insights show how real-world use, not just specs, should guide your LED technology choice.
COB vs GOB: Which One Should You Choose?
Then which one should you choose? Your best choice depends on where and how you plan to use the screen:
- For indoor, high-resolution LED displays(P0.9–5) used in control rooms, studios, or boardrooms:
→ COB offers seamless visuals, better heat management, and a longer lifespan. - For rental screens, interactive displays, or exposed installationsthat demand impact resistance and easier maintenance:
→ GOB is more practical and affordable.
Also consider:
- Maintenance access: Can you replace modules easily?
- Operating environment: Is there a lot of dust, humidity, or physical contact?
- Budget and scale: Are you building a large LED wall or a small high-precision display?
If you’re unsure, our technical team at YUCHIP is happy to evaluate your needs and recommend the most cost-effective solution.
Final Thought: Manufacturer’s Recommendation
COB and GOB both represent smart advances in LED encapsulation—but they solve different problems.
- COB is the better choice when visual uniformity, long-term stability, and compact form factors are your top priorities.
- GOB shines in tough environments where protection, handling, and quick maintenance matter more.
At YUCHIP, we don’t just sell LED displays—we help you build a future-proof solution. Whether you’re outfitting a command center, a retail store, or a stage backdrop, we’ll match the right technology to your project goals, site conditions, and budget. So contact us now to get expert advice!
Frequently Asked Questions
1.What is the difference between GOB and COB LED?
COB uses direct chip bonding and a sealed surface for high durability and seamless visuals. GOB uses glue over traditional SMD LEDs, offering impact resistance and easier repair.
2.Which is better, GOB or COB?
COB is better for fine-pitch, high-end displays; GOB is better for rugged, cost-effective, and interactive applications.
3.Can I use GOB LEDs outdoors?
Yes, GOB LEDs offer good water and dust resistance, making them suitable for semi-outdoor or protected outdoor use.
