InviAir Series Holographic LED Screen
- Up to 85% Transparency for clear views through glass
- 17 mm Ultra-Thin Design with only 3 kg/m² cabinet weight
- Flexible Installation for flat or curved glass, hanging displays, and freestanding applications
InviAir Series Holographic LED Screen Flexible Display Solutions
Every project has different installation conditions and display goals. The InviAir Series is designed to adapt to them with multiple display solutions built on the same lightweight, transparent technology. Whether integrated into glass, suspended from ceilings, or configured as a mobile digital poster, it delivers an engaging visual experience while maintaining a clean and modern appearance.
Turn existing glass into a vibrant digital display while maintaining visibility and natural light. Ideal for storefronts, glass entrances, and indoor partitions.

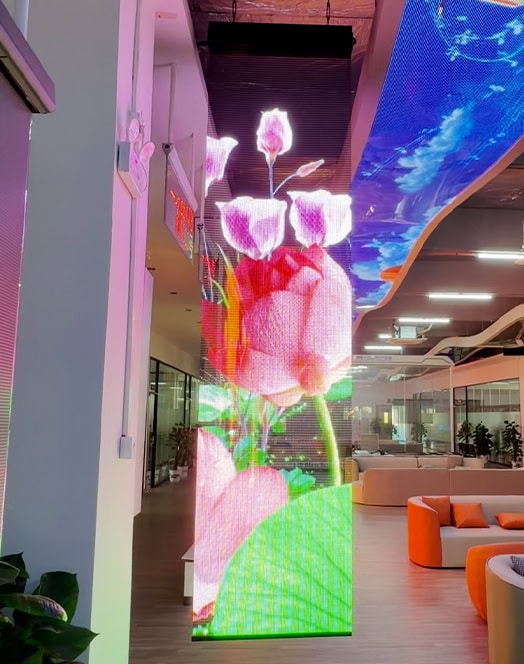

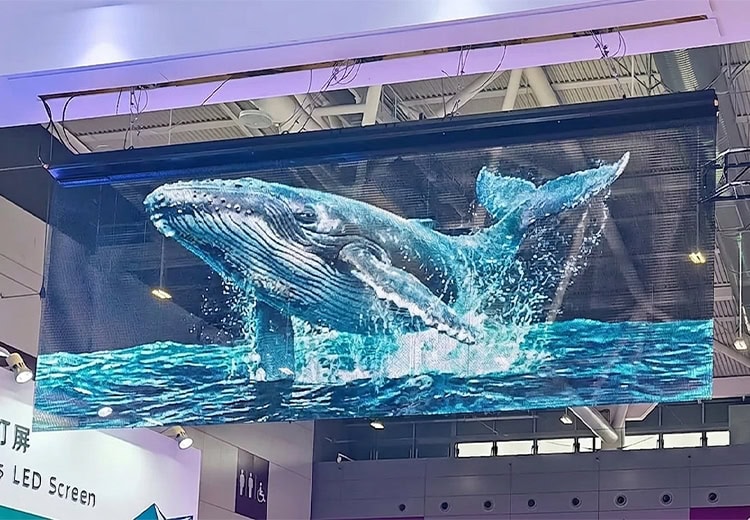

Create eye-catching floating visuals with minimal structural impact. A clean and lightweight solution for showrooms, exhibition halls, and commercial interiors.

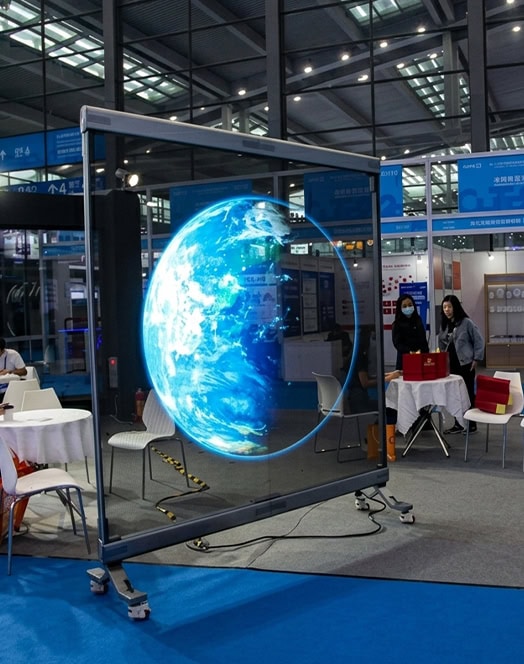

Combine holographic visuals with a movable floor stand for flexible advertising. Perfect for retail promotions, product launches, exhibitions, and temporary events.

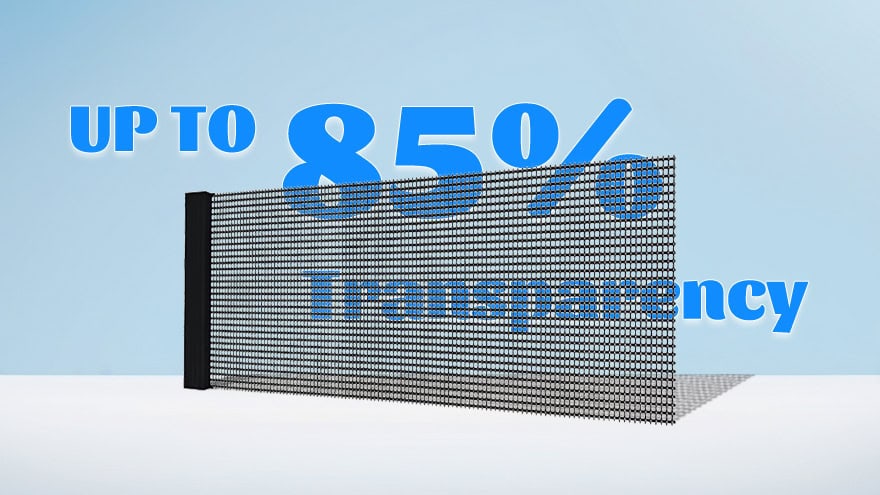

High Transparency That Preserves Glass Visibility
Traditional digital displays often block natural light and obscure the view behind the screen. The InviAir Series features up to 85% transparency, allowing digital content to appear while maintaining clear visibility through the glass. This creates an engaging display without compromising the openness, brightness, or architectural appearance of storefronts, showrooms, and commercial spaces.

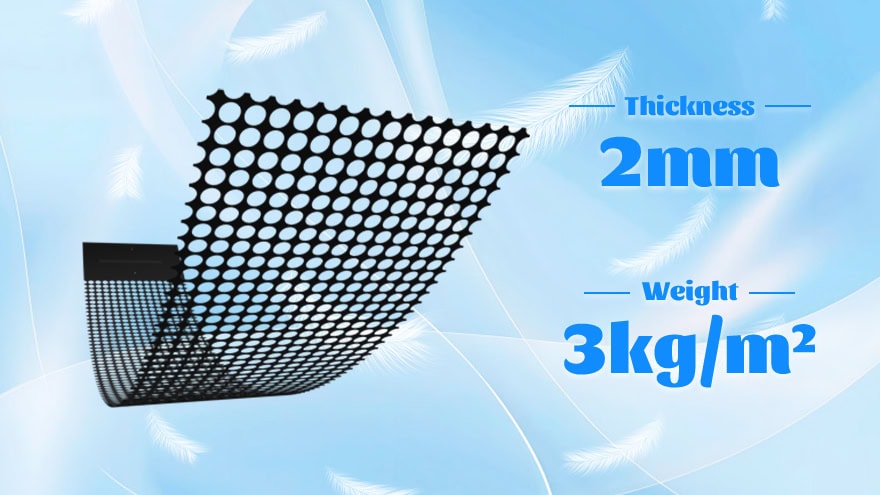

Ultra-Thin & Lightweight Design
With a display film thickness of only 2 mm, the InviAir Series blends naturally into glass surfaces without the bulky appearance of conventional LED displays. Weighing just 3 kg/m², it reduces structural load and simplifies transportation and installation. The slim display film preserves the clean aesthetics of modern architecture while making integration into glass applications easier and more discreet.

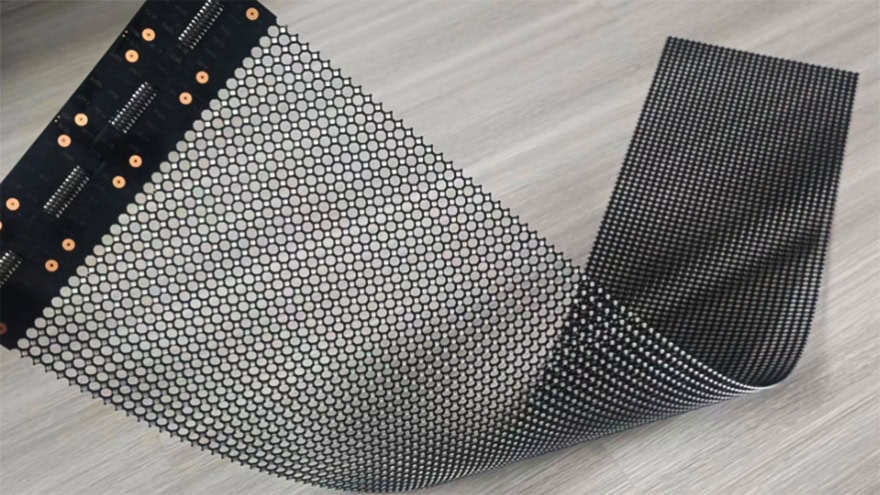

Flexible & Customizable for Creative Displays
Every project has unique design requirements. The flexible display structure can be bent within a suitable radius, cut to custom dimensions, and configured to fit different installation layouts. Whether applied to flat glass, gently curved surfaces, or customized display sizes, the InviAir Series provides greater design freedom while maintaining a clean and professional appearance.
Floating Visual Effects That Capture Attention
The InviAir Series creates vibrant digital visuals that appear to float naturally in the viewing space, drawing attention without the visual heaviness of conventional display structures. Combined with high contrast, smooth playback, and excellent image clarity, it delivers immersive holographic effects for retail promotions, exhibitions, and creative brand experiences. Professionally designed content can further enhance the naked-eye 3D viewing effect.

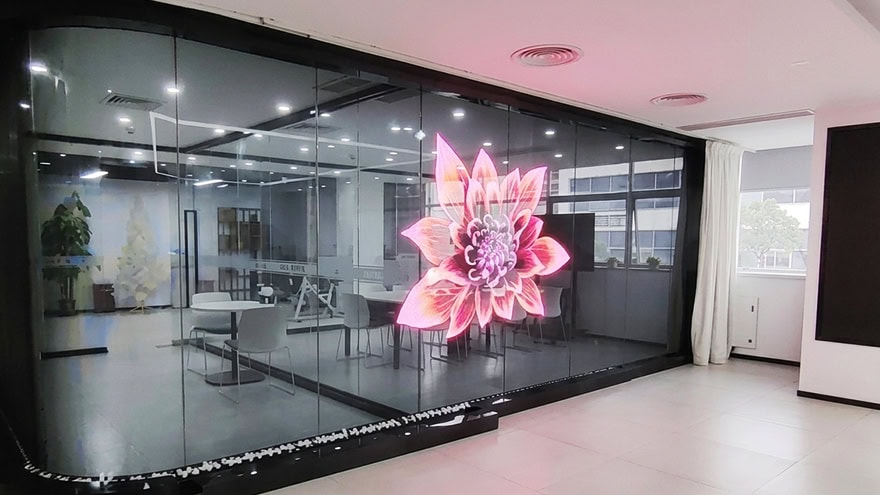

Designed to Keep the Focus on Your Content
Unlike conventional LED displays with bulky cabinets and visible structures, the InviAir Series is designed to minimize the visual presence of the display itself. Its lightweight construction and slim display profile help the hardware blend more naturally into the installation, allowing audiences to focus on vibrant digital content rather than the display structure. The result is a cleaner, more modern presentation that enhances advertising and brand storytelling.

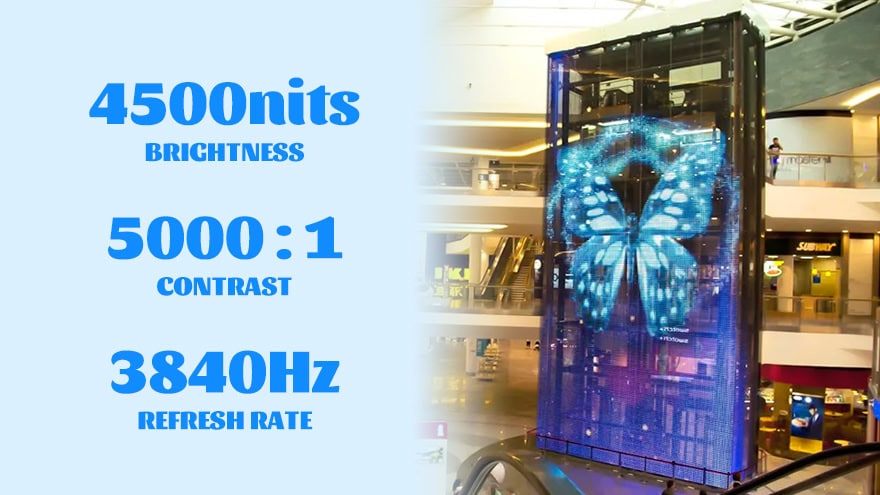

Engineered for Smooth and Immersive Visuals
Creating impressive holographic visuals requires more than creative content—it demands stable display performance. The InviAir Series combines up to 4,500 nits brightness, a 5000:1 contrast ratio, a 3840 Hz refresh rate, and wide viewing angles to reproduce dynamic content with outstanding clarity and smooth motion. Whether showcasing advertisements, brand campaigns, or creative digital experiences, it delivers consistent image quality that makes every presentation more engaging and visually impactful.
YUCHIP: Your Reliable Holographic LED Display Partner
Every project is different, and choosing the right holographic LED display involves more than selecting a pixel pitch. Installation methods, display size, viewing distance, brightness requirements, and the surrounding environment all influence the final result. At YUCHIP, we work closely with customers to recommend the most suitable InviAir solution based on their project goals, helping ensure a balance between visual performance, installation efficiency, and long-term reliability.
From standard window displays to suspended installations and mobile digital poster solutions, our team provides customized recommendations, technical support, and manufacturing expertise throughout the project. Whether you are planning a retail display, exhibition, showroom, or creative branding installation, we are ready to help you build a solution that fits your application.
If you have any questions or project requirements, our team is here to help. Contact us to discuss your ideas and receive a tailored solution for your business.
Designed for High-Impact Commercial Applications
Parameters
InviAir Holographic LED Screen Specifications
Choosing the right holographic LED display requires more than selecting a pixel pitch. Transparency, display thickness, brightness, installation method, and viewing distance all play an important role in achieving the desired visual effect. The technical specifications below provide a detailed comparison of the available models, helping you identify the configuration that best fits your project and application requirements.
| Pixel Pitch (PH) | P2.5 | P3.91 | P5 | P6.25 |
| Film Thickness (mm) | 2 | |||
| Transparency | ＞60% | ＞75% | ＞80% | ＞85% |
| Pixel Type | SMD1010 | SMD2020 | SMD2020 | SMD2020 |
| Product Size (mm*mm) | 1500*250/ 1200*250/ 1500*160/ 1200*160 | 1500*250/ 1200*250 | 1500*250/ 1200*250 | 1500*250/ 1200*250 |
| Pixel Density (pixel/㎡) | 160000 | 65536 | 40000 | 25600 |
| Brightness (nits) | 800-2000 | 800-2000 | 800-2000 | 800-4500 |
| Visible Distance (m) | 3 | 4 | 5 | 7 |
| Max Consumption (w/㎡) | 600 | |||
| Ave Consumption (w/㎡) | 200 | |||
| Cabinet Weight (kg/㎡) | 3 | |||
| Maintenance | Rear | |||
| Frame Change Frequency | 60Hz | |||
| IP Level | IP45 | |||
| Color Contrast Ratio | 5000:1 | |||
| Gray Grade | 16 bit | |||
| Refresh Frequency (Hz) | 3840 | |||
| Viewing Angle (V/H) | 160°/ 140° | |||
| Working Voltage | AC50Hz / 220V±10% | |||
| Working Temperature (℃) | -10℃～+65℃ | |||
| Operation Humidity (RH) | 10～90% | |||
| Display Lifetime (hours) | 100,000 | |||

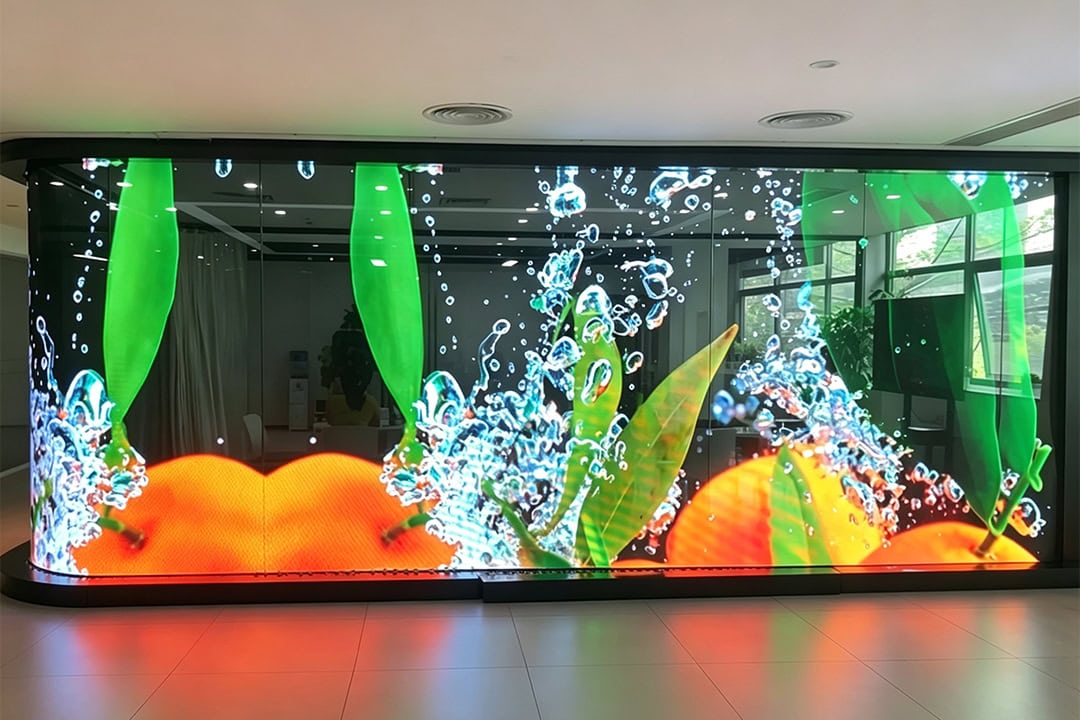

Customer Cases
FAQs
1.What is the difference between a holographic LED screen and an LED film screen?
Although these two products are often confused, they are designed for different purposes.
An LED film screen is primarily developed for direct installation on glass, focusing on maintaining maximum transparency while adding digital display capabilities to windows and glass facades.
A holographic LED screen, such as the InviAir Series, is designed to create visually striking digital experiences with minimal visual interference from the display itself. In addition to glass-mounted installations, it can also be configured as suspended displays or mobile digital posters, making it suitable for a wider range of commercial display solutions.
| Feature | Holographic LED Screen | LED Film Screen |
| Primary Purpose | Immersive visual presentation | Transparent glass integration |
| Typical Installation | Glass, suspended, mobile display | Directly bonded to glass |
| Main Advantage | High visual impact | High transparency |
| Best For | Retail displays, exhibitions, branding | Glass facades, storefront windows |
Neither technology is universally better. The right choice depends on your installation method, visual goals, and project requirements.
2.How is a holographic LED screen different from a conventional transparent LED display?
Traditional transparent LED screens typically use aluminum cabinets or frame structures that remain visible even during operation. They are commonly selected for large glass facades and architectural media displays where transparency is a primary requirement. You can explore our transparent LED screen solutions for projects where high transparency and architectural integration are the main priorities.
The InviAir Series takes a different approach. Rather than focusing solely on transparency, it is designed to create immersive holographic visual effects with an ultra-thin, lightweight display structure. The emphasis is on delivering eye-catching digital content while keeping the display itself as visually unobtrusive as possible.
3.Is the InviAir Series installed only on glass?
No. While glass window installations are one of the most popular applications, the InviAir Series is not limited to glass-mounted projects. Depending on the installation requirements, it can also be configured as suspended displays or integrated into mobile digital poster solutions.
This flexibility allows the same display technology to be adapted for retail stores, exhibitions, showrooms, promotional events, and many other commercial applications.
4.Can the display be customized for different project sizes?
Yes. The InviAir Series supports customized dimensions to accommodate different installation requirements. The display can be manufactured in various sizes and configured with different pixel pitches to suit viewing distance, display area, and project objectives.
If your project has unique design or installation requirements, our engineering team can recommend the most appropriate configuration based on your application.
5.Can the display be used on curved surfaces?
Yes, within reasonable design limits.
The flexible display structure is suitable for flat surfaces, gentle curves, and customized installation layouts. However, it is not intended for extremely tight bending radii or sharply folded installations.
If your project includes curved architectural elements, our team can evaluate the installation requirements and recommend the most suitable solution.
6.What is the difference between the 2 mm display thickness and the overall installation depth?
The 2 mm specification refers to the thickness of the display film itself, which is the visible display layer installed on the surface.
The overall installation depth includes additional components such as the power box, cables, and mounting accessories required for system operation. As a result, the total installed depth is greater than the display film thickness alone.
Understanding this distinction helps ensure accurate planning during project design and installation.

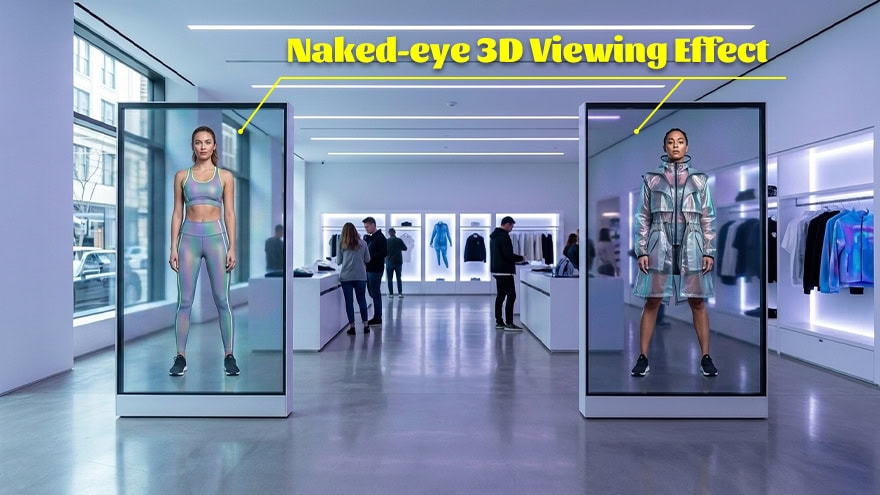

7.Can the InviAir Series create naked-eye 3D effects?
Yes, but the visual effect depends on both the display and the content.
The InviAir Series provides the display performance needed for holographic presentations, including high contrast, smooth playback, and stable image quality. However, convincing naked-eye 3D effects also require professionally designed content and appropriate viewing angles.
When these elements are combined, the display can produce impressive three-dimensional visual experiences that attract attention and enhance audience engagement. For projects specifically focused on 3D visual experiences, you can also explore our 3D LED display solutions.
8.How do I choose the right pixel pitch for my project?
The ideal pixel pitch depends on the viewing distance, installation environment, and content requirements.
Generally, P2.5 is suitable for closer viewing distances where higher image detail is required, while P3.91, P5, and P6.25 are better suited for larger displays or installations viewed from farther away.
If you are unsure which pixel pitch best fits your project, our team can recommend the most suitable option based on your display size, viewing distance, and application requirements.
