How To Repair A Transparent LED Screen: A Comprehensive Guide For Technical Experts



As a technical expert in digital displays, you will likely encounter the increasingly popular transparent LED screens. These innovative displays are known for their high resolution, energy efficiency, and striking visual appeal. However, like any advanced technology, transparent LED screens can experience technical issues that require expert knowledge to address repair.

Transparent LED Screen Repair

Being well-equipped with the necessary skills to troubleshoot and repair these screens is essential for maintaining their optimal performance and extending their lifespan.

This comprehensive guide will walk you through repairing a transparent LED screen, focusing on the essential tools, techniques, and precautions you’ll need to diagnose and resolve various issues effectively. This guide is designed for technical experts seeking to expand their knowledge and skills in transparent LED screen repair.

Please note that this guide is intended for technical experts and professionals. If you’re not experienced in repairing transparent LED screens, it’s recommended to contact the manufacturer or a certified technician for assistance.

Essential Tools For Repairing A Transparent LED Screen

Before diving into the repair process, let’s first discuss the essential tools and their specifications needed for repairing a transparent LED screen:

Soldering Iron

  1. Soldering iron. Soldering iron with adjustable temperature control (range: 200-480°C or 392-896°F) and interchangeable tips for precision soldering and desoldering of components.

  2. Hot air rework station. A hot air rework station with adjustable temperature (100-450°C or 212-842°F) and airflow control for safely desoldering and soldering SMD components like driver ICs.

  3. Solder wire. For reliable connections, a high-quality lead-free solder wire with a suitable diameter (e.g., 0.5mm) and melting point (e.g., 217-220°C or 422-428°F).

  4. Desoldering braid/wick. A desoldering braid or wick for efficiently removing excess solder from the PCB.

  5. Tweezers. Precision tweezers (preferably ESD-safe) for handling small components like LEDs and driver ICs.

  6. Magnifying glass or microscope. A magnifying glass or digital microscope for close inspection and accurate soldering.

  7. Multimeter. A digital multimeter for measuring voltage, current, resistance, and continuity to diagnose electrical issues.

  8. Screwdriver set. A set of screwdrivers, including various sizes of Phillips and flathead, to disassemble and reassemble the screen components.

  9. ESD wrist strap. An ESD (electrostatic discharge) wrist strap to prevent damage to sensitive electronic components due to static electricity.


Now that you have the essential tools. In certain situations, specific components of a transparent LED screen may need replacement, such as LEDs, driver ICs, or other members.

Steps To Repair Various Issues In A Transparent LED Screen

Here, we’ll discuss the indicators for replacement and detailed steps to replace these components. Follow these steps to repair various issues in a transparent LED screen:

Step 1: Diagnose the problem.

Identify the issue with the transparent LED screen, such as dead pixels, malfunctioning LEDs, faulty driver ICs, power supply problems, or connectivity issues.

Step 2: Power off and disconnect.

Ensure the screen is powered off and disconnected from all power sources and devices to prevent potential hazards and accidents during the repair process.

Transparent LED Display Repair

Step 3: Disassemble the screen.

Carefully disassemble the screen, removing the necessary components to access the area requiring repair. Keep track of all screws and parts, and store them safely to ensure easy reassembly.

Step 4: Troubleshoot and repair.

Based on the diagnosed issue, repair or replace the damaged components. This may involve:

A. Replacing Dead Or Malfunctioning LEDs

When to replace:

  •     The LED is dead or not emitting light.
  •     The LED is flickering or displaying incorrect colors.
  •     The LED is visibly damaged or burnt.

Steps to replace a broken LED:

  1. Identify the broken LED on the transparent LED screen.
  2. Power off and disconnect the screen from all power sources and devices.
  3. Disassemble the screen to access the LED module containing the broken LED.
  4. Using a soldering iron, carefully desolder the broken LED from the LED module, avoiding damage to surrounding components or circuit traces.
  5. Place a new, compatible LED in the same position as the removed LED, ensuring the correct orientation. Solder the new LED to the LED module, creating secure connections without overheating or damaging the component.
  6. Reassemble the screen, test the replaced LED, and document the repair process.
B. Replacing Faulty Driver ICs

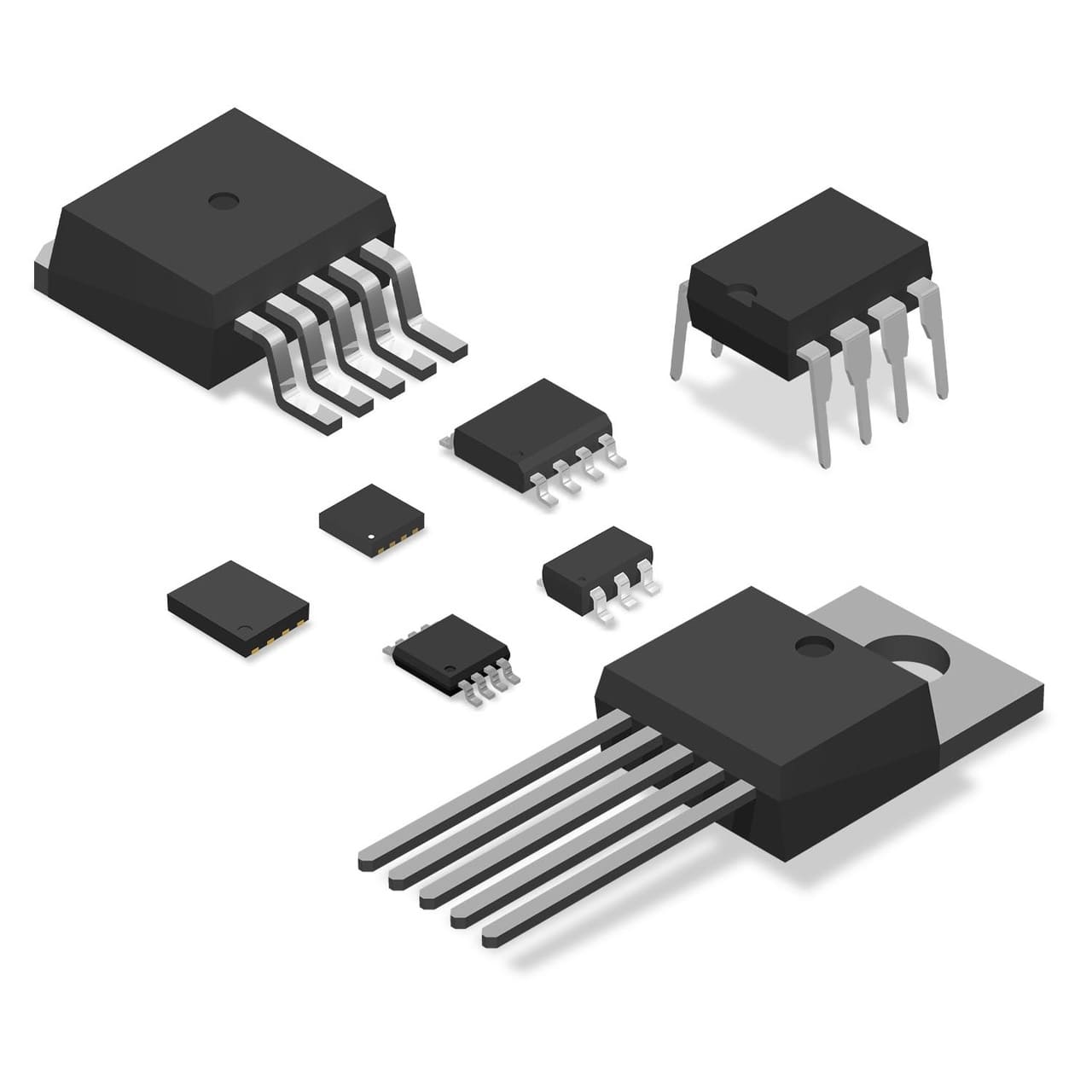

Driver IC

When to replace:

  •     Multiple LEDs connected to the same driver IC are malfunctioning.
  •     The driver’s IC is visibly damaged or burnt.
  •     Diagnostic tests indicate issues with the driver IC.

Steps to replace a faulty driver IC:

  1. Identify the defective driver IC on the transparent LED screen.
  2. Power off and disconnect the screen from all power sources and devices.
  3. Disassemble the screen to access the LED module containing the faulty driver IC.
  4. Using a hot air rework station or soldering iron, carefully desolder the faulty driver IC from the circuit board, avoiding damage to adjacent components or circuit traces.
  5. Place a new, compatible driver IC in the same position as the removed IC, ensuring the correct orientation. Also, solder the new driver IC to the LED module, creating secure connections without overheating or damaging the component.
  6. Reassemble the screen, test the replaced driver IC, and document the repair process.
  •     Soldering broken connections or wires
  •     Repairing or replacing damaged power supply components
  •     Fixing or replacing faulty control systems

Step 5: Test the screen.

Before reassembling the screen, power it on and test the repaired area to ensure the issue has been resolved. Furthermore, if the problem persists, reevaluate the diagnosis and perform additional repairs.

Step 6: Reassemble the screen.

Once the issue is resolved, carefully reassemble the screen, ensuring all components are securely connected and properly aligned.

Step 7: Perform a final test.

Power on the transparent LED screen and conduct a comprehensive test to ensure it functions correctly.

Step 8: Document the repair.

Document the repair process, including the issue diagnosed, parts replaced, and any additional steps taken. Also, this information can be valuable for future reference, warranty claims, or troubleshooting.

Conclusion

LED Screen Transparent Repair

In conclusion, repairing a transparent LED screen requires a thorough understanding of the components, the right tools, and a careful approach. By following the guidelines provided in this article, technical experts can address various issues and extend the lifespan of these innovative display solutions.

At YUCHIP, we have been proud to be a professional transparent LED screen manufacturer since 2004. Our extensive experience and commitment to quality have made us a trusted partner for numerous clients worldwide. We are always eager to share our knowledge and expertise on technical matters related to transparent LED screens. If you have any further questions or need assistance, please contact us. Above all, our dedicated team is happy to help you with any queries or support.

Remember, YUCHIP is your reliable partner for top-quality products and professional guidance regarding transparent LED screens.
