iX Series Rental LED Display
- The iX Series is a rental LED display that an LED screen enthusiast such as a businessman or event organizer must have. Its outstanding features and cost-effectiveness make it an excellent choice for different events.
- Whether you choose to have a fixed and rental or curved one, the device supports dual maintenance features easing your maintenance from time to time.
- Let YUCHIP be part of your project, and we’ll bring you the utmost rental LED display design and structure using the updated and latest technology.
iX Series Rental LED Display Product Categories
The iX Series contains all types of LED screen needs you may encounter in business, advertising, event organizing, and other purposes. The design of this rental LED display caters to fixed, rental, and curved use. With a more accessible maintenance design, you can quickly check on the device’s parts, maintain good performance, and promote the longevity of its service.
LED displays, especially rental LED displays, are often costly, so we want o give you something affordable for their high quality. While the device design is sturdy and reliable, it also has high brightness and high image quality, perfected with the latest structural design and image recalibration.
Should you seek a lightweight rental with an unprecedented view and high image quality? Here’s the rental iX series.

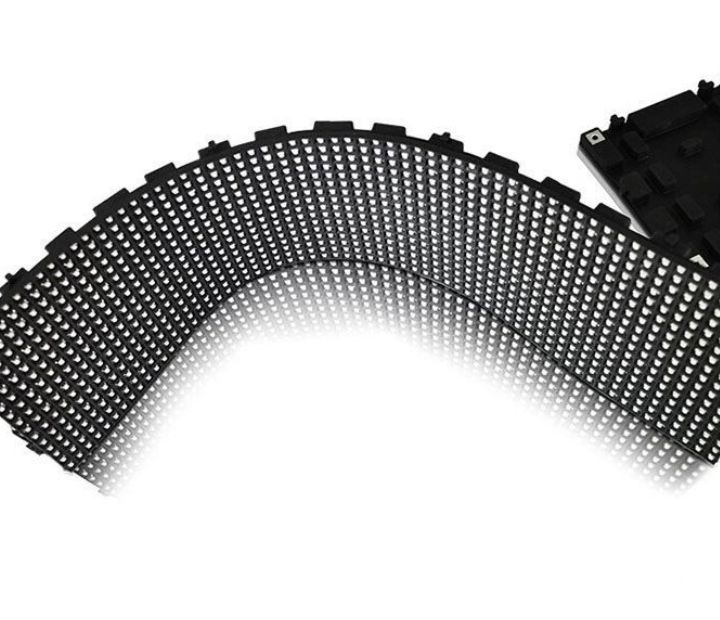

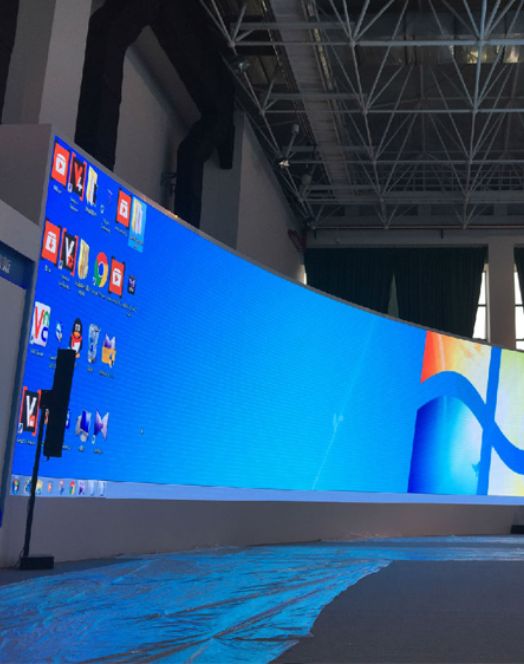

The curved iX series can help you with creative events. It exhibits high precision and seamless connection towards various angles and shapes.

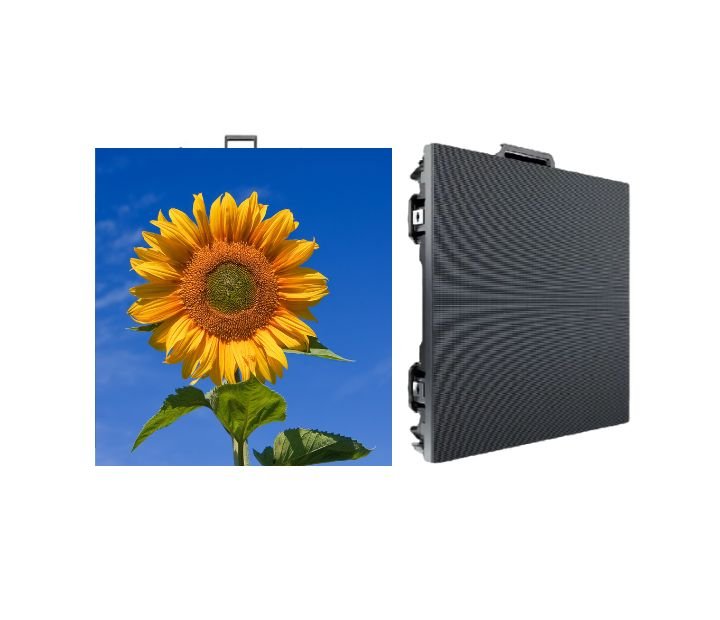

The fixed iX series supports complete front maintenance, so needless to worry about having the back part permanently attached to the wall.
YUCHIP: Your Highly-reliable iX Series Rental LED Display Supplier
The rental LED display is one of YUCHIP’s specialties in the market. The rental LED display, including the iX series, is among our most patronized products. Over two decades, our rental LED screen products have reached far countries in Europe, America, Asia, and Africa. Being utilized in different applications, our rental LED display is indeed rigid, reliable, and durable in design and quality.
YUCHIP makes sure to deliver new designs and take on improving the features of this product, so we give you a wide range of choices. Apart from the iX series, we also have the Z and hX series. Each series are characterized by distinguishing features, making them perfect for various applications. Should you need help, a quote, or other concern, please reach us at manager@yuchip.com.

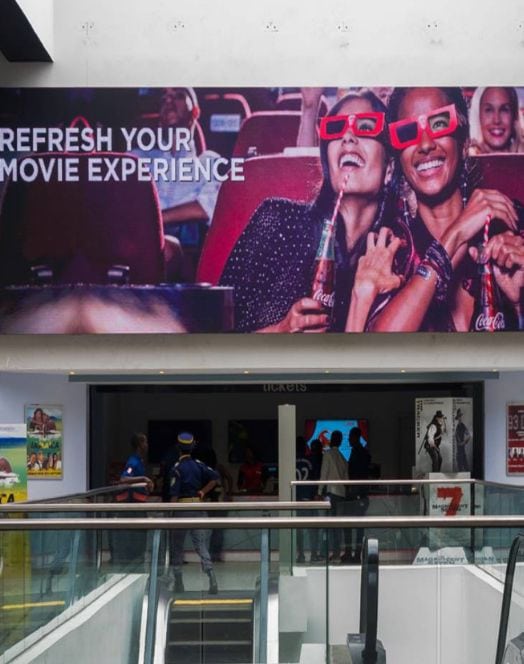

iX Series Rental LED Display Applications
- Our Factory
- Parameters
- iX Series Rental LED Display Latest Catalog
iX Series Rental LED Display Module Specification | |||||||
Pixel Pitch (mm) | 1.95 | 2.6 | 2.97 | 3.91 | 4.81 | ||
Pixel Configuration | SMD2121 | SMD2121 / SMD1921 | SMD1921 | ||||
Encapsulation | 3 in 1 | ||||||
Colors Matches | 6:3:1 | ||||||
Module Resolution (pixels) | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 | ||
Module Pixel (pixels) | 16384 | 9216 | 7056 | 4096 | 2704 | ||
Module Size (mm) | 250 x 250 | ||||||
iX Series Rental LED Display Cabinet Specification | |||||||
Cabinet Size (mm) | 500 x 500 | ||||||
Cabinet Resolution (pixels) | 256 x 256 | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 | ||
Cabinet Pixels (pixels) | 65536 | 36864 | 28224 | 16384 | 10816 | ||
Cabinet Material | Die casting aluminum | ||||||
Cabinet Weight (kg) | 7.5 | ||||||
iX Series Rental LED Display Screen Specification | |||||||
Pixel Density(pixel/m²) | 262144 | 147456 | 112896 | 65536 | 43264 | ||
Brightness(cd/m²) | ≥1000 | 1000 / 3500-4500 | 3500-4500 | ||||
Brightness Adjusted | 256 grade by software or by Auto-optic induced | ||||||
View Angle | Horizontal 140°; Vertical 140° | ||||||
Best Viewing Distance (m) | ≥ 2 | ≥ 2.5 | ≥ 3 | ≥ 4 | ≥ 5 | ||
Communication Distance(m) | <100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km | ||||||
Display Work Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan | |||
LED Driving Method | Constant driving current | ||||||
Color Contrast Ratio | 5000:1 | ||||||
Gray Grade | 16bit | ||||||
Display Color | 439, 804, 651, 110 | ||||||
Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | ||||||
Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | ||||||
Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc., through Video processor converting) | ||||||
System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP, WINDOWS 7, etc. | ||||||
Control System | Novastar, Linsn, LEDvision, LEDset | ||||||
Front/Rear IP Level | IP43 | ||||||
Working Temperature (ºc) | -20~+40 | ||||||
Stored Temperature (ºc) | -40~+80 | ||||||
Operation Humidity (RH) | 0-95% | ||||||
Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) | ||||||
Maintenance | Rear / Front side | ||||||
Working Voltage | AC110 / AC220V±10% 47~63HZ | ||||||
Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | ||||||
Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) |
