LED Curtain Display


LED Curtain Display’s brightness reaches up to 8000 nits in the daytime and drops to lower brightness automatically in the nighttime, converting a giant building surface into a vast media facade capable of playing text, animation, and videos.

LED Curtain Wall, perfect for outdoor installation, creates a meaningful view in buildings, outside vicinities of shopping malls, offices, establishments, hotels, and restaurants. With its waterproof feature, it can stand rain or shine weather conditions.

If you’re looking for an upgrade to your conventional display or want to make a clearer and digital atmosphere, a Flexible LED Video Curtain is your best option.




LED Curtain Display usage is widespread today. Among its standard installations are traffic display, creativity areas, shopping malls, hospitality such as hotels, casinos, nightclubs, bars, schools, transport areas such as airports, bus terminals, carports, and a lot more. Because of its increasing demand, YUCHIP keeps innovating the LED Curtain Display to upgrade its features, beautify, and be applied in all aspects.

LED Curtain Wall is the perfect large LED media facade!

  • Multiple Pixel Pitch

The LED Curtain Wall is entirely used as a large LED media facade.

YUCHIP Flexible LED Video Curtain provides a wide variety of pixel pitch range from P6.25, P8.33/P16.67, P1.67/P16.67, P20, P25 to P16.67/P33.3, etc.

Flexible LED Video Curtain makes it possible to create extraordinary illuminated figures on the building wall.

  • IP67 Waterproof Design

The uniquely designed LED mesh is IP67 waterproof, which guarantees its highly stable performance in coastal and icy areas.

YUCHIP Flexible LED Video Curtain brightness reaches up to 8000 nits in the daytime and drops to lower brightness automatically in the nighttime, converting a giant building surface into a vast media facade capable of playing text, animation, and videos.

  • Ultra-slim And Lightweight Design

LED Curtain Display makes the LED facade fit to any space and easy to install; LED cabinet size: 500(L) x 1000(H) x 50mm(T), cabinet weight: 7.8kg.

  • Ultra-transparency

Because of its translucent effect, you can barely see the objects behind the curtain display. So if you’re installing it outside of a store or a building, the LED Curtain Wall will not block the light, the view, and the overall sight.

  • Easy Maintenance

You can expect front maintenance service for fixed installation while hanging or the back and front space are both free; either of the two maintenance methods is valuable.

  •  Tests Certified

Like all our products exported to various countries, our LED Curtain Display undergoes a series of aging, display, and screen tests. It is to testify to the performance, stability, and reliability of the product before delivery. And that the product will highly benefit you and your business in the long run.

LED Curtain Display Module Specification

Pixel Pitch (mm)

8-16

16-1616-16

16-33

Pixel Configuration

SMD3535

DIP346

Encapsulation

3 in 1

1R1G1B

Colors Matches

6:3:1

Module Size (mm)

9.5 x 1000

10 x 1000

LED Curtain Display Cabinet Specification

Cabinet Size (mm)

500 x 1000

Cabinet Resolution (pixels)

30 x 120

30 x 6030 x 60

15 x 60

Cabinet Pixels (pixels)

3600

18001800

900

Cabinet Material

Extrusion Aluminum

Cabinet Weight (kg)

7.8

8.3

5.5

LED Curtain Display Screen Specification

Pixel Density(pixel/m²)

7200

36003600

1800

Brightness(cd/m²)

≥ 6500

≥ 6500≥ 7000

≥ 6500

Brightness Adjusted

256 grade by software or by Auto-optic induced

Light Transmittance

45%

45%40%

70%

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥ 8m

≥ 16m≥ 16m

≥ 25m

Communication Distance(m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/2 Scan

Static

Led Driving Method

Constant driving current

Color Contrast Ratio

5000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP65

Working Temperature (ºc)

-20~+40

Stored Temperature (ºc)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours  (ideal environment)

Maintenance

Rear Side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 450W/㎡ ; Ave:150W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)



(P10 LED Curtain Display)

LED Curtain: Ultimate FAQ Guide



1. What Is An LED Curtain?



An LED curtain is one of the newest and latest LED technologies that let you deliver an attractive digital visual display uniquely and extraordinary.

The LED curtains work as an architectural decoration in commercial buildings’ exterior appearance used for advertising and marketing purposes and building’s lighting design.

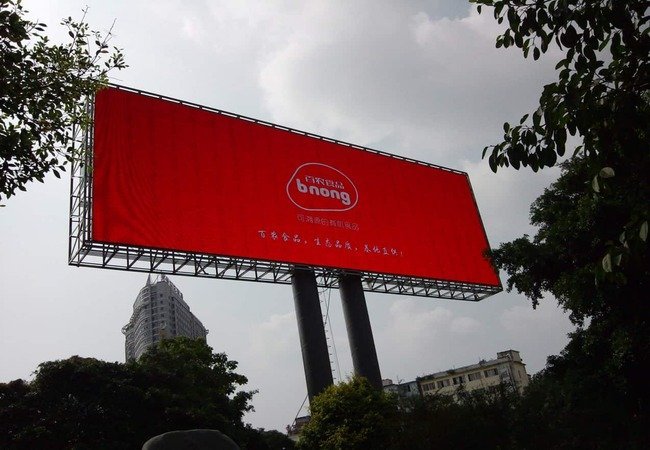

LED Curtain
LED Curtain

LED curtain displays have high flexibility and transparency, suitable for either indoor or outdoor applications. And, it is easy to install on almost any flat and curved surface.

Its unique appearance alone is already a selling point to most advertisers and businesses because the LED curtain displays have a more appealing outlook and design. It is beneficial and practical in delivering advertisements or your promotions to the audience.

Showcasing your captivating content to inform your target audience or increase your brand is made easy using a flexible LED video curtain display.

If you are searching for an LED display that is super lightweight, bendable, easy to use, and easy to install, the LED mesh display is the one for you.



2. What Makes An LED Curtain Unique?



At first glance, you can say that the flexible LED curtain display looks just like the other traditional LED display. However, LED curtains have distinct characteristics and can offer something that different LED screens cannot provide.

Transparent Appearance.  Depending on its pixel pitch, the LED curtains are 35 – 70 percent transparent. Unlike the traditional LED wall displays, you can see through the mesh LED screens.

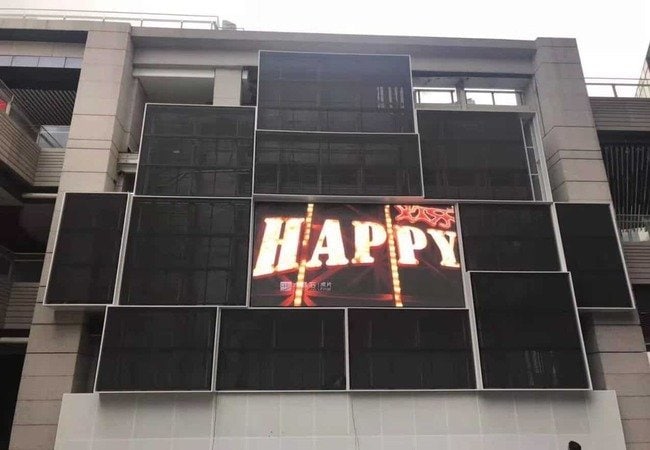

LED Mesh Display
LED Mesh Display

Super Slim Design. Curtain LED displays to have an extra slim structure. A P25 outdoor LED curtain, for example, has only a structure thickness of 82mm. LED mesh displays do not require too many steel structures.

Soft Flexible Screen. The unique thing about the LED curtain display is its ability to bend, fold, or roll. That is why it is easy to use or mount on curved surfaces of the building.

Super Lightweight Structure. LED curtain screen panels are also lighter than standard LED screen panels. A 1200mm by 1200mm P25 outdoor LED curtain screen panel only weighs 25 kilograms. Because of its lightness, the degree of difficulty in installing such a digital display is reduced.



3. What Is Media Façade Technology?



The media facade is one of the recent developments in LED lighting technology. It involves a seamless integration of LED mesh screens into the outside surface of the tower.

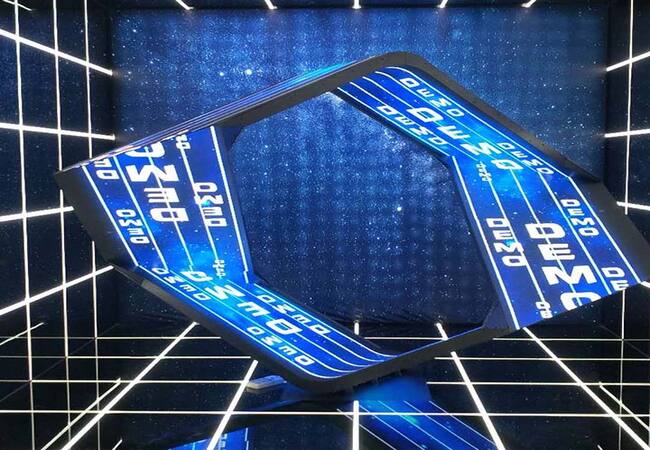

Soft LED Curtain Display
Soft LED Curtain Display

Media Facade Technology is the layering of lights that control separately. They are attached to the exterior surface of buildings and other establishments used to display dynamic text, images, visual displays, graphics, and video animations.

Media facade technology is making its way into both the architecture world and the commercial or marketing industry. More and more buildings are now utilizing lighting technology to build a lively appearance and attract an audience or visitors.

This technology enhances both the beauty and functionality of your building’s facade. It gives your facility the ability to speak or communicate with an audience and give them a remarkable visual experience.

You can use a media facade to interact with your audience outside your building’s premises. You can use it to display images and any visual effects or use it to highlight the unique architectural features of your building’s structure.

With media facade lighting, you can turn your building into a landmark that gives light and life to the city’s skyline.



4. What Is The Difference Between A Standard LED Screen And A Mesh LED Screen?



Both flexible LED curtains and the regular LED wall displays let you showcase your dynamic multimedia content in a remarkable way to a wide range of audiences. However, the LED curtain display has some unique qualities that the regular LED display cannot bring to the table.

  1. Mesh LED display has a transparent appearance that adapts easily to any environment or location. As you know already, the regular LED display has a solid look. The curtain display has three display LED strips in a single unit.
  2. The soft LED curtain display is bendable. This feature makes it easy to adjust to any surface. For this reason, it makes the LED curtain display an ideal digital screen for buildings with curved exterior designs.
  3. The flexible LED curtain wall offers less wind load. Since the LED curtain has mesh quality, it reduces the substantial wind drag. It has increased ventilation by up to 50% more than the regular LED wall display because the air can transmit through the LED screen’s body.
  4. The LED mesh is lighter and thinner than the traditional LED screens. And since they have light cabinets and slim designs, they are easier to lift, set up, transport, and dismantle.



5. Is An LED Curtain Wall Suitable For Both Indoor And Outdoor Use?



LED curtain walls are commonly applied for outdoor locations since they are ideally attached to the building’s exterior.

The LED mesh LED screens are permeable to sunlight. They have a 40 to 80 percent light transmission rate. So, when they are attached to the building’s exterior part, they will not block the sunlight. The inside building can still receive adequate sunlight.

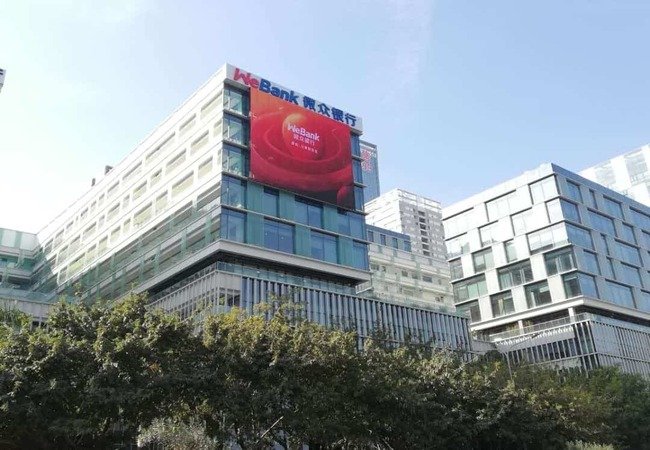

LED Media Facade
LED Media Facade

Outdoor LED curtain displays are more resistant to the strong wind; hence, they can install in high places. Unlike the regular LED display, which has a low wing permeability, LED curtain displays are a better match for many.

Additionally, most LED curtain displays are manufactured with higher dot pixels. As you may already know, when an LED screen has a high pixel, it is best viewed from an afar distant location.

If you wish to have an LED display in a close area with a close viewing distance, it is more recommended to have the traditional LED screens. It will give more justice to your content as most traditional LED display screens are suited for close viewing.

But for large indoor venues, you can also rely on LED curtain displays. It can be used as a screen on stage or live video screen for far audiences.



6. What Benefits Can You Get From A Flexible LED Video Curtain?



LED curtain LED display has many advantages to offer to its users.

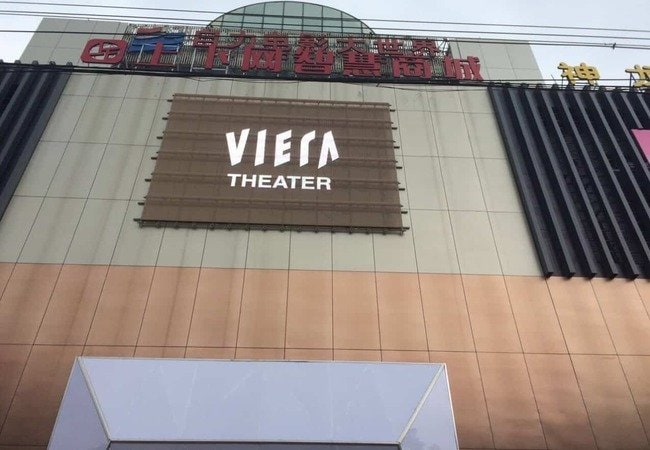

LED Curtain Wall
LED Curtain Wall
  1. Customizable To Various Shapes. One of the best things about LED mesh curtain wall displays is adapting to various surfaces. The LED curtain display can be designed to meet any requirement of your building’s exterior. Since they are soft and flexible, they are way less difficult to turn into different forms. They are bendable to fit any curved glass facade of any establishment.
  2. More Comfortable To Install And Fewer Installation Costs. Transparent LED curtain displays are easier to install because they are lighter and have thinner cabinets than traditional LED screens. Installing an LED curtain wall display is cheaper because it requires less personnel and special steel equipment to install.
  3. High Transparency And Wind Permeability. The LED media facade has high light and wind permeability. To put it simply, the light and the wind can still pass through your LED grip display. That means, if you would install it in your glass facade, your inside store or office will still receive sunlight. And because of its wind permeability, it increases its ventilation.
  4. Cost-efficient. LED curtain walls are built to last. They are low maintenance. They are cheaper to install, and it does not require additional air ventilation for the LED display to function efficiently.
  5. Perfect Light Quality. The LED curtain display gives excellent light quality. Its transparency allows natural light (both day and night) to appear on the LED curtain screen, displaying a more natural light display quality.



7. What Are The Different Applications Of Mesh Curtain LED Displays?



The LED curtain wall display is becoming more popular over the past few years. Aside from a sleek, modern look and high functionality, the LED mesh screens also offer a wide range of applications. It serves you as a user for many purposes that let you achieve your advertising, commercial, or architecture goals.

The LED mesh, flexible curtain screen is usually used as:

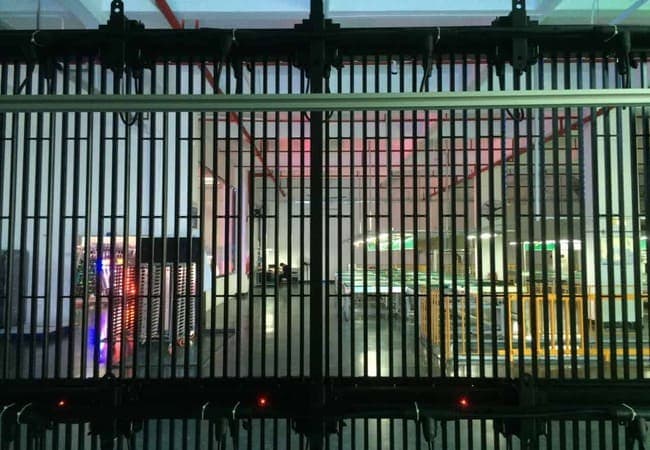

LED Curtain Display
LED Curtain Display
  1. Advertising Digital Screen. Like the traditional LED screen, the flexible curtain screen can effectively deliver your message to your target audience. LED curtain wall allows you to communicate information, promotions, or content in an entertaining, colorful, attention-grabbing, and engaging way. They are commonly attached to tall buildings or poles because it is ideal for long-distance viewing.
  2. Building Wall, Window, Facade. The LED curtain walls are so thin and light they are easy to mount on buildings’ exteriors. Many public and private offices make use of mesh screens for various purposes. It can be used to display business-related content such as the company’s name, company’s logo, company’s message, etc.

This is also applied to stores, banks, restaurants, casinos, clubs, bars, etc.

  1. Lighting Design Project. Many grand establishments use LED display light strips or grid displays to make their building life, especially at night. LED media facade makes any building more notable. It may be used to entertain the guests or audience, make a statement, or highlight the building’s architectural design’s unique details.
  2. Interior Decoration. Many big establishments like Shopping centers and exhibition halls also utilize LED mesh screens as decorations to glass walls. LED curtain walls allow you to connect with your audience, interact with them, and entertain them with a beautiful and captivating display. A beautiful, modernized, and tech-savvy interior design gives you an edge over your competition.



8. Are LED Curtain Walls Scalable And Customizable To Any Size?



Yes, LED curtain wall displays are scalable to various sizes suitable for your requirements and needs. You can have it in any size that pleases you.

The size and shape of LED curtain wall displays are highly customizable according to every customer’s specific measurements like you.

You can heavily rely on the LED curtain displays if you need large-scale flexible LED wall screens for outdoor use.

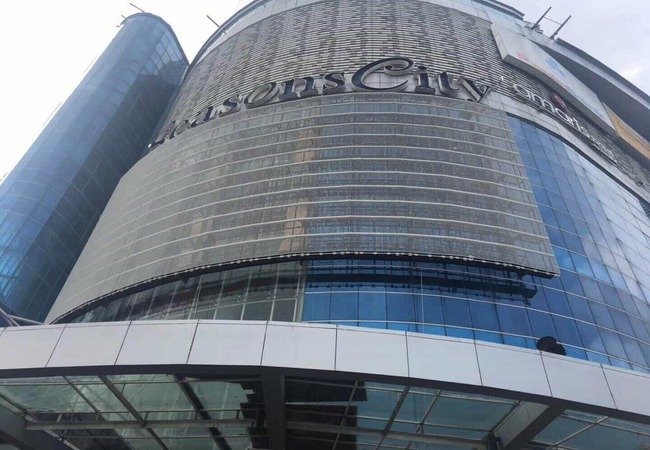

LED Curtain Wall Display
LED Curtain Wall Display

Its unique traits and capabilities are constructed to make it one hundred percent suitable for outdoor locations. They are usually used as glass facade wall displays or mounted on different establishments’ exterior surfaces.

LED mesh curtain display can fulfill the function of advertising screens, lighting devices, and decorative walls or windows.

If you need to turn your storefront, office window, building glass facade, or you need a flexible outdoor LED mesh screen, you can count on us.

We custom make LED curtain wall screens according to the specifications you need. All you have to do is to contact us through our email or website. You can find our contact information on our website as well.

We are looking forward to providing you with high-quality LED mesh curtain screens that are suitable for you.



9. Is There An App Or Software To Control Your LED Curtain Wall Display?



Yes, we will provide you with a downloadable app or software that will allow you to manage your LED curtain wall display.

Minus the advantages of a flexible LED mesh screen, it works the same as the ordinary LED screen. The LED curtain display can control in both asynchronous and asynchronous manner. It supports wired and wireless connections such as Wi-Fi, 4g connection, hotspots, etc. It also has many input sources like VGA, HMDI, DVI, and so on.

It allows you to display various multimedia files from text to audiovisual content. The LED curtain wall supports all significant types of file formats. You can use your electronic devices or computer to manage and operate your mesh screen. You can also save your pre-made media content in a USB flash drive and enjoy the convenience of ‘plug and play.’

If you would avail of our products and services for your next LED curtain wall display project, we will teach you all the ways how you can operate and manage your LED mesh curtain wall. We will help you maximize the use of your quality LED curtain screen. We will provide you with all the necessary tools and software you will need. We already have it all for you.



10. What Are Some Tips For LED Mesh Display Content Creation?



LED curtain wall displays are instrumental in communicating with your target market and potential customers. However, without proper and creative content to display, you will not get the result you expect.

Read these tips for LED curtain wall display content creation:

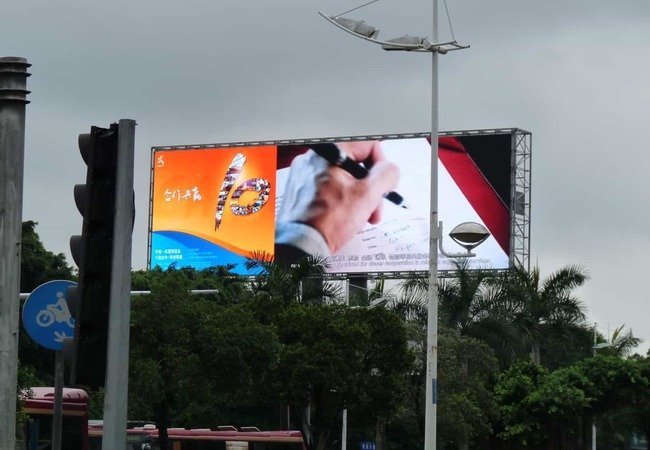

LED Curtain Screen
LED Curtain Screen
  1. Be mindful of the duration of your video presentations. You have to keep your motion picture as short as possible because your audiences are in motion as well. As much as possible, keep your ad content as fast as 10 to 15 seconds. This is applicable if you plan to have it continuously displaying the same contents throughout the day.
  2. Change your LED curtain wall display every day. As much as you can, keep your display content fresh. Repetitive contents tend to be ignored after some time. Have new, relevant, and related content frequently to increase eye traffic from the audience. Keeping your content fresh will also keep your audience interest to keep looking at your curtain wall display.
  3. Make sure that you format your file to an aspect ratio matched to your screen resolution. Making your file resolution way higher than your LED curtain wall display will not make your images clearer or have higher quality. For example, if your mesh LED wall is 16:9, you can format your files at 1280 by 720 and 1920 by 1080.
  4. Use motion graphics. Moving images can draw more attention than static pictures. Whenever possible and needed, use animation effects and visual graphics to make your display more captivating.
  5. Keep your message short and simple. Do not bombard your audience with long text or crowded screens. Again, your audience’s attention span is short, so make sure they will get the sense of your ad content within the first few seconds of looking at it.



11. How To Choose The Right Flexible LED Mesh Screen For You?



To guide you on choosing the right LED mesh screen for you, you must review the following information listed below.

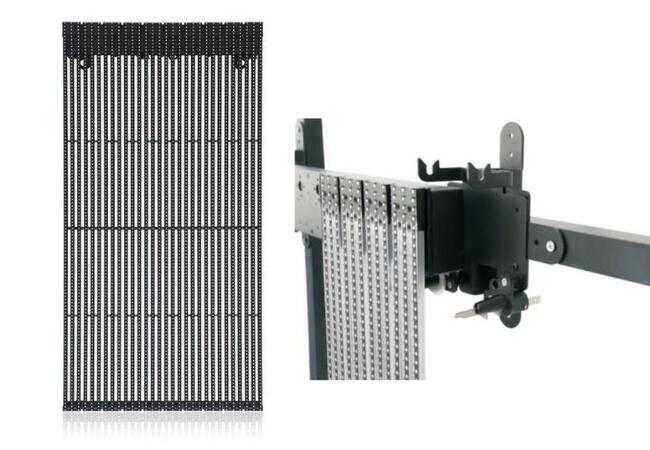

Transparent LED Curtain Display
Transparent LED Curtain Display
  1. Size does matter. Determine the screen size that is fitting to what you need. Identify first where you would install your mesh LED screen. The location or place will dictate the appropriate screen size that you need to buy.
  2. Audience’s Viewing Distance. It is equally significant to determine the distance of your audience to your soon-to-install LED curtain wall. It will tell you the proper resolution needed for your LED curtain wall display.
  3. Pixel Value. Another essential consideration to think about is screen pixel and resolution. As you may already know, a higher pixel is suitable for long-distance viewing. For example, a P25 LED curtain display has the best viewing distance of 25 meters to 250 meters.
  4. Control Cards. Be sure that your flexible LED video curtain display supports the control method that you prefer. If you think you will need to update your displayed content daily, go for the synchronous control card. Otherwise, the asynchronous one is fine for scheduled content.



12. What Can I Expect From YUCHIP LED Curtain Screens?



For your LED mesh screen or mesh facade needs, you can count on us. We give you LED curtain wall display products and services that meet international standards.

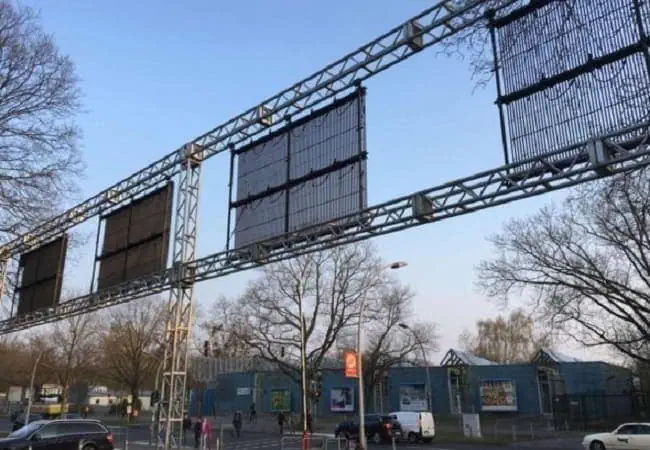

Mesh Curtain LED Display
Mesh Curtain LED Display

By choosing YUCHIP as your number one LED mesh screen provider, we can guarantee you to enjoy these benefits:

  1. Top tier, High-Quality Products. All of our LED products and screens are carefully created using only high-quality materials. We prioritize the quality of our products more than anything else. Our LED products, including the LED mesh screens, undergo strict screening and tests to ensure they will give you excellent performance.
  2. Customized and Personalized Services. Our LED curtain wall displays are made to order according to our customer’s specifications. We offer customized and personalized LED solutions to every client to meet your special LED needs.
  3. Reasonable Price. Our LED curtain display price is very affordable. You may contact us and request a quote.

Feel free to send us a message for any inquiries.
