BD Series Transparent LED Mesh Display
- Pixel pitch options: 15.625 / 20.83 / 25 / 31.25 mm
- Ultra-lightweight design: 3.2 kg/m², 17 mm thickness
- Up to 79% transparency for glass facade installations
Key Design Advantages of the BD Series LED Mesh Display
The BD Series LED mesh display is designed to meet the needs of modern architectural media facades and large-scale outdoor LED installations. Unlike traditional LED screens, this mesh display combines high transparency, lightweight structure, and flexible installation to deliver impactful visuals without compromising building aesthetics.
Its open-grid design allows natural light and airflow to pass through the screen, making it suitable for glass curtain walls and large building facades. At the same time, the lightweight structure reduces installation complexity and structural load. These advantages make the BD Series an ideal solution for projects that require large display areas, minimal visual obstruction, and efficient installation.
The open-grid LED mesh structure delivers transparency of up to 79%, allowing natural light and airflow to pass through the display. This design maintains the building’s appearance while enabling large-scale digital media facades.
The lightweight cabinet structure significantly reduces the overall load of the LED installation. This allows the screen to cover large building surfaces while minimizing structural requirements and installation difficulty.
Flexible cable connections allow the LED mesh modules to be easily expanded and customized. This design makes it possible to build large displays for architectural facades, ceilings, and creative installations.
Ultra High Transparency up to 79%
The open-grid structure allows the LED mesh screen to achieve transparency of up to 79%, letting natural light and airflow pass through the display. This means you can install a large digital facade on glass curtain walls or building exteriors without blocking daylight or the view from inside the building. Your architecture keeps its original appearance while gaining a powerful media display surface.

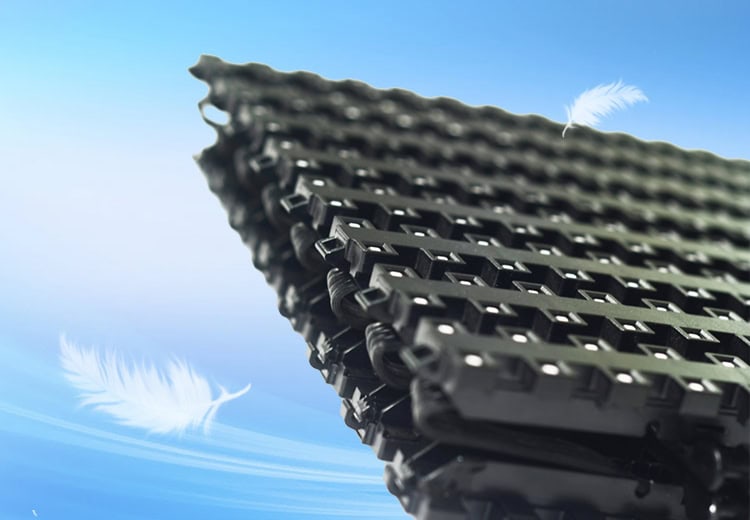

Ultra Lightweight Structure for Large Buildings
With a weight of only 3.2 kg/m² and a thickness of 17 mm, this architectural LED mesh display places minimal load on building structures. For you, this means easier installation on high-rise facades and large surfaces without requiring heavy steel structures or complex reinforcement, helping reduce installation cost and project complexity.
Flexible Modular Design for Custom Sizes
The flexible cable connection system allows each LED mesh module to be easily connected and extended. You can build displays that match the exact size and shape of your building facade, canopy, or stage background. This flexibility makes it much easier to create large custom media facades without being limited by standard cabinet sizes.
Quick Clip-Lock Installation Design
The quick clip-lock system allows each LED module to be securely connected with precise and consistent spacing. This makes installation faster and ensures the LED mesh screen remains flat and well aligned. For your project, this means shorter installation time, fewer manual adjustments, and more efficient setup, especially when building large architectural LED displays.
IP67 Waterproof Outdoor Performance
Each module is protected with engineering-grade PC housing and PU waterproof sealing, giving the outdoor LED mesh display an IP67 protection rating. This allows your display to operate reliably in rain, dust, and challenging outdoor environments, ensuring stable performance for long-term building facade installations.
High Refresh Rate for Smooth Visual Performance
With a refresh rate of 3840Hz and a frame rate of 60Hz, this transparent mesh LED screen delivers smooth video playback and stable image performance. You benefit from clear visuals without flicker or scan lines, even when the screen is filmed by cameras during events, advertisements, or media broadcasts.
Energy Efficient and Long Lifespan
The LED mesh display system is designed for low power consumption and efficient heat dissipation. It means lower energy costs, reduced heat buildup, and slower LED degradation, helping extend the overall lifespan of the display while minimizing maintenance needs.
YUCHIP: Your Reliable LED Mesh Display Manufacturer
Large architectural LED projects require more than just a display with good image quality. When installing an LED mesh display on building facades or glass curtain walls, factors such as transparency, structural load, installation efficiency, and long-term reliability become equally important.
The BD Series LED mesh screen is designed specifically for these large-scale outdoor applications. Its lightweight mesh structure, flexible connection system, and durable waterproof design make it easier for you to install large displays while maintaining building aesthetics and natural lighting.
With years of experience in building facade LED display projects, YUCHIP helps you select the right pixel pitch, screen size, and installation solution. Whether your project involves a media facade, glass curtain wall display, or creative architectural installation, our team can provide a reliable and customized LED mesh display solution.
BD Series LED Mesh Display For Various Applications
Detailed Discovery
Explore Videos
Parameters
BD Series Transparent LED Mesh Display Specifications
Before selecting the right LED mesh display for your project, it is important to review the key technical specifications. Factors such as pixel pitch, transparency, weight, and protection level can affect installation, viewing distance, and overall performance.
Below are the main specifications of the BD Series LED mesh display, designed for large architectural media facades and outdoor installations.
BD Series LED Mesh Display Specifications | ||||||
| Pixel Pitch | 15.625 | 15.625 | 20.83 | 25 | 25 | 31.25 |
| Pixel Density | 4096 pixels/m² | 4096 pixels/m² | 2304 pixels/m² | 1600 pixels/m² | 1600 pixels/m² | 1024 pixels/m² |
| Scan Mode | 1/8 | Static | Static | 1/5 | Static | Static |
| Brightness | 2000cd/m² | 6000–15000cd/m² | 10000cd/m² | 2500cd/m² | 6000–12000cd/m² | 1000–8000cd/m² |
| Transparency | 55% | 55% | 62% | 70% | 70% | 79% |
| Max Power | 150W | 240–600W | 500W | 100W | 240–480W | 40–300W |
| Weight | 6.4kg/m² | 6.4kg/m² | 4.8kg/m² | 4kg/m² | 4kg/m² | 3.2kg/m² |
| Max Unit Resolution | 512×16 | 256×16 | 240×12 | 512×10 | 240×10 | 512×8 |
| Max Unit Size | 8×0.25m | 4×0.25m | 5×0.25m | 12.5×0.25m | 6×0.25m | 16×0.25m |
| Best Viewing Distance | 15m | 15m | 21m | 25m | 25m | 31m |
| LED Type | SMD2727 | |||||
| Viewing Angle | 120° | |||||
| LED Configuration | 1RGB | |||||
| Grayscale | 16bit | |||||
| Frame Rate | 60FPS | |||||
| Refresh Rate | 3840Hz | |||||
| Waterproof Level | IP67 | |||||
| Input Voltage | DC5V/24V | |||||
| Lifespan | ≥ 50,000H | |||||
| Flammability Rating | V0 | |||||
LED Mesh Display vs LED Grille Screen
Each technology offers different structural advantages depending on the building design and installation requirements.
| Feature | BD Series LED Mesh Display | BG Series LED Grille Screen |
| Structure | Mesh-style LED structure | Horizontal LED strip structure |
| Transparency | High transparency mesh design | Up to 74% transparency |
| Best Applications | Glass curtain walls and building facades | Large building facades and high-rise media displays |
If your project requires a flexible and lightweight mesh display structure, the BD Series LED mesh display is a great choice.
For large building installations that benefit from long LED strips and grille-style structures, you may also explore the BG Series LED grille screen.
Customer Cases
BD Series LED Mesh Display FAQs
1.What is an LED mesh display?
An LED mesh display is a type of transparent LED screen made of lightweight LED strips connected by cables or frames. The open structure allows light and air to pass through, making it ideal for large building facades, glass curtain walls, and architectural media displays.
Compared with traditional LED screens, mesh displays are lighter, more transparent, and easier to install on large structures without blocking the building’s appearance.
Want to know more about LED screen for building facade? Check our building facade LED screen page.
2.What brightness levels are available for the BD Series LED mesh display?
The brightness of the BD Series depends on the pixel pitch and project requirements.
For example, a P31.25 LED mesh screen typically supports brightness from about 1,000 to 8,000 cd/m². Higher brightness levels can also be customized if required.
In most architectural applications, extremely high brightness is not necessary because the screen is often used at night for media facade lighting effects, and the standard brightness is already clearly visible even during the daytime.
3.Will the screen look different when viewed from different angles?
No. The BD Series uses a mirror-arranged LED lamp layout, where the LED beads are positioned symmetrically in multiple directions.
This design ensures that the display maintains consistent color and brightness when viewed from the front, sides, above, or below, which is especially important for large building installations where audiences may view the screen from different locations around the structure.
4.Can the LED mesh screen blend with the building when it is turned off?
Yes. The LED strip color can be customized to black or transparent, depending on the color and style of the building.
This allows the mesh LED display to blend naturally with glass facades or building structures. When the screen is not in use, it can visually integrate with the architecture rather than standing out like a traditional solid LED display.
5.How is the BD Series LED mesh display installed on glass building facades?
The installation system is designed to be stable while protecting the building structure.
- Top and bottom support frames are installed using customized steel structures. Steel cables are used to support the LED strips and carry most of the screen weight.
- Middle support structures are fixed near the glass seams using structural adhesive, which helps stabilize the screen and prevent movement caused by wind.
- The structural adhesive used in the installation can provide long-term durability of up to 50 years without damaging the glass curtain wall.
This method keeps the screen secure, stable, and visually clean without affecting the building appearance.
6.Where can LED mesh displays be used besides building facades?
Although mesh LED displays are commonly used for building media facades, they can also be applied in many creative installations, such as:
- Large outdoor advertising structures
- Landmark architecture lighting displays
- Theme parks and scenic area installations
- Stage or event background displays
- Creative installations such as LED “sails”on large ships
Because the screen structure is flexible and foldable, it can adapt to unique shapes and large structures.
→Looking for something similar but more flexible for creative architectural applications? Take a look at our BM Series Media Facade LED Display.
7.What is the typical lifespan of an LED mesh display?
A high-quality LED mesh display typically has a lifespan of over 100,000 hours, depending on usage conditions and maintenance.
The BD Series uses high-quality LEDs, durable structural materials, and outdoor-grade protection, ensuring reliable long-term operation for large architectural installations.
Still have questions about LED mesh displays?
Our team can help you choose the right solution for your building facade or large-scale media project.
→Contact Us Today for technical consultation and project support.
