EcoCOB Series Outdoor COB LED Display
- Fine Pitch: P1.56 & P1.95
- Flip Chip COB + Common Cathode
- Fixed & Rental Ready
Why Choose EcoCOB Outdoor COB LED Display?
EcoCOB is designed for premium outdoor LED applications where image quality, durability, and operating efficiency are equally important. By combining fine pixel pitch, Flip Chip COB technology, and a common cathode design, it delivers reliable performance for both fixed and rental installations.
Deliver exceptional image clarity in outdoor environments with P1.56 and P1.95 fine pixel pitches. EcoCOB is ideal for premium projects that require closer viewing distances and high-definition visual performance.
Flip Chip COB technology provides excellent protection against impact, dust, moisture, and static electricity. Combined with a common cathode design, it also improves heat dissipation and long-term operating stability.
The lightweight 500 × 500 mm die-casting aluminum cabinet supports fixed, curved, corner, and rental installations. Its robust structure and precision design make installation faster while ensuring excellent screen flatness.
Ultra-Fine Outdoor Image Quality
Bring premium visual performance to outdoor environments with P1.56 and P1.95 fine pixel pitches. EcoCOB enables shorter viewing distances and sharper image reproduction, making it ideal for luxury retail, transportation hubs, corporate buildings, and other high-end outdoor applications where conventional outdoor displays cannot deliver sufficient detail.
Built on a fine-pitch COB architecture, EcoCOB combines high pixel density with excellent color consistency to produce smooth, vivid images even in demanding outdoor conditions.

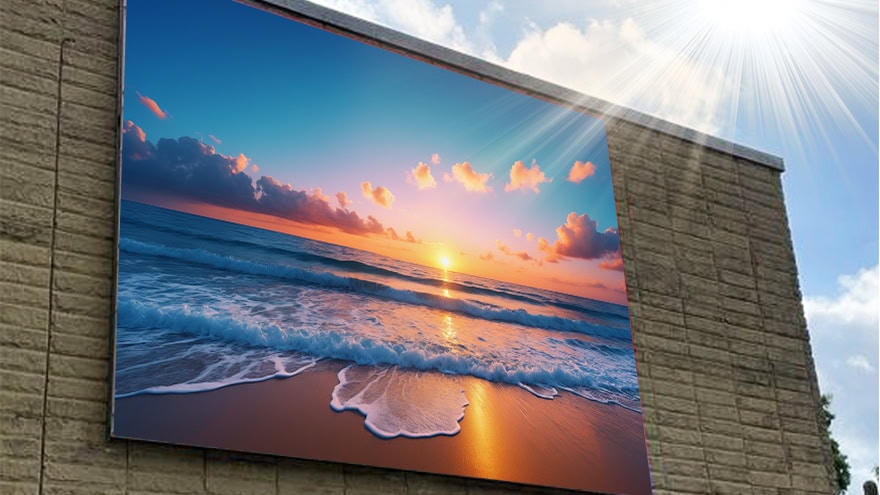

High Brightness Without Compromising Efficiency
Maintain outstanding visibility throughout the day while keeping operating costs under control. EcoCOB delivers the high brightness required for outdoor environments without the excessive heat and power consumption typically associated with high-brightness displays.
Its Flip Chip COB technology and common cathode architecture work together to improve luminous efficiency, reduce heat generation, and provide more stable long-term performance.

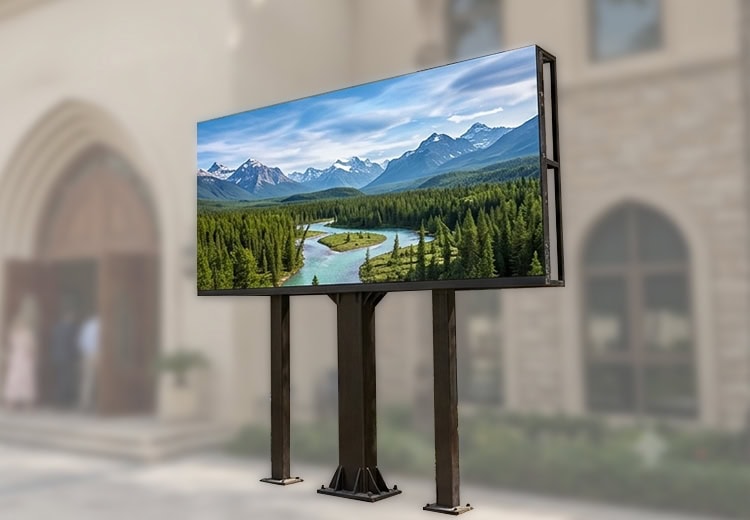

Flip Chip COB for Long-Term Outdoor Reliability
Outdoor LED displays are constantly exposed to impacts, dust, moisture, and changing weather conditions. EcoCOB is designed to withstand these challenges while reducing maintenance requirements and extending display lifespan.
Flip Chip COB technology fully encapsulates the LED chips, providing superior protection against physical damage, static electricity, dust, and moisture while significantly lowering the risk of dead pixels.

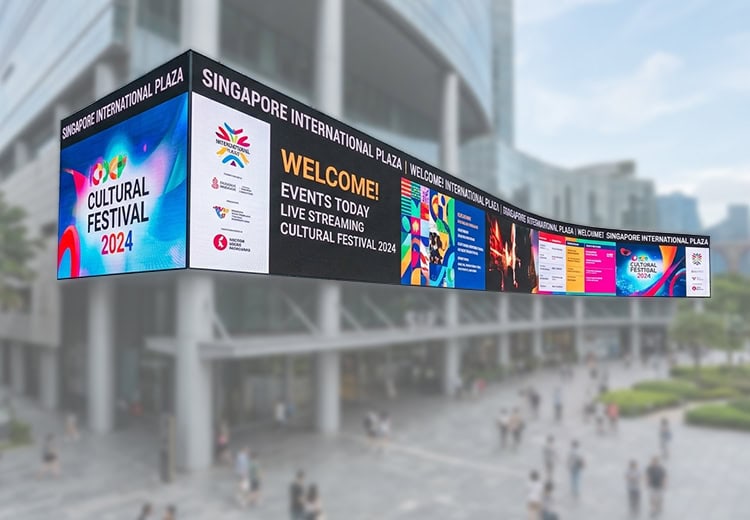

One Cabinet for Fixed and Rental Projects
Deploy the same display system across permanent installations and rental events with greater flexibility. EcoCOB’s versatile cabinet design helps reduce inventory complexity while adapting to a wider range of project requirements.
The lightweight 500 × 500 mm die-casting aluminum cabinet supports fixed installations, rental applications, curved displays up to ±7.5°, and optional 90° corner configurations for more creative LED designs.

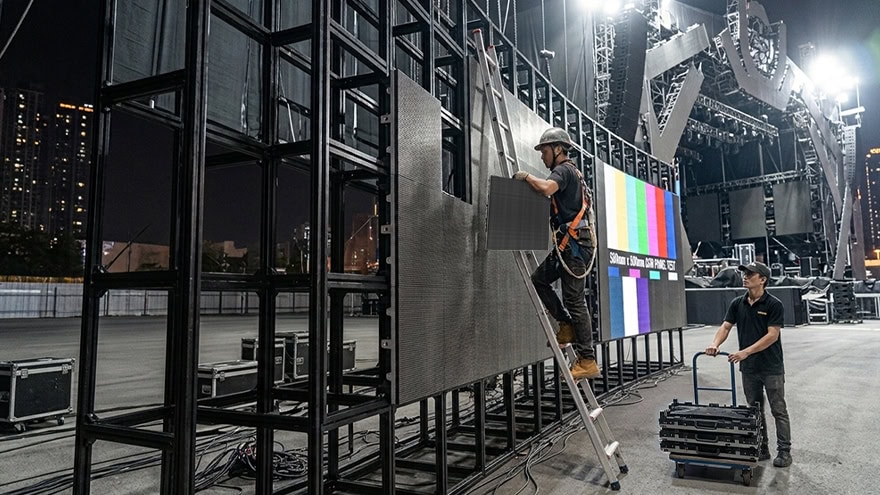

Built for Precision and Repeated Installation
Whether installed permanently or assembled repeatedly for rental events, EcoCOB maintains excellent structural stability and display flatness. The robust cabinet design minimizes deformation and keeps the screen looking seamless over time.
Anodized die-casting aluminum construction improves resistance to wear, friction, and repeated handling, making EcoCOB particularly suitable for demanding outdoor rental applications.
Lower Power Consumption, Longer Service Life
Reduce energy consumption without sacrificing brightness or image quality. EcoCOB helps lower electricity costs while improving overall system reliability for long-term outdoor operation.
Its common cathode power supply design delivers more efficient power distribution, better heat dissipation, and lower light decay, helping extend LED lifespan and reduce total operating costs.
The Next Generation of Outdoor COB LED Displays
As outdoor display projects continue to demand higher image quality, lower operating costs, and greater installation flexibility, traditional outdoor LED displays are no longer the only choice. Fine pitch technology, Flip Chip COB packaging, and common cathode architecture are redefining what outdoor LED displays can achieve.
EcoCOB Series brings these advanced technologies together in a compact 500 × 500 mm platform, delivering exceptional visual performance, reliable outdoor durability, and versatile installation options. The result is a display solution designed not only for today’s premium outdoor projects, but also for the evolving expectations of future digital display applications.
Backed by YuChip’s years of LED display engineering expertise, EcoCOB is built to help customers create more reliable, energy-efficient, and visually impressive outdoor display solutions.
Applications for Premium Outdoor Display Projects
Parameters
EcoCOB Outdoor COB LED Display Specifications
From fine pixel pitch and high brightness to common cathode architecture and precision cabinet design, every specification of the EcoCOB Series is engineered to support premium outdoor performance. Explore the complete technical specifications below to compare key performance data and choose the ideal configuration for your project.
EcoCOB Series Outdoor COB LED Display Specification
| Pixel Pitch (mm) | 1.5625 | 1.953 |
| Pixel Structure | COB 1RG1B | COB 1RG1B |
| Pixel Density(dot/m²) | 409,600 | 262,144 |
| Module Size(W*H)(mm) | 250*250 | 250*250 |
| Backshell Material | Die Casting Aluminum | Die Casting Aluminum |
| Module Resolution(W*H)(dot) | 160*160 | 128*128 |
| Maximum Current(A) | 3.5/4.5 | 3.5/4.5 |
| Supply Voltage(V) | 3.2/4.2 | 3.2/4.2 |
| Scanning Method | 1/20 | 1/16 |
| Refresh Frequency(Hz) | ≥3840 | ≥3840 |
| Brightness(cd/m²) | 3000 | 3000 |
| Driver IC | Constant Current Drive | Constant Current Drive |
| Contrast Ratio | ≥10000:1 | ≥10000:1 |
| Cabinet Size(W*H*D)(mm) | 500*500*90 | |
| Cabinet Material | Die Casting Aluminum | |
| Cabinet Weight(kg) | 9.5 | |
| Enclosure Connection Method | Quick Lock | |
| Installation/Maintenance Methods | Front or Back Installation/Front or Back Maintenance | |
| Color Temperature/Luminance Uniformity | 3000-12000K Adjustable, ≥98% | |
| Chromatic Uniformity | ±0.003Cx, Cy | |
| Horizontal / Vertical Viewing Angle | ≤140° | |
| Single-point Color Correction | Yes | |
| Single Point Brightness Correction | Yes | |
| Standard Receiver Card | A8S-N | |
| Frame Rate(Hz) | 50/60 | |
| Protection Level | IP65 | |
| Signal Interface Mode | RJ45 | |
| Power Interface Method | Connectors | |
| Input Voltage Range AC(V) | 100-240 | |
| Peak Power Consumption(W/m²) | ≤680 | |
| Average Power Consumption(W/m²) | ≤260 | |
| Working Temperature and Humidity | −20～+50℃ , 10%～95% RH | |
| Storage Temperature and Humidity | −40～+70℃ , 10%～95% RH | |
| Service Life(H) | ≥100000 | |
| Mean Time Between Failure(H) | ≥10000 | |
Customer Cases
FAQs
1.When should I choose a fine pitch outdoor LED display instead of a conventional outdoor LED screen?
Traditional outdoor LED displays are an excellent choice for long-distance viewing and cost-sensitive projects. However, as more outdoor applications demand closer viewing distances and higher image quality, fine pitch outdoor LED displays have become the preferred solution for premium installations.
The comparison below can help you determine which type of outdoor LED display best matches your project requirements.
| Project Requirement | EcoCOB Fine Pitch Outdoor LED Display | Conventional Outdoor LED Display |
| Close Viewing Distance | ✅ Excellent | △ Limited |
| Premium Image Quality | ✅ Excellent | Good |
| Large Outdoor Billboards | △ Possible | ✅ Recommended |
| Cost-Sensitive Projects | △ Higher Investment | ✅ More Economical |
| Retail & Corporate Displays | ✅ Ideal | Good |
| Highway & Roadside Advertising | Not Recommended | ✅ Ideal |
If your project requires viewers to see detailed content from a relatively short distance, EcoCOB is the ideal solution. For large-format displays viewed from farther away, a conventional Outdoor LED Display may provide a more cost-effective option.
Explore our Outdoor LED Display solutions or the Eco Pro Series Outdoor LED Display if your project is better suited to a conventional outdoor LED screen.
2.Is an outdoor COB LED display worth the higher initial investment?
While outdoor COB LED displays generally have a higher upfront cost than traditional SMD displays, they can deliver better long-term value. Flip Chip COB technology provides stronger protection against impact, dust, moisture, and static electricity, helping reduce dead pixels and maintenance frequency over time.
Combined with a common cathode design that lowers power consumption and heat generation, EcoCOB helps reduce the total cost of ownership throughout the display’s service life, making it a cost-effective choice for premium projects.
3.Can a COB LED display really be used for rental applications?
Yes. Earlier generations of COB displays were primarily designed for fixed installations, but newer technologies have made rental applications practical.
EcoCOB features a durable die-casting aluminum cabinet with an anodized surface that resists wear during repeated transportation and installation. Its lightweight 500 × 500 mm cabinet, together with optional curved and corner configurations, makes it suitable for both fixed installations and high-end rental projects.
4.What happens if an LED module is damaged?
Although Flip Chip COB technology significantly improves durability, any LED display may eventually require maintenance after years of operation or accidental damage.
EcoCOB is designed with front-service maintenance, allowing technicians to replace individual modules quickly without dismantling the entire screen. This minimizes maintenance time, reduces labor costs, and helps keep the display operating with minimal downtime.
5.Is EcoCOB the right choice for every outdoor LED project?
Not necessarily. The best LED display depends on the viewing distance, installation environment, image quality requirements, and project budget.
For long-distance applications such as highway billboards or large outdoor advertising screens, a larger pixel pitch may be the more economical choice. EcoCOB is specifically designed for premium outdoor projects where viewers are closer to the screen and higher image quality is essential.
6.How does the common cathode design reduce operating costs?
Unlike conventional power supply designs, a common cathode architecture distributes power more efficiently to different LED colors, reducing unnecessary energy consumption.
This results in lower operating temperatures, improved heat dissipation, reduced power usage, and slower light degradation. Over time, these advantages help lower electricity costs while extending the display’s service life.
7.Can EcoCOB be customized for creative outdoor LED installations?
Yes. EcoCOB supports multiple installation configurations to meet different architectural and event requirements.
In addition to standard flat installations, it supports ±7.5° curved splicing and optional 90° corner configurations, making it suitable for creative outdoor displays, building facades, premium commercial projects, and rental stage applications.
8.What should I look for when choosing an outdoor COB LED display supplier?
Beyond product specifications, it’s important to evaluate the supplier’s engineering experience, manufacturing quality, technical support, and long-term service capabilities.
A reliable supplier should provide comprehensive quality testing, stable product consistency, project-based technical support, spare parts availability, and responsive after-sales service. With years of experience in LED display manufacturing, YuChip supports customers worldwide with customized outdoor display solutions designed for long-term performance and dependable operation.
