Circle LED Screen

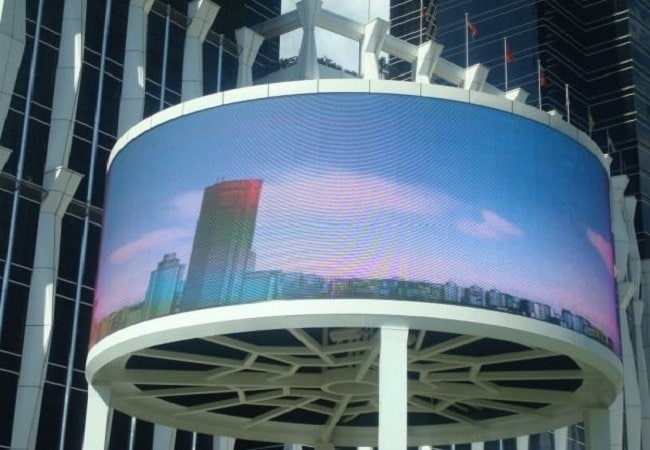

The Circle LED Screen has high brightness, high contrast, and a high refresh rate, resulting in a screen that has no delay or smear. Round LED Display is part of YUCHIP’s creative display series, allowing you to choose and customize the display angle, degree, level of curvature, and flexibility.
Arc screens such as the Circular LED Screen are convertible from various shapes (not only round) but through concave and convex postures. You may ask us to install it in outdoor or indoor areas and customize its size, convertibility, and other specifications.
YUCHIP is delighted to help you create a powerful visual impact on your project; that’s why we offer you a custom-made circle LED screen. Would you please send us a message to know more?
- Circle LED Screen Product Features
- Parameters
- Related Videos
The Circle LED Screen, being part of the creative display series, is made out of customized curved modules. It may come in various pixel pitches, and you may choose from P3, P4, P5, P6, P8, P10, or your preferred higher or smaller pixel pitch compared to the mentioned.
YUCHIP is embarking on creating custom modules to suffice various creativity events around the world. Along with the Round LED Display flexibility, we also carefully craft its angle degree, curvature, and lamps.
We trust nothing but quality brands for LED displays, for instance, Nationstar LED for LED lamps. While for software and control systems, we trust Novastar, Linsn, LEDvision, and LEDset.
You may also opt for indoor or outdoor installation.
Below are a few key points you have to consider in getting a Circular LED Screen.
- Angle Degree

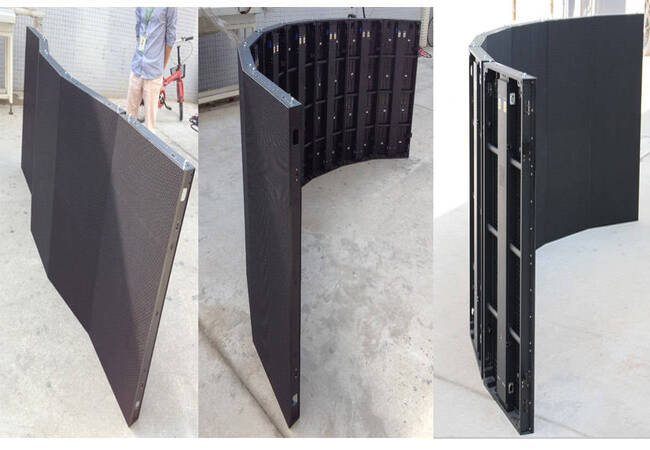

Circle LED Screen utilizes die-casting aluminum and extrusion aluminum cabinet; curved cabinet, ±5°,±10° and ±30° curve angle adjustable—support hanging up by truss and put a stage stand installation. You may also choose higher and lower angle degrees.
- Visual Presentation

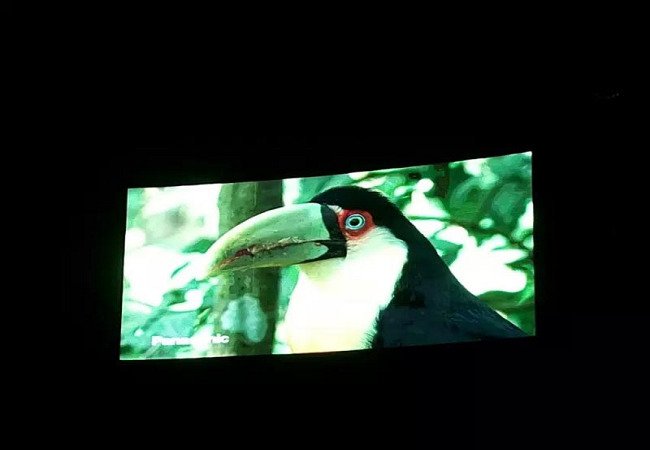

The Circle LED Screen has high brightness, high contrast, and a high refresh rate, making real-time and vivid video effects. You may also adjust the brightness to cope with the environment it is located, whether indoor or outdoor.
- Cabinet Design
YUCHIP Round LED Display has an advanced cabinet design, seamless, ensuring the entire screen’s flatness. The cabinet thickness is only 90mm. Also, YUCHIP keeps on improving its plan to make sure it covers all kinds of installation options.
- Quality Assurance
Circular LED Screen comes with three years warranty, easy to install & maintain. Products are certified by CE, Rohs, FCC, etc. Cabinets are connected after production and undergo aging, display, and screen tests. We measure the various specifications in these tests and check whether there are defective pixels, cabinet problems, etc.
- Precise Display
The Circle LED Screen brings a more accurate display and an exciting feeling while viewing. Its curve structure enables more people to see its content, making a larger-viewing angle.
Circle LED Screen Module Specification | |||||||
| Pixel Pitch (mm) | 1.95 | 2.604 | 2.97 | 3.91 | 4.81 | ||
| Pixel Configuration | SMD2121 | SMD2121 / SMD1921 | SMD1921 | ||||
| Encapsulation | 3 in 1 | ||||||
| Colors Matches | 6:3:1 | ||||||
| Module Resolution (pixels) | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 | ||
| Module Pixel (pixels) | 16384 | 9216 | 7056 | 4096 | 2704 | ||
| Module Size (mm) | 250 x 250 | ||||||
Circle LED Screen Cabinet Specification | |||||||
| Cabinet Size (mm) | 500 x 500 | ||||||
| Cabinet Resolution (pixels) | 256 x 256 | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 | ||
| Cabinet Pixels (pixels) | 65536 | 36864 | 28224 | 16384 | 10816 | ||
| Cabinet Material | Die casting aluminum | ||||||
| Cabinet Weight (kg) | 7.5 | ||||||
Circle LED Screen Screen Specification | |||||||
| Pixel Density（pixel/m²） | 262144 | 147456 | 112896 | 65536 | 43264 | ||
| Brightness（cd/m²） | ≥1000 | 1000 / 3500-4500 | 3500-4500 | ||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | ||||||
| View Angle | Horizontal 140°; Vertical 140° | ||||||
| Best Viewing Distance (m) | ≥ 2 | ≥ 2.5 | ≥ 3 | ≥ 4 | ≥ 5 | ||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | ||||||
| Display Work Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan | |||
| LED Driving Method | Constant driving current | ||||||
| Color Contrast Ratio | 5000:1 | ||||||
| Gray Grade | 16bit | ||||||
| Display Color | 439, 804, 651, 110 | ||||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | ||||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | ||||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | ||||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | ||||||
| Control System | |||||||
| Front/Rear IP Level | IP43 | ||||||
| Working Temperature (ºc) | -20～+40 | ||||||
| Stored Temperature (ºc) | -40～+80 | ||||||
| Operation Humidity (RH) | 0-95% | ||||||
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) | ||||||
| Maintenance | Rear / Front side | ||||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | ||||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | ||||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) | ||||||
(YUCHIP Creative LED Display)
YUCHIP Circle LED Screen And Round LED Display
For Outdoor And Indoor (500x500mm LED Cabinet)
Besides the pixel pitches mentioned above, YuChip provides you with a vast pixel pitch outdoor and indoor circle LED screen and round LED display. It ranges from P2.5, P2.6, P2.9, P3.91, P4.8, etc., and more.
In this video, you will see below a few steps:
1. Build a concave shape, cabinet size 500x500mm, ± 15 adjustable degrees
2. Build a convex shape, die-casting aluminum cabinet, 7.5kg ultra-lightweight.
3. Assemble up and down LED cabinets, easy and fast through fast lockers.
4. P3.91 concave LED screen aging test in our workshop.
5. You can lift it as a circle LED screen and round LED display.
6. You can also hang it up as four sides stadium LED screen (P4.8 in Hungary).
Besides 500x500mm cabinet size circle LED screen and round LED display, we can customize circular and flexible LED screens for you.
You can choose pixel pitch 1.25mm, P1.56, P1.875, P2, P2.5, P3, P4, etc. You can also get a customized size from us. If you are interested to know more about circle LED screens and round LED displays, please don’t hesitate to contact us.
