Energy Saving LED Display


YUCHIP has developed an outdoor energy-saving LED display that aims to reduce the cost of electric power, and the energy-saving efficiency reached more than 50%. Energy-saving LED Display reduces electromagnetic interference and adopts double circuit 2.8V & 3.8V for modules and control system.

With its long service and low consumption, you can save a significant amount of energy. Energy is renewable, but the impact of saving resources also helps the planet amidst ongoing technological advancements.

Are you considering an LED Billboard Power Consumption for your outdoor promotion? Would you please let us help you?




Outdoor LED display is usual with a larger area, and power is higher than ordinary appliances. Dozens of square meters of LED display can usually reach tens of kilowatts. And as the number of LED display screens increases, production has become the main force of power consumption in the advertising industry.

If you’re an environmentally friendly user, investing in an energy-saving LED display will surely fulfill your goals along with proper energy conservation.

Here are the LED Billboard Power Consumption features and advantages.

  • Super Energy Saving

LED Billboard Power Consumption saves up to 50% of electrical energy because it adopts a unique PCB design with a high brightness LED lamp. Carefully crafting an LED Billboard Power Consumption means choosing the right parts that will accompany the purpose of production. In this case, we trust the Nationstar lamp that has energy-saving capabilities.

  • Low Working Voltage

An energy-saving LED screen reduces electromagnetic interference by utilizing double circuits of 2.8V & 3.8V for modules and control systems.

  • Flexible Use

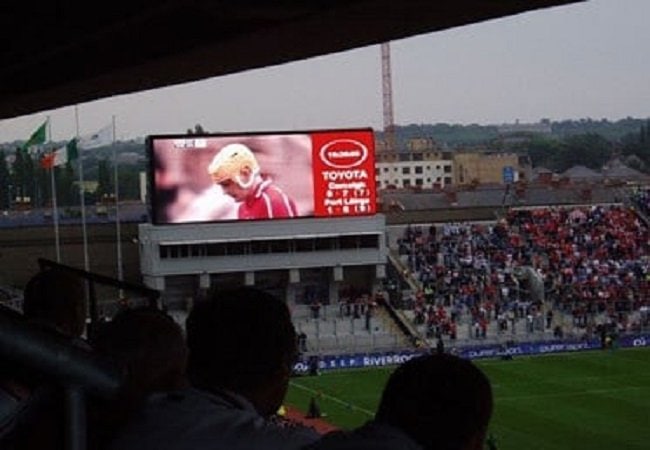

The Energy Saving LED Display may come in various uses, mainly outdoor, but if you opt to use it for rental, or as a perimeter for sports, for fixed installation, advertising, we are willing to help you customize it.

It has a pixel pitch of P16 LED, but we can also offer you either a higher or a smaller pixel pitch of your choice. Here’s an example: P8 Energy-saving LED Screen In Budapest

  • Low Light Pollution

You may have heard of light pollution many times. Light pollution has various implications for both humans and the environment.

It interferes with signals in the background, causing low signal pick-up among scientific and astronomical research. Light pollution comes from artificial lights roaming the atmosphere of cities; one example is the light emitted by an LED screen that eats up high energy.

In a narrow sense, low-energy screens mean lower light pollution. Hence, if we allow switching our displays to energy-saving ones, we can significantly help conserve energy.

All over the world, every year, power consumption on LED display reaches billions of degrees; thus, the reduction of the LED display power consumption becomes an important subject in LED display design.

Please send us a message if you have further questions.

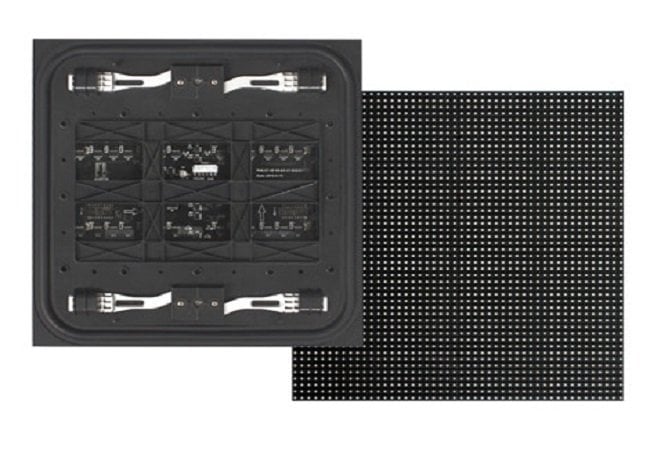

Energy Saving LED Module Parameter

Pixel Pitch (mm)

16

Pixel Configuration

1R1G1B

Encapsulation

DIP346

Colors Matches

6:3:1

Module Resolution

20 x 20

Module Pixel

400

Module Size

320 x 320

Energy Saving LED Cabinet Specification

Cabinet Size (mm)

960 x 960 x 150 and customized

Cabinet Resolution

60 x 60

Cabinet Pixels

3600

Cabinet Material

Steel

Cabinet Weight (kg)

45

Energy Saving LED Display Specification

Pixel Density (pixel/㎡)

3906

Brightness (cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by auto-optic induced

View Angle

Horizontal 110°; Vertical 70°

Best Viewing Distance (m)

≥14m

Communication distance (m)

<100meter by Internet Cable (without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

Static

LED Driving Method

Constant driving current

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1000

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP65

Working Temperature (ºC)

-20~+60

Stored Temperature (ºC)

-30~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 850W/㎡ ; Ave:350W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)



(P10 Outdoor Rental LED Display Aging Test)

Energy Saving LED Display



Outdoor LED Displays often come in large sizes; that’s why they usually take up much power to run. Unlike ordinary appliances, they typically reach hundreds and thousands of kilowatts with every use.

It was one of the concerns by many or maybe still a worry for some today. With the technology phasing out other innovations from the past, it also makes sure to leave a breakthrough for the present.

Energy Saving LED Display
Energy Saving LED Display

The advertising industry has consumed much energy in the past years. The use of leaflets to tarpaulin and with LED displays as well. That’s why we have come up with a new product that’ll help everyone save energy and conserve the environment, at the same time.

YUCHIP brings you our energy-saving LED screen. It utilizes a P16 pixel pitch, so it’s more likely an outdoor billboard solely for advertising.

Here are the details below:

  • Super Energy Saving

The LED lamps adopt high brightness but do not require much power. The system itself has a unique PDB design in which power consumption goes only around 50%.

One more fact, the use of energy-saving devices or equipment helps us save the planet and conserve non-renewable resources.

  • Low Maintenance Required

It asks for fixed installation, so the design requires little to no maintenance. The display has better heat dissipation; that’s why the parts wouldn’t burn or break even under direct sunlight.

LED Billboard Power Consumption
LED Billboard Power Consumption
  • Long-life Span

Ten years is a promise. A long-life span plus energy-saving, what else would be better?

  • Effective Advertising

The overall design is primarily for advertising to convey and deliver your message to your target prospects or consumers.
