- Ultra-thin – The thickness of only 65mm and has low environmental requirements for the installation saves space.
- Seamless splicing – Accurate and solid mechanical design is suitable for fixed installation for long-term use, ensure seamless splicing between cabinets.
– Lightweight, with only 32 kg/㎡, including the connectors and cables.
– Replaces seamless LCD and DLP projection display products, providing customers with high-quality display solutions suitable for information display, brand promotion, advertising, etc.
- Quick install and easier maintenance – Patented “POP on/out” positive click makes quick & easy front serviceability a dream come true.
– It has a patented interlocking system, magnetic docking fastening module for fast and easy swapping of any module.
- Broad View- Angle: 160 ° viewing angle, the maximum to meet viewing needs.

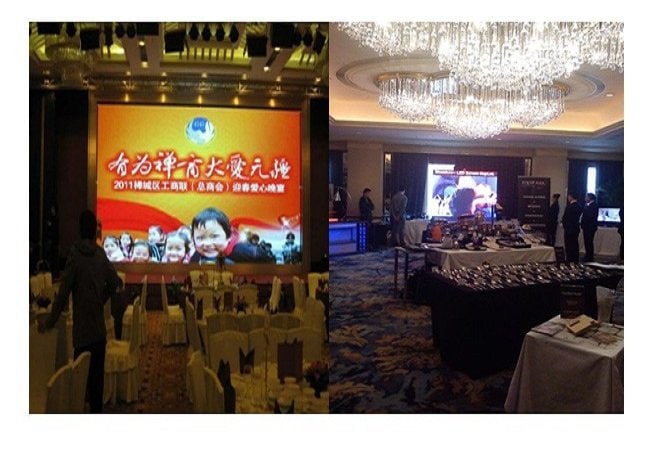

- Application places – It is ideal for outdoor advertisement media, enterprise project culture, sports, propaganda images, and commercial real estate.
|LED MODULE PARAMETER|
|Pixel pitch (mm)||6|
|Pixel configuration||3 in 1|
|Module resolution (pixels)||40 x 40|
|Module size (mm)||240 x 240|
|LED CABINET SPECIFICATION|
|Cabinet size (mm)||480 x 480 x 65|
|Cabinet resolution (pixels)||80 x 80|
|Cabinet pixels (pixels)||6400|
|Cabinet weight (kg)||19kg|
|LED DISPLAY SPECIFICATION|
|Brightness adjusted||100 grade by software or by Auto-optic induced|
|View angle||Horizontal 140°; Vertical 140°|
|Best viewing distance (m)||≥5m|
|Communication distance（m）||<100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m;|
Single-mode fiber cable ＜ 20km
|Display work method||1/10 Scan|
|LED driving method||Constant driving current|
|Color contrast ratio||1800:1|
|Display Color||439, 804, 651, 110|
|Refresh Frequency (Hz)||≥1000|
|Picture display method||Intellective control technology, test-itself technology, correct technology,|
|Input signal||DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a Video processor|
|System operating||WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.|
|Front/Rear IP Level||IP43|
|Working temperature (ºC)||-20～+60|
|Stored temperature (ºC)||-30～+80|
|Operation humidity (RH)||0-95%|
|Display Lifetime (hours)||Ten years or more( natural environment)|
100000 hours( ideal environment)
|Working Voltage||AC110 / AC220V±10% 47～63HZ|
|Out of controlled dot||≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the|
wavelength are both >10% depart to the normal one)

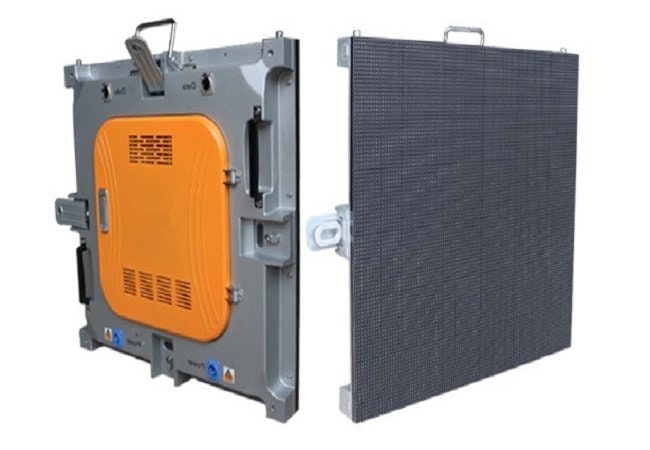

(P6 Rental Display Screen)
