iPhone-style LED Poster


iPhone Style LED Poster supports front maintenance, ultra-thin LED rear. LED PostAir can be customized in size, pixel spacing, and resolution.

At the same time, support remote cluster control, multi-screen synchronous broadcast programs.




  • iPhone-style LED Poster supports various installation methods:90 degrees to stand, movable wheels, wall-mounted, hanging up installation options.
  • iPhone-style LED Poster is portable and easy to control, designed for LED Display applications in shopping malls, retail shops, brand chain stores, hotels, exhibitions, events, etc.
  • iPhone-style LED Poster supports asynchronous mode, Wi-Fi mode, USB mode, and 4G control. It supports front maintenance, ultra-thin LED rear.
  • We customize the iPhone-style LED Poster in size, pixel spacing, and resolution. At the same time, support remote cluster control, multi-screen synchronous broadcast programs.
  • The structure looks similar to an iPhone since the shapes and standing elevation design are very similar.
  • It has an easy cascading method; you can use a phone, computer, or tablet to customize the content.
MODEL  Parameters

LED PostAir 1.9

LED PostAir 2.5 LED PostAir 2.5

LED PostAir 3

LAMP LED Type

SMD(1010)

SMD(2121) SMD(2121)

SMD(2121)

MODULE









Pixel pitch

1.944mm

2.5mm 2.5mm

3mm

LED module size (mm)

210×280

280×210 320×160

192×192

Resolution (W× H)

144× 108

112× 84 64× 128

64× 64

LED driving method

1/27 scan

1/32 scan 1/32 scan

1/32 scan

CABINET

















LED module layout (W× H)

2× 9

2× 12

3× 10

Display area

1.06m²

1.23m²

1.2m²

Display Size (mm)

560× 1890

640× 1920

576× 1920

Cabinet size (mm)

572× 1902 × 35

660× 1940

596×1940

Resolution (W× H)

288× 972

224× 756 256× 768

192× 640

Net. weight/set

32kg

40kg

Ingress Protection

Front IP40/Rear IP40

Power

AC 240/100±10%

Serviceability

Front service

DISPLAY

























Max. Power consumption

600W

750W

600W

Avg. Power consumption

200W

250W

200W

Viewing Angle (H/V)

160°/160°

Brightness

1200~1500 cd/m²

1000cd/m²

1200~1500 cd/m²

Pixel density (pixel/m² )

169344

279936 160000

111111

Contrast ratio

4000:1

Temperature/ Humidity

-10°C to +40°C; 10% to 90%

Lifetime (50% brightness)

80,000hours

Processing

16bit

Refresh rate

≥2880Hz

Frame rate

60fps

Brightness level

Manually/Auto/Programmable

Colors

281trillion



(Movie LED Poster Screen)

iPhone-style LED Poster

iPhone is one of America’s most famous phone brands and is now topping the world for sales and popularity. No wonder why many are adoring it because of its almost perfect software and hi-tech technology embedded in a slim and flat case.

The manifestation of iPhone influence is in every field and industry, such as clothing and merchandising, decoration, arts and creativity, and many others.

YUCHIP also greatly represents iPhone influence in the LED industry- the iPhone Style LED Poster.

Iphone Style LED PostAir
iPhone Style LED Poster

iPhone is a smartphone made by Apple that combines a computer, iPod, digital camera, and cellular phone into one device with a touchscreen interface. The overall design features modern technology as to how it looks.

Features

  • Various Installation Methods
iPhone Style LED PostAir 1

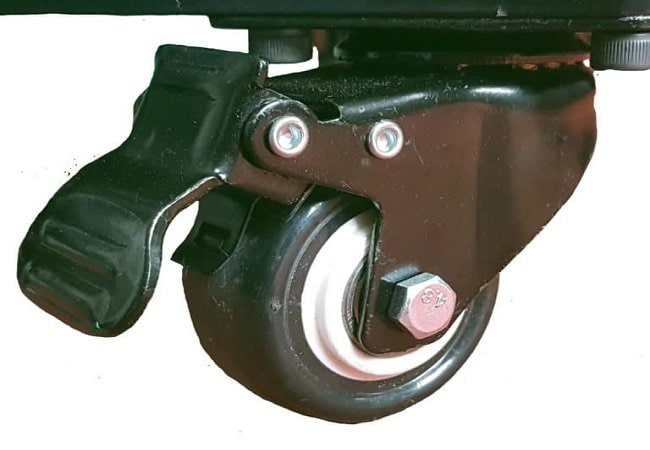

Movable Wheels

Like other YUCHIP LED Posters, the iPhone style also has various installation methods such as a 90-degrees stand, movable wheels, hanging up installation, etc.

You can easily install and dismantle it when not in use or if there is a need for it to transfer.

  • Portable and Quick Control

Our iPhone-style LED poster comes with movable wheels, so you can quickly move them from one place to another, in the case of advertising.

You can place them in various locations such as shopping malls, retail stores, hotels, casinos, exhibits, and other indoor or outdoor gatherings and events.

  • Easy Maintenance

It utilizes front maintenance features and ultra-thin rear.

  • Customized Size
iPhone Style LED PostAir 1

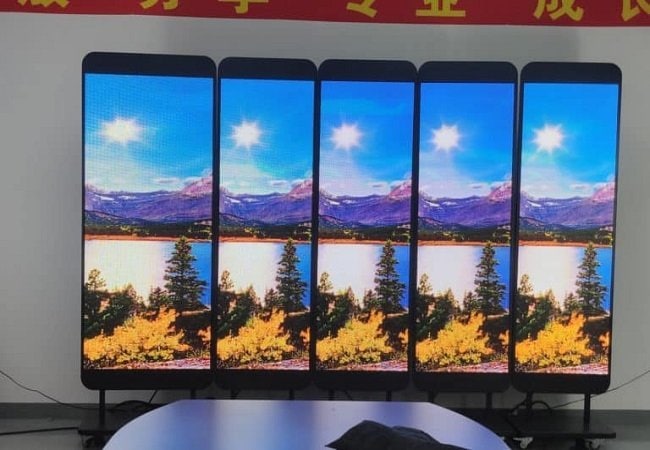

Cascaded iPhone-style LED Poster

We can customize the size, pixel spacing, and resolution depending on your preference.

Other than the parameters we showed above, we follow our customers’ choices.

  • Different Modes

It supports asynchronous mode, Wi-Fi, USB, and 4G control, remote cluster control, and multi-screen synchronous broadcast programs.

The video below shows the process of how we install LED posters carefully.
