iPhone-style LED Poster
iPhone Style LED Poster supports front maintenance, ultra-thin LED rear. LED PostAir can be customized in size, pixel spacing, and resolution.
At the same time, support remote cluster control, multi-screen synchronous broadcast programs.
- Product Features
- Parameters
- Related Videos
- iPhone-style LED Poster supports various installation methods:90 degrees to stand, movable wheels, wall-mounted, hanging up installation options.
- iPhone-style LED Poster is portable and easy to control, designed for LED Display applications in shopping malls, retail shops, brand chain stores, hotels, exhibitions, events, etc.
- iPhone-style LED Poster supports asynchronous mode, Wi-Fi mode, USB mode, and 4G control. It supports front maintenance, ultra-thin LED rear.
- We customize the iPhone-style LED Poster in size, pixel spacing, and resolution. At the same time, support remote cluster control, multi-screen synchronous broadcast programs.
- The structure looks similar to an iPhone since the shapes and standing elevation design are very similar.
- It has an easy cascading method; you can use a phone, computer, or tablet to customize the content.
| MODEL | Parameters | LED PostAir 1.9 | LED PostAir 2.5 | LED PostAir 2.5 | LED PostAir 3 |
| LAMP | LED Type | SMD(1010) | SMD(2121) | SMD(2121) | SMD(2121) |
| MODULE
| Pixel pitch | 1.944mm | 2.5mm | 2.5mm | 3mm |
| LED module size (mm) | 210×280 | 280×210 | 320×160 | 192×192 | |
| Resolution (W× H) | 144× 108 | 112× 84 | 64× 128 | 64× 64 | |
| LED driving method | 1/27 scan | 1/32 scan | 1/32 scan | 1/32 scan | |
| CABINET
| LED module layout (W× H) | 2× 9 | 2× 12 | 3× 10 | |
| Display area | 1.06m² | 1.23m² | 1.2m² | ||
| Display Size (mm) | 560× 1890 | 640× 1920 | 576× 1920 | ||
| Cabinet size (mm) | 572× 1902 × 35 | 660× 1940 | 596×1940 | ||
| Resolution (W× H) | 288× 972 | 224× 756 | 256× 768 | 192× 640 | |
| Net. weight/set | 32kg | 40kg | |||
| Ingress Protection | Front IP40/Rear IP40 | ||||
| Power | AC 240/100±10% | ||||
| Serviceability | Front service | ||||
| DISPLAY
| Max. Power consumption | 600W | 750W | 600W | |
| Avg. Power consumption | 200W | 250W | 200W | ||
| Viewing Angle (H/V) | 160°/160° | ||||
| Brightness | 1200~1500 cd/m² | 1000cd/m² | 1200~1500 cd/m² | ||
| Pixel density (pixel/m² ) | 169344 | 279936 | 160000 | 111111 | |
| Contrast ratio | 4000:1 | ||||
| Temperature/ Humidity | -10°C to +40°C; 10% to 90% | ||||
| Lifetime (50% brightness) | 80,000hours | ||||
| Processing | 16bit | ||||
| Refresh rate | ≥2880Hz | ||||
| Frame rate | 60fps | ||||
| Brightness level | Manually/Auto/Programmable | ||||
| Colors | 281trillion | ||||
(Movie LED Poster Screen)

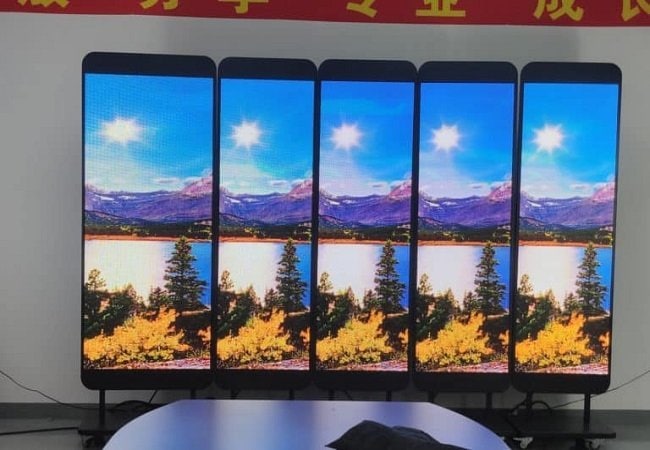

iPhone-style LED Poster
iPhone is one of America’s most famous phone brands and is now topping the world for sales and popularity. No wonder why many are adoring it because of its almost perfect software and hi-tech technology embedded in a slim and flat case.
The manifestation of iPhone influence is in every field and industry, such as clothing and merchandising, decoration, arts and creativity, and many others.
YUCHIP also greatly represents iPhone influence in the LED industry- the iPhone Style LED Poster.
iPhone is a smartphone made by Apple that combines a computer, iPod, digital camera, and cellular phone into one device with a touchscreen interface. The overall design features modern technology as to how it looks.
Features
- Various Installation Methods
Like other YUCHIP LED Posters, the iPhone style also has various installation methods such as a 90-degrees stand, movable wheels, hanging up installation, etc.
You can easily install and dismantle it when not in use or if there is a need for it to transfer.

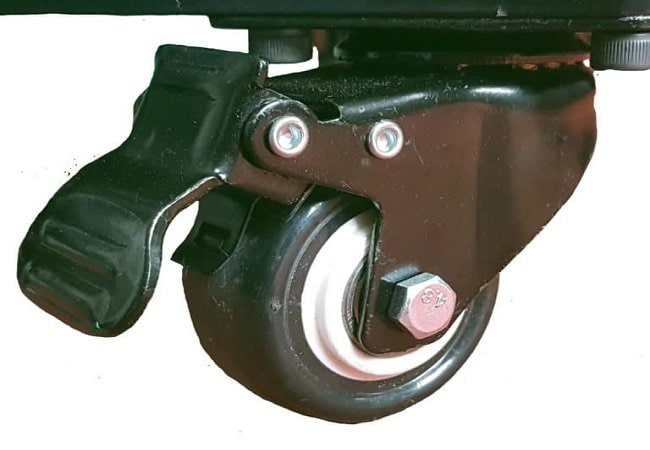

Our iPhone-style LED poster comes with movable wheels, so you can quickly move them from one place to another, in the case of advertising.
You can place them in various locations such as shopping malls, retail stores, hotels, casinos, exhibits, and other indoor or outdoor gatherings and events.
It utilizes front maintenance features and ultra-thin rear.
We can customize the size, pixel spacing, and resolution depending on your preference.
Other than the parameters we showed above, we follow our customers’ choices.
