IRE Series


The Mobile LED Screen Rental IRE Series products have quick and accurate curved connection systems, from -7.5 degrees to 10 degrees.  Every 2.5 degrees can make an angle adjustment, supporting the angle changes like +10 degrees, +7.5/-7.5 degrees, and 0 degrees.

Portable LED Screen Rental can quickly adjust the screens without any tools, from straight screen to radian. Also, it has high-precision positioning columns and lock buckles that can reach a quick connection of the cabinet in 10 seconds.

IRE Series higher quality IC components significantly solved the problems of poor grayscale under low brightness, making the image vivid.

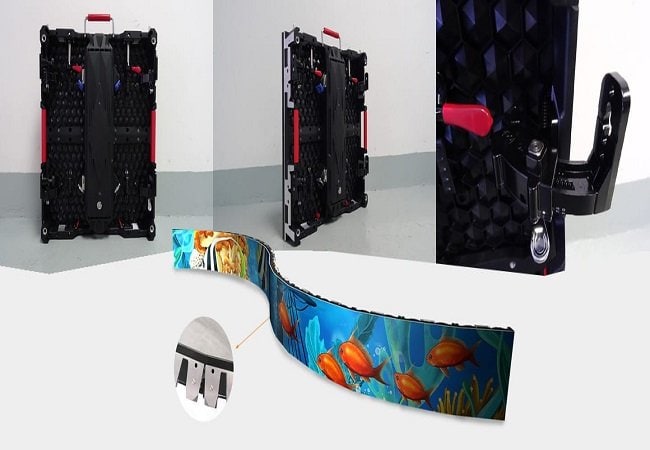

The Mobile LED Screen Rental IRE Series is composed of indoor rental displays that have a particular property. They can be bent over to achieve various curves to enrich your event’s visual views and presentations. Unlike custom-made wavy or curved screens, the Portable LED Screen Rental has the adaptability from the structure design given from the blueprint even without customization.

Because of its elasticity and easy-curving formula, it may ease you in your events, especially if you’re tackling making various impressions to your viewers.

Below are its features and advantages.

  • Adjustable Connection Angle

Mobile LED Screen Rental has a quick and accurate curved connection system, from -7.5 degrees to 10 degrees. Every 2.5 degrees can make an angle adjustment, supporting the angle changes like +10 degrees, +7.5/-7.5 degrees, and 0 degrees.

  • Quick Adjustment

The IRE Series can quickly adjust the screens without any tools, from straight screen to radian. Using your hands alone, you will adapt multiple cabinets in few minutes because the cabinets come in soft handles and adaptability features.

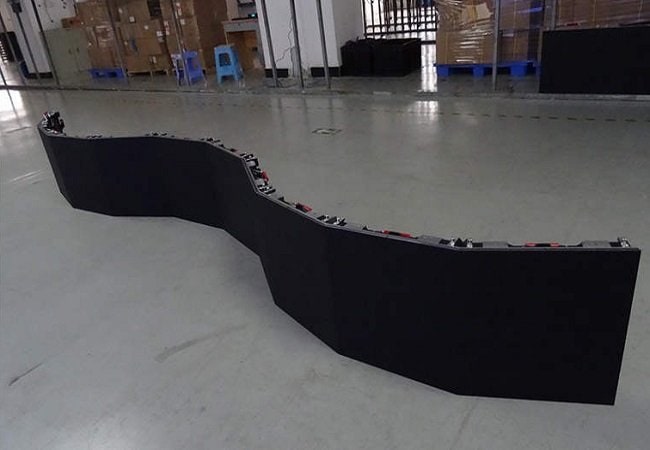

Also, you can make round, circle, arc, wavy screens out of Mobile LED Screen Rental.

  • Installation And Maintenance

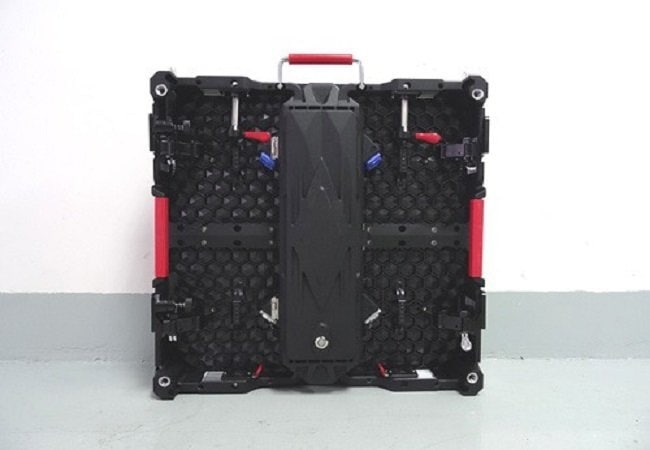

IRE Series has high-precision positioning columns and lock buckles that can reach a quick connection of the cabinet in 10 seconds, making installation way easier, comfortable, and time-saving.

Maintenance is also very convenient; both sides are serviceable. If you created a circle one, exposing only the front side, you might opt for front or rear maintenance. Either way comes in an easy method.

  • Excellent Performance

Mobile LED Screen Rental has higher quality IC components that significantly solved the problems of poor grayscale under low brightness, making the image vivid. Also, the overall structure of the display corresponds well to indoor rental usage and indoor events.

Should you have questions, please get in touch with us.

IRE Series LED Module Specification

Pixel Pitch (mm)

1.9

2.5 3 3.75 3.91 4 5 5.95 6

6.25

Pixel Configuration

3 in 1

1R1G1B

3 in 1

Encapsulation

SMD1010

SMD2121 SMD3528 SMD1921

SMD3528/SMD3535

Colors Matches

06:03:01

Module Resolution (pixels)

84*84

64*64 80*80 64*64 84*168

80*80

Module Pixel

7056

4096 6400 4096

1600

Module Size (mm)

160*160

240* 240 250*250 285*285

240*240

IRE Series LED Cabinet Specification

Cabinet Size (mm)

320*320*85mm

640*640*65 480*480*65 500*500*75 576*576*85 480*480*65

500*500*75

Cabinet Resolution (pixels)

168*168

256*256 160*160 128*128

80*80

Cabinet Pixels (pixels)

28224

65536 25600 16384

6400

Cabinet Material

Aluminum

Die-casting Aluminum

Aluminum

Cabinet Weight (kg)

4.5

8 6.5 8.2/14.9 8 28 12.5 19

7.5

IRE Series LED Display Specification

Pixel Density (pixel/㎡)

275625

160000 111111 71111 65749 62500 40000

27777

Brightness (cd/㎡)

≥800 (adjustable)

≥2000 (adjustable) ≥3500 ≥800-1200 ≥1500 ≥5000 ≥2000

≥4500

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

160/120 140/140 180/180

140/140

Best Viewing Distance (m)

≥2m

≥2.5m ≥3m ≥5m

≥6m

Communication Distance (m)

<100meter by Internet Cable (without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/21 Scan

1/16 Scan 1/7 Scan

1/10 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

1800:1

4000:1

1800:1

Gray Grade

14bit

16 bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920

≥1000 ≥1920 ≥2400 ≥1200 ≥2400

≥1000

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Front/Rear IP Level

IP30

IP43 IP65

IP43

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature (ºc)

-20~+60

-40~+70 -20~+40

-20~+60

Stored Temperature (ºc)

-30~+80

-30~+80 -50~+70 -20~+40

-30~+80

Operation Humidity (RH)

0-95%

25-95%

0-95%

Display Lifetime (hours)

Ten years or more (natural environment) 100000 hours (ideal environment)

Maintenance

Front/Rear side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)

(YUCHIP Indoor Rental LED Display Cabinet Fast Lock)
