LED Wall Rental Outdoor And Indoor Q Series
LED Wall Rental Outdoor and Indoor Q Series is YUCHIP’s promising rental LED display. Its comprehensive features, pixel pitch options, and high-definition display bring refined resolution to rental events.
Though it is designed for outdoor use, you can also place them indoors as a video wall, advertising display, or information screen. Installation and dismantling also come in an easy method because each cabinet is equipped with an anti-skid handle, saving effort, time, budget, and workforce.
If you’re considering getting an LED Wall Rental and have further questions, please message us right away.
- LED Wall Rental Q Series Product Features
- Parameters
- Related Videos
LED Wall Rental Q Series is one of YUCHIP’s leading products for outdoor usage. Along with the ongoing development of the LED display industry, various LED products are also flourishing. Here are the LED display rental Q Series features and critical points.
- Ultra HD Display And Excellent Visual Effects
LED display rental Q Series has an ultra-high dynamic contrast and high-quality display, ultra-high-definition, and perfect picture quality, bringing unprecedented visual enjoyment. It easily attracts attention and dramatically enhances the value of advertising.
- Perfect Structural Design
Outdoor And Indoor Q Series have high-precision cast aluminum material, perfect for splicing without gaps. While its fast locking makes installation and removal extremely easy, the high-quality aviation plugs ensure overall reliability.

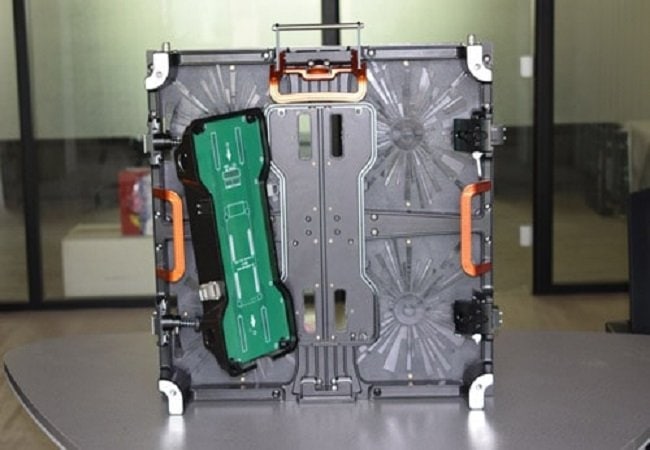

- Quick Maintenance
Outdoor And Indoor Q Series LED cabinet’s rear control system uses a snap-in design; thus, maintenance and installation are more efficient and convenient.
- Unique Design
LED Wall Display Rental has a unique design; you can complete the upper and lower cabinet connection in only one second.
- Cabinet Connection Angle
LED Wall Display Rental cabinet can be arc-shaped connected; with its angle adjustment device, you can achieve positive and negative 10 degrees of adjustment to meet the different arc connections you prefer.

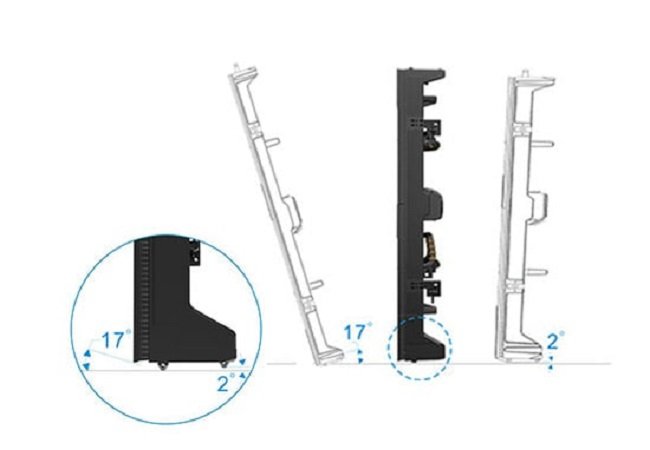

- Anti-damage Design
The cabinet’s sloping bottom protects LED lamps, avoids collision to mask and plastic chassis, and for the cabinet’s stable standing. This design also ensures that the whole system will be in a firm position while transporting the cabinets.
- Indoor And Outdoor Adaptability
An outdoor rental but is also utilized in indoor rental events. With its clear visuals and resolution, it can adapt to both environments. For indoor usage, you can easily adjust the brightness, the same way for outdoor installation.
- Rental Usage
You can use the LED Wall Rental Outdoor And Indoor Q Series for different rental events such as concerts, exhibits, trade shows, product launches, conferences, shopping malls, outdoor community programs, outreach programs, charity events, and a lot more.
LED Wall Rental Q Series Module Specification | |||||||
Pixel Pitch (mm) | 1.95 | 2.604 | 2.97 | 3.91 | 4.81 | ||
Pixel Configuration | SMD2121 | SMD2121 / SMD1921 | SMD1921 | ||||
Encapsulation | 3 in 1 | ||||||
Colors Matches | 6:3:1 | ||||||
Module Resolution (pixels) | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 | ||
Module Pixel (pixels) | 16384 | 9216 | 7056 | 4096 | 2704 | ||
Module Size (mm) | 250 x 250 | ||||||
LED Wall Rental Q Series Cabinet Specification | |||||||
Cabinet Size (mm) | 500 x 500 | ||||||
Cabinet Resolution (pixels) | 256 x 256 | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 | ||
Cabinet Pixels (pixels) | 65536 | 36864 | 28224 | 16384 | 10816 | ||
Cabinet Material | Die casting aluminum | ||||||
Cabinet Weight (kg) | 7.5 | ||||||
LED Wall Rental Q Series Screen Specification | |||||||
Pixel Density(pixel/m²) | 262144 | 147456 | 112896 | 65536 | 43264 | ||
Brightness(cd/m²) | ≥1000 | 1000 / 3500-4500 | 3500-4500 | ||||
Brightness Adjusted | 256 grade by software or by Auto-optic induced | ||||||
View Angle | Horizontal 140°; Vertical 140° | ||||||
Best Viewing Distance (m) | ≥ 2 | ≥ 2.5 | ≥ 3 | ≥ 4 | ≥ 5 | ||
Communication Distance(m) | <100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km | ||||||
Display Work Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan | |||
LED Driving Method | Constant driving current | ||||||
Color Contrast Ratio | 5000:1 | ||||||
Gray Grade | 16bit | ||||||
Display Color | 439, 804, 651, 110 | ||||||
Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | ||||||
Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | ||||||
Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | ||||||
System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | ||||||
Control System | |||||||
Front/Rear IP Level | IP43 | ||||||
Working Temperature (ºc) | -20~+70 | ||||||
Stored Temperature (ºc) | -40~+80 | ||||||
Operation Humidity (RH) | 0-95% | ||||||
Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) | ||||||
Maintenance | Rear / Front side | ||||||
Working Voltage | AC110 / AC220V±10% 47~63HZ | ||||||
Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | ||||||
Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
(Rental LED Display Q Series For Indoor And Outdoor)
Outdoor LED Screen Rental Q Series
YUCHIP guarantees to give you fashionable, cost-effective products, have a perfect structural design and high definition display. We believe that quality comes first before cost.
We also make sure to integrate the most updated technology into our products one way or another. We assure that every piece of equipment has the best performance, from our indoor to outdoor products, and that goal keeps us running for decades.
And one of our most advanced LED Displays is the Rental Q series. The design is for outdoor use, but you can also place them indoors. It presents a new way of advertising, event setup, and other LED purposes.
What Makes Rental Q Series Advanced?
What makes you believe if a thing suits you? Does it have to be perfect or just efficient?
- HD Visual Effects
What’s more promising than a catchy and high-definition display? The vivid visual effects bring unprecedented enjoyment and elevate advertising value.

- Structure and Design
The outdoor rental Q series utilizes a high-precision cast aluminum material that is perfect splicing without gaps. High-quality plugs also ensure reliability.
- Quick Maintenance
The display adopts a snap-in design, making it easy and effective installation and maintenance.
- Cabinet Connection
The unique design allows the upper and lower cabinet to connect in just a second. Plus, you can adjust the cabinet angle to make an arc if you want to do so.
It can make a positive to negative 10 degrees arc without any effect on the display performance.
- Anti-Damage Design
Each cabinet has sloping bottoms, which are perfect for transport and moving. We designed them to protect LED lamps, avoid collision to mask and plastic chassis, and cabinet stability.
More products are coming, for sure. And YUCHIP prepares well to deliver them to you with a smile.
