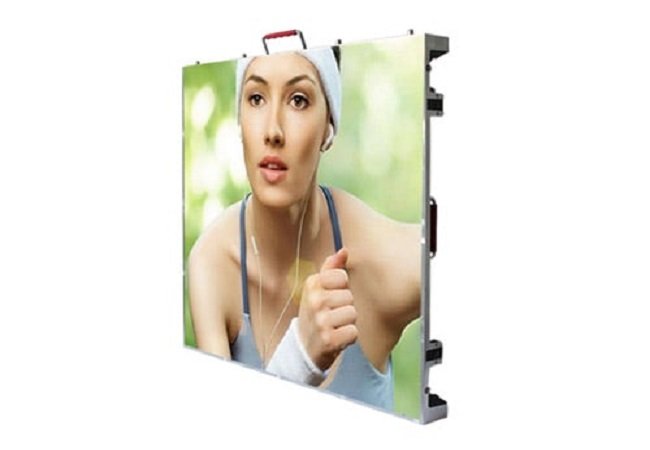

Outdoor Rental B Series

B Series best suits your indoor or outdoor rental purposes. It has an ultra HD effect which results in vivid and crystal-clear images, videos, and animations.

Its wide viewing angle allows a large audience to see the content especially advertising ads and campaigns.



  • Product Features
  • Parameters
  • Related Videos
  • Ultra HD Picture Quality

High resolution brings a light display effect. It is an ideal embodiment of the new generation of ultra-high-definition LED display technology. Pixel pitch is 2.5mm.

  • Design and Good Uniformity

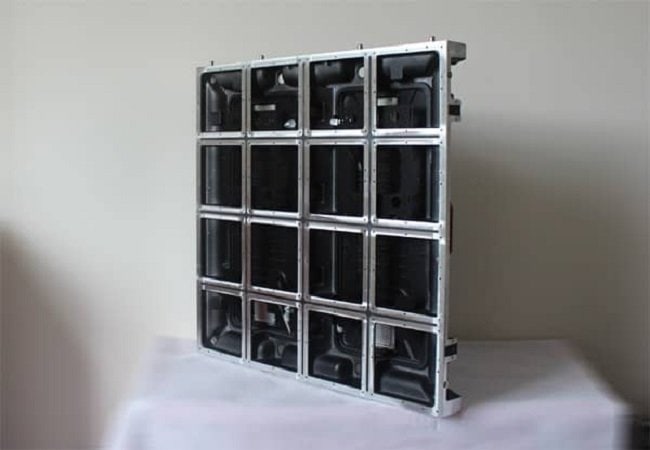

Die cast aluminum cabinets guarantee you a flat and seamless screen. It has good uniformity, and the dot-to-dot correction technology provides you a pure image with excellent gradation.

  • Wide View Angle

Vertical/horizontal: 140°/140°, broadcast-level color gamut, CT and brightness adjustable，more appropriate for long-time watching.

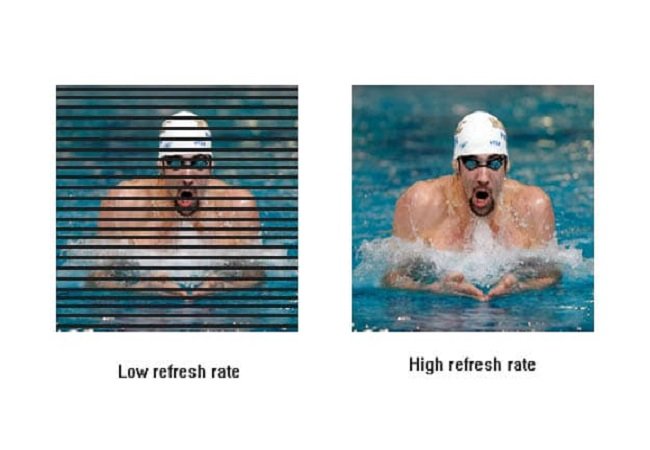

  • Smooth Display Image

Smooth display image is realized shooting with 2000HZ refresh rate even under 1/2000 professional shutter camera, meeting the demand of live feed switching.

Model/Type

P5

P6.67P8

P10

Pixel Pitch (Mm)

5

6.678

10

Pixel Configuration

SMD2727

SMD3535

Pixel Density (Dots/㎡)

40000

2254515625

10000

Module Resolution (W×h)

64×32

48×2440×20

32×16

Module Size （mm）

320×160

 254×128

320×160

Cabinet Resolution (W×h)

192×192

144×144120×120

96×96

Cabinet Size (Mm)(W×h）

960×960

 640×640 512×512

960×960

Cabinet Weight (Kg）

30

14.5 14

50

Maintenance Mode

Rear

Cabinet Raw Material

Die-casting aluminum

Display Work Method

1/8 scan

1/6 scan1/3scan

1/2 scan

Single-point Brightness Correction

Yes

Single – Point Color Correction

Yes

White Balance Brightness （nits）

≥4500

≥6500

≥6000

Color Temperature (K)

3200-9300 (adjustable)

Viewing Angle (Horizontal / Vertical)

140/140

 120/120140/120

140/140

Gray Grade16bit14bit

16bit



Front/Rear IP Level

IP65

IP65 (Front), IP54 (Rear)

IP65



Deviation Of Center Distance Of Light – Emitting

<3%

Brightness /Chromaticity Uniformity

≥97%

Contrast

3000:1

Peak Power Consumption (W /㎡)

800

585800

1000

Average Power Consumption (W /㎡)

250

195350

520

Power Supply Requirements

AC90~264V，47-63（Hz）

AC 110V/220V, 50-60Hz

Frame Rate (Hz)

50&60

60

50&60

Grayscale Level

65536

4096

16384

Refresh Rate (Hz)

≥1920

Number Of Color Processing Bits

14bit

Video Playback Capabilities

2KHD，4KHD

Operating Temperature / Humidity Range (℃ / RH)

-20 – 60  / 10%-85%

Storage Temperature / Humidity Range (℃ / RH)

-20 – 60  / 10%-85%

Applicable Standards

CCC，TUV-CE，ETL



(Rental Q Series Front And Rear Maintenance)

YUCHIP Catalog
Download Latest Catalog

Related Products

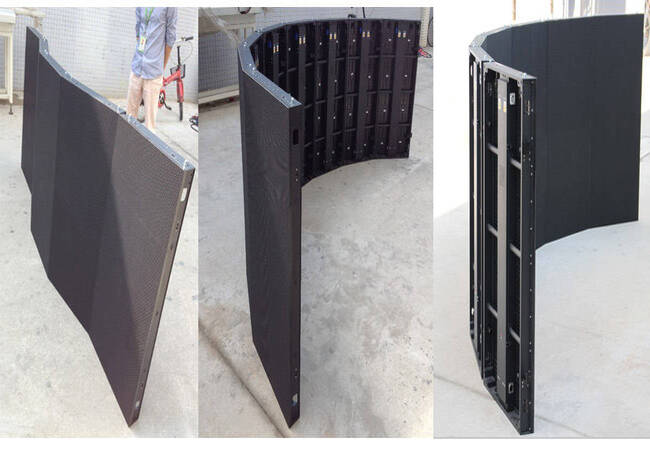

P6.25 Outdoor Rental Curved Screen

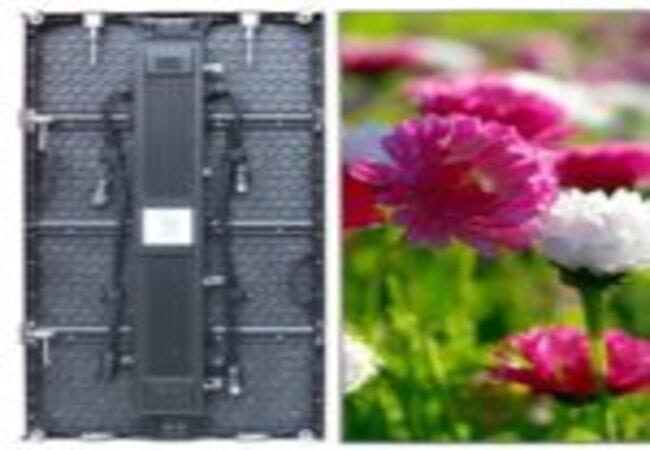

P6.25 Outdoor Rental LED Display
Outdoor P10 Rental Led Display
P10 Outdoor Rental LED Screen
OR12
P12 Outdoor Rental LED Display

Outdoor Rental B Series

High-quality outdoor rental LEDs are one of our mottos. With high-quality outdoor displays, you’ll get to achieve more possibilities in your endeavors.

And with ever-evolving advantages, we come up with a new viable solution to help you stand out.

LED Screen Rental Outdoor B Series
Outdoor Rental B Series

Outdoor Rental B Series Features and Advantages

Among our outdoor rental series, the B series has come a long way to development and advancement.

  • HD Quality

Outdoor rental B Series is the perfect embodiment of new technology and the new generation of ultra HD outdoor displays. It presents perfect picture quality and a long life span at the same time.

  • Design and Good Uniformity

Smooth display image LED Screen Rental Outdoor B Series 5

The raw material used is die-casting aluminum which shows the perfect choice for outdoor environments against outside factors. Besides, the design can also withstand indoor applications.

  • Wide Viewing Angle

Outdoor B Series has a wide viewing angle to help you cater to everyone, every audience, and passers-by. If it’s for advertising, it’ll surely catch your audience’s attention.

  • Smooth Image Display

The refresh rate is high, up to 1920 hertz, which indicates smooth image display. You can see the overall content vividly and no flicker and lapse, or delay.

  • Vast Application

Both indoor and outdoor applications are increasing everywhere, for example, in shopping malls, hotels, business centers, government offices, etc.
