P25 LED Curtain Screen


P25 LED Curtain Screen has a slim and lightweight design of only 82mm thickness. It also has a ventilating feature – air can transmit the display body directly, a ventilation rate of 50%, and a nicer turn-off effect.

Because of its lightweight features, the LED Mesh Flexible Curtain Screen is easier to install, maintain and dismantle (in case of changing installation area). It consumes little power than other display screens, so it’s energy-conserving and light-effective.

Perfect for outdoor installation, P25 LED Curtain Screen has a waterproof design and better heat dissipation technology.




P25 LED Curtain Screen has soft and flexible panels to bend to achieve some creative display if you wish to install it more pleasingly and attractively.

With its lightweight features, transporting, installation and maintenance come more feasible and effortless. Here are some of its features.

  • Good Ventilation

Ventilation is vital among outdoor displays. Ventilation indicates that the display screen can last for a long time considering the extreme heat it may experience outside. Thus, good ventilation is significant and essential.

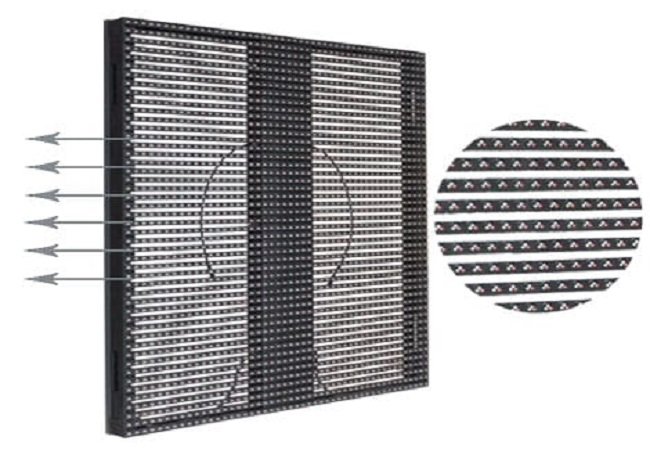

LED Mesh Flexible Curtain Screen has a ventilation rate of 50% that makes way for the air to transmit to the display body directly. Also, a sound ventilation system on a screen or in any product means there is very little chance for outdoor pollutants to stay and affect the product’s performance.

  • Better Heat Dissipation

For outdoor screens installed directly under sunlight, it is essential to equip them with better heat dissipation. It ensures the display will not overheat, considering some display screens do not have air conditioners to reduce the heat inside the system.

LED Mesh Flexible Curtain Screen has better heat dissipation technology; hence, it is a reliable and cost-effective product for your project.

  • Lightweight And Slim Design

The P25 LED Curtain Screen has slimmer and lighter panels. Its thinness and curtain properties add to its more delicate features making it easier to transport, install and maintain.

  • Energy-saving

Unlike other outdoor display screens, the P25 LED Curtain Screen is energy-saving since it consumes little running power. Whether you use it 24/7 or 8-hour, or 12-hour, it’ll significantly save much energy and contribute to power conservation.

  • Customization Options

To best achieve your target project, we provide you with options for customizing your curtain. You can choose P25 or other pixel pitches you desire with sizes, features, and installations. Our team will help you realize your preferred choices and create the blueprint, then manufacture and deliver your product the soonest time.

  • Technical Support

We will respond to your questions promptly right after receiving your inquiry. If you need guidance and issues with the product, we have technical, online support, and site visitation to best address any technical or product-related issue.

  • 3-5 Year Warranty

All of our products come with either 3 to 5 years warranty. It is our way of showing you our support after your purchase. Rest assured, we will be there right behind you in achieving your long-term goals with your LED display.

 P25 LED Curtain Module Specification

Pixel Pitch (mm)

25

Pixel Configuration

DIP346

Encapsulation

1R1G1B

Colors Matches

6:3:1

Module Size (mm)

10 x 1000

 P25 LED Curtain Cabinet Specification

Cabinet Size (mm)

500 x 1000

Cabinet Resolution (pixels)

15 x 60

Cabinet Pixels (pixels)

900

Cabinet Material

Extrusion Aluminum

Cabinet Weight (kg)

5.5

 P25 LED Curtain Screen Specification

Pixel Density(pixel/m²)

1800

Brightness(cd/m²)

≥ 6500

Brightness Adjusted

256 grade by software or by Auto-optic induced

Light Transmittance

70%

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥ 25m

Communication Distance(m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

Static

LED Driving Method

Constant driving current

Color Contrast Ratio

5000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP65

Working Temperature (ºc)

-20~+40

Stored Temperature (ºc)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours  (ideal environment)

Maintenance

Rear Side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 450W/㎡ ; Ave:150W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



(Indoor LED Curtain/Flexible LED Screen/ Soft LED Display)
