P13.3 Outdoor Easy Maintenance LED Display


Easy-maintenance LED displays are everywhere in the market now.

It has dual outdoor maintenance for the installation site that limits backside space, making it the perfect outdoor advertising option.




P13.3 Easy Maintenance LED display is also known as front-accessible LED signs that are to substitute traditional front-accessible LED sign;

It is installed as large-size LED billboards. As we know, normal front-accessible is always used for small size LED sign because of its front open structure;

  • Easy Maintenance

P13.3 maintenance LED screens have no screws between the LED module and cabinet, which can be easier to disassemble and install; it only takes a few seconds to disassemble.

P13.3 dual care LED screen supports front side maintenance and back and rear side LED screen maintenance.

  • Space-saving

The dual outdoor maintenance LED display, for installation site that backside space limited, it’s a perfect option of this double maintenance which allows front maintenance and not need backside space.

LED Module Parameter
Pixel pitch (mm) 13.3
Pixel configuration 1R1G1B
Encapsulation DIP346
Colors matches 6:3:1
Module resolution (pixels) 24 x 24
Module pixel 576
Module size (mm) 320 x 320
LED Cabinet Specification
Cabinet size (mm) 960 x 960 x 150
Cabinet resolution (pixels) 72 x 72
Cabinet pixels (pixels) 5184
Cabinet material Steel
Cabinet weight (kg) 55
LED Display Specification
Pixel density(pixel/㎡) 5627
Brightness(cd/㎡) ≥7000 (adjustable)
Brightness adjusted 100 grade by software or by Auto-optic induced
View angle Horizontal 110°; Vertical 70°
Best viewing distance (m) ≥12m
Communication distance (m) <100meter by Internet Cable (without Relay; Multimode fiber cable < 500m; Single-mode
fiber cable < 20km
Display work method Static
LED driving method Constant driving current
Color contrast ratio 1800:1
Gray Grade 16bit
Display Color 439, 804, 651, 110
Refresh Frequency (Hz) ≥600
Picture display method Intellective control technology, test-itself technology, correct technology, Synchronization
Control
Input signal DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting)
System operating WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level IP65
Working temperature (ºC) -20~+60
Stored temperature (ºC) -30~+80
Operation humidity (RH) 0-95%
Display Lifetime (hours) 10 years or more (natural environment) 100000 hours (ideal environment)
Maintenance Front & Rear
Working Voltage AC110 / AC220V±10% 47~63HZ
Out of controlled dot ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)

(The Biggest Outdoor Commercial Advertising Display In South America)

P13.3 Outdoor LED Display

All technology advancement in the world mostly has only one purpose – to ease human lives. Some have natural processes, while some go a long way, but the bottom line always ends in improvement and convenience.

Outdoor displays, an example, ease everyone in various industries. Aeronautics, medical, information, recreational, advertising, etc., are a few of them. Over time, more and more fields are starting to use LED displays because LEDs are simply valuable and helpful.

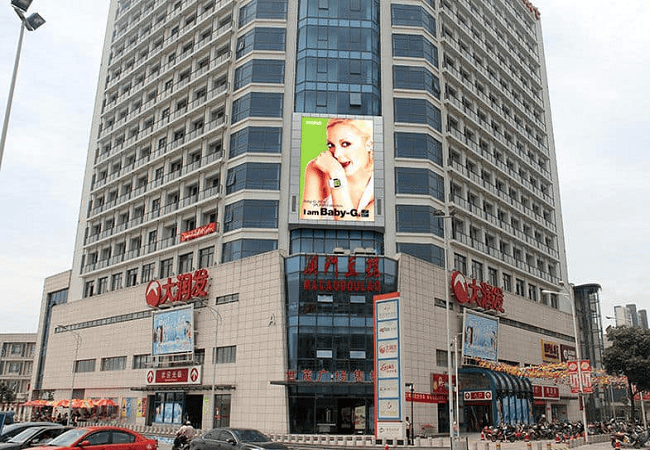

Outdoor P13.3 Easy Maintenance LED Display
P13.3 Outdoor Easy Maintenance LED Display

YUCHIP, a leading LED display manufacturer from China, belongs to those companies whose purpose is no other than aim all firms to stabilize. Our products do not help you advance one way or another but help you preserve your progress.

Among our outdoor LED displays, P13.33 is the most known and prominent because of its distinguishing features.

Features

  • Easy Maintenance

We look at the equipment we buy if we can maintain it quickly since we don’t want momentary efforts and costs from time to time. Needless to worry, our P13.33 comes with accessible maintenance features.  You can choose from Easy Maintenance LED display or Dual Maintenance.

Outdoor P13.3 Easy Maintenance LED Display
P13.33 Front Maintenance LED Display

The Easy Maintenance one has front-accessible that makes convenient maintenance from time to time.

It involves the use of a magnet to detach the module and check the internal parts. While in Dual, it comes in two ways- front and rear.

Two accessible ways make maintenance even more convenient. You can do it from the back through unlocking screws and in front through a magnet.

  • Space Saving

Because of its dual maintenance features, you can put them even in a space-limited area. If the backside isn’t good enough to check the parts, the front can be the answer.
