P16 Outdoor Perimeter LED Display


P16 Outdoor Perimeter LED Display utilizes soft LED module, soft beam on top of each cabinet; adjustable back brackets, changing leaning angle as needed and HDMI, SDI signal input, single-mode fiber optic cables connection.




  • P16 1RGB perimeter LED screen
  • Cabinet size: 1024x768mm, total 220 cabinets;
  • Soft LED module, Soft beam on top of each cabinet;
  • Adjustable back brackets, changing leaning angle as needed.
  • HDMI, SDI signal input, single-mode fiber optic cables connection.
  • Outdoor P6, P8, P10, P16 SMD, DIP sports perimeter LED display, LED display scoreboard, solution provider.
  • P16 outdoor perimeter LED display is an ideal display for wide sporting events. You can use it as scoreboards display, time clock, advertising, perimeter displays.
  • Perimeter LED display gives the spectators a clear visual of the game’s status, especially for those sitting at the back.
  • While timeout, you can play various advertising content to achieve higher brand awareness possibility aacknowledge the game’s sponsorsame, if there are any.
  • Perimeter displays have IP65, so it is waterproof, dustproof so needless to worry about sudden weather changes.
  • P16 Outdoor Perimeter LED Display has easy assemble and dismantling features, and it requires less workforce during installation.
Pixel Pitch (mm)

16

Pixel Configuration

1R1G1B

Pixel Density (pixel/㎡)

3906

Module Resolution (WxH)

20*20

Module Size (mm) (WxH)

320*320

Brightness (cd/㎡)

≥8000

Viewing Angle (H/V)

110/70

Cabinet Resolution

60*60

Cabinet Size (mm)

960*960*150

Cabinet Weight (kg)

50

Refresh Rate (Hz)

≥1000

Max. Power Consumption (W)

850

Maintenance Mode

Rear

Raw Material

Steel

Contrast Ratio

1800:1

Color Processing Bits

16 bit

Operating Temperature (C/RH)

-20~+60/0-95%

Storage Temperature (C/RH)

-30~+80/0-95%

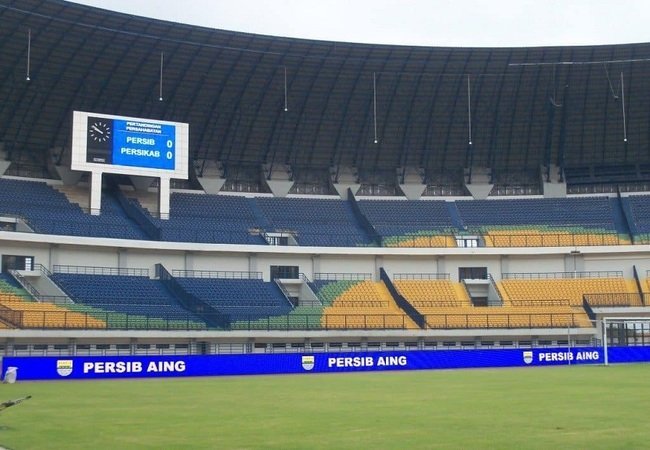

(P16 Sports Stadium LED Display/ LED Scoreboard In Hungary)
