P6 Outdoor Dual Maintenance LED Display
It has a high contrast ratio of 4000:1 and has dual maintenance modes; front and rear maintenance.
Also, it utilizes 1RGB DIP246 and has high brightness of up to 8000cd/sqm and a resolution of 22477-pixel pitches per square meter.
- Product Features
- Parameters
- Related Videos
1. Suitable for LED display projects that limit installation site backside space;
2. P6 Dual Maintenance Led Display is utilizing DIP246 LED lamp with stable quality and good waterproof effect;
3. High brightness up to 8000cd/㎡, and special requirement outdoor LED screen projects can reach 10,000nits;
4. There is no screw between LED modules and LED panel for fast and easy maintenance;
5, P6 Dual Maintenance Led Display is of high contrast ratio at 4000:1 to present real and natural color;
6. Space-saving: For an installation site that backside space limited, it’s a perfect option for this dual maintenance which allows front maintenance and not need backside space
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 6 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP246 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 48 x 48 |
| Module pixel | 2304 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 960 x 960 x 150 |
| Cabinet resolution (pixels) | 144 x 144 |
| Cabinet pixels (pixels) | 20736 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/㎡) | 22477 |
| Brightness(cd/㎡) | ≥7500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥6m |
| Communication distance (m) | <100meter by Internet Cable(without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜20km |
| Display work method | 1/6 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥2800 |
| Picture display method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity (RH) | 0-95% |
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
(P6 Outdoor Rental LED Display Aging Test)

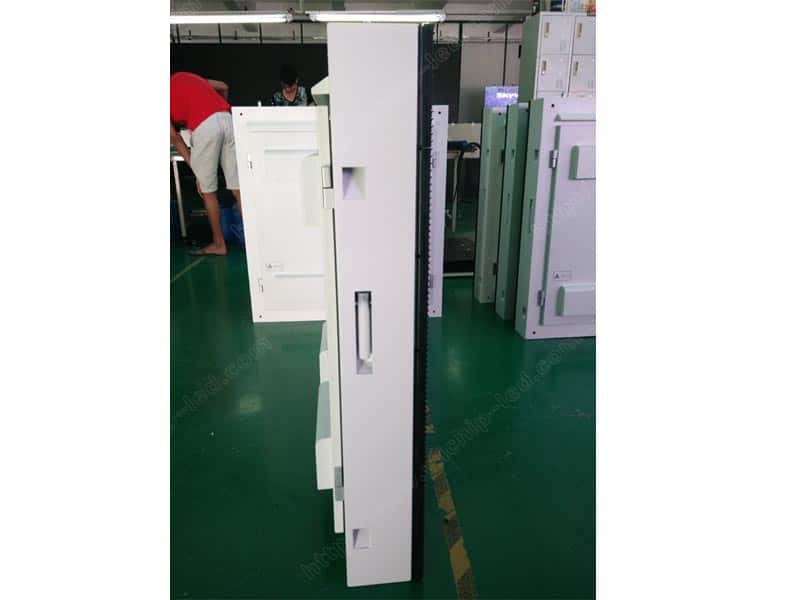

P6 Outdoor Dual Maintenance LED Display
P6 Outdoor LED Display offers easy maintenance features, two-way; front and back maintenance.
