P1.56 LED Module
The P1.56 LED Screen Panel is a pixel pitch for indoor and small audience events such as business conferences, security rooms, and traffic monitoring agencies.
With clearer visuals and high resolution, it gives accurate details of the happenings such as incidents, accidents, and natural occurrences around us.
It has all the features you’ll look for in an indoor high-definition display, including refresh rate, sound brightness level, easy maintenance, and long lifespans. Also, it is applied to different indoor occasions where outstanding sight is necessary, such as exhibits, trade shows, museums, theaters, and more.
Should you be interested in getting a P1.56 LED Screen Panel, please send us a message.
- Parameters
- Features & Descriptions
- Related Videos
P1.56 LED Module Specification | ||||||
| Pixel Pitch (mm) | 1.56 | |||||
| Pixel Configuration | SMD0808/ SMD1010 | |||||
| Encapsulation | 3 in 1 | |||||
| Colors Matches | 6:3:1 | |||||
| Module Resolution (WxH) | 150 x 168.75 | |||||
| Module Size (mm) | 96 x 108 | |||||
P1.56 LED Display Specification | ||||||
| Pixel Density（pixel/m²） | 640000 | |||||
| Brightness（cd/m²） | 800 (Optional) | |||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | |||||
| View Angle | Horizontal 160°; Vertical 160° | |||||
| Best Viewing Distance (m) | ≥ 1m | |||||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||
| Display Work Method | 1/27 Scan | |||||
| LED Driving Method | Constant driving current | |||||
| Color Contrast Ratio | 5000:1 | |||||
| Gray Grade | 16bit | |||||
| Display Color | 439, 804, 651, 110 | |||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | |||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | |||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||
| Control System | ||||||
| Front/Rear IP Level | IP43 | |||||
| Working Temperature (ºc) | -20～+40 | |||||
| Stored Temperature (ºc) | -40～+80 | |||||
| Operation Humidity (RH) | 0-95% | |||||
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) | |||||
| Maintenance | Front | |||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | |||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | |||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) | |||||
FEATURES
The P1.56 LED Screen Panel has the following features:
- Dual Maintenance Design
The P1.56 LED Module comes with very convenient maintenance methods. With its dual ways (front and rear), you can choose which side is more accessible and comfortable for you. Either way, both come with a convenient process, and we will provide you with the necessary equipment for the process (if you opt to do the maintenance by yourself).

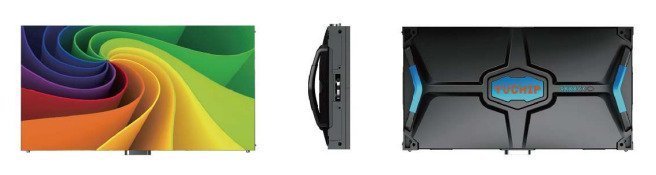

- Unprecedented Presentations
Clearly, with a small pixel pitch, you can expect the P1.56 LED Screen Panel to give you unprecedented visuals. It has a reliable performance with an extended lifespan. Also, it has excellent refresh rate and sound brightness level combinations partnered with exact and accurate hue, saturation, and other color features.
- Versatility
The P1.56 LED Screen Panel is applicable in numerous indoor locations. You may use it for theater areas, museums, exhibits, trade shows, conferences, and advertising. It is also a prevalent product for traffic agencies, offices and establishments, banks, hotels, and other event halls.
- 3-5 Year Warranty
The product comes with a warranty. It may vary from three to five years. Also, even after the warranty period, we’ll always be ready 24/7 to serve and answer your inquiries.
CATEGORY
You can find the P1.56 LED Module in the following product and solution series.
- High-resolution LED Panel
- Indoor Fixed LED Display
- Conference LED Screen
- Flexible LED Screen
- LED Theater Screen
- Control Room Display Screen
The P1.56 LED Display Panel is also available in other product series. We are more than happy to customize the pixel pitch you need for your LED screen project for you if the pixel pitch you need.
Also, you may ask us to have different materials components or adjust some specifications based on your desired project outcomes.
PROJECTS/RELATED POSTS
The P1.56 LED Screen Panel is utilized in our Algeria project. Here’s the link: LED Screen Algeria: YUCHIP’sP1.56 LED.
Also, if you opt to know other advantages, features, benefits, and other FAQs about the product, you may check this informative blog: P1.56 Indoor Display: Ultra HD Video Wall.
