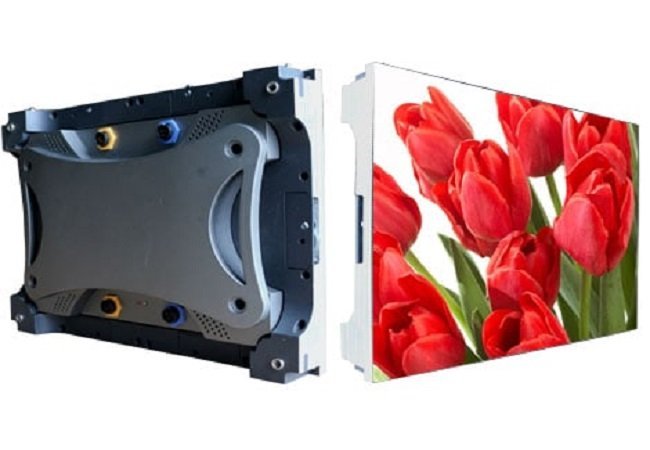

P1.9 HD LED Display
Indoor Ultra HD LED Display sets the new standard for indoor display. It uses high-quality LEDs to achieve a high-resolution display, vivid color, wide viewing angle, and hi-tech ambiance.
- Product Features
- Parameters
- Related Videos
- Ultra HD LED Display Pro has a 16:9 ratio of width and height, which can combine easily.
- It provides seamless stitching, ultra-wide view angle.
- A pure image with superb gradation brings a delicate display effect.
- You can maintain it from the front side, which makes it more convenient to install and maintain.
- It features low brightness and high gray level (16bit), high color revivification degree.
| Pixel Pitch (mm) | 1.9 |
| Pixel Configuration | SMD0808/1010 |
| Pixel density (dots/㎡） | 286225 |
| Module resolution (WxH) | 128*108 |
| Module size (mm) | 200(W)*168.75(H) |
| Module weight | 0.4 kg |
| Max.Power Consumption | 40 |
| Cabinet Module | 2*2 |
| Cabinet Resolution | 320*180 |
| Cabinet Size (mm) | 600 (W) x 337.5 (H) x 80 (D) |
| Cabinet Area (㎡) | 0.2025 |
| Cabinet Weight | 7.8 kg |
| Cabinet Level-up Degree | ≤0.2 |
| Maintenance | Front |
| Cabinet Raw Material | Front |
| White Balance Brightness (nits) | ≥800 (6500K) |
| Color Temperature (K) | 3200-9300 (adjustable) |
| Viewing Angle (H/V) | 160/160 |
| Deviation/Center Distance | <3% |
| Brightness/ Chromaticity Uniformity | ≥97% |
| Contrast | 5000:1 |
| Refresh Rate | ≥3840 |
| Color Processing Bits | 16 bit |
| Video Playback Capabilities | 2 KHD, 4KHD |
| Applicable Standards | CCC, TUV-CE, ETL |
(P1.9 Indoor HD LED Display)
