P10 RGB LED Panel
P10 RGB LED Panel utilizes 1R1G1B as its pixel configuration. A P10 RGB LED Module has a higher intensity and is adjustable, has good uniformity and performance. Also, it has a big viewing angle, and its cost is significantly lower than conventional outdoor panels.
P10 RGB LED Panel is ideal for event LED screens exposed to various weather conditions outdoors. Also, it has easy installation and dismantling features to ease owners or managers in completing them during a rental event.
Generally, event LED Screens have a high resolution that brings a soothing display effect and is an ideal embodiment of the new generation of ultra-high-definition LED display technology.
- P10 RGB LED Panel Product Features
- Parameters
- Related Videos
P10 RGB LED Panel is widely used for event LED screens and is perfect for outdoor installation because it has IP65 protections: waterproof and dustproof.
A P10 RGB LED Module then has the following features:
- Quick And Easy Cabinet Connection
The P10 RGB LED Panel is equipped with a fast lock system for quick and easy installation. The system can support a maximum of 50 pieces by hanging in a column.
Meanwhile, the fast lock’s design enables you to assemble cabinets in less than ten seconds quickly.
- Ceiling Installation
The P10 RGB LED Module is suitable for outdoor stages, promotional activities, concerts, and other makeshift accommodation and rental events.
- Ultra HD Quality
P10 RGB LED Panel has a high resolution that brings a light display effect and is an ideal embodiment of the new ultra-high-definition LED display technology.
- IP65 For Outdoor Use
Mainly for outdoor high resolution, the P10 RGB LED Module protection rate is IP65. Thus, it has waterproof and dustproof features, perfect for your various rental and stage events.
It’ll surely bring you a more exciting view and intense feeling together with the upbeat music and environment as event LED screens.
- Low Power Consumption
Because it utilizes 1R1G1B, the whole LED system consumes lower power thus, extends the LED display lifespan significantly.
We’ve integrated energy-saving technology into our LED panels which dramatically affects the quality of our products. Our energy-saving lamps are from Nationstar LED, which is one of our trusted LED display components brands.
- Control System
We are China’s leading LED display and solutions provider, and we take pride in our quality projects in 105 countries around the world. Also, we choose only the best brands to partner with us in delivering you our quality LED displays.
We trust only the following for our control system and software: Novastar, Linsn, LEDvision, LEDset.
Should you have questions and inquiries about our P10 RGB LED Panel or event LED screens, please message us at manager@yuchip.com.

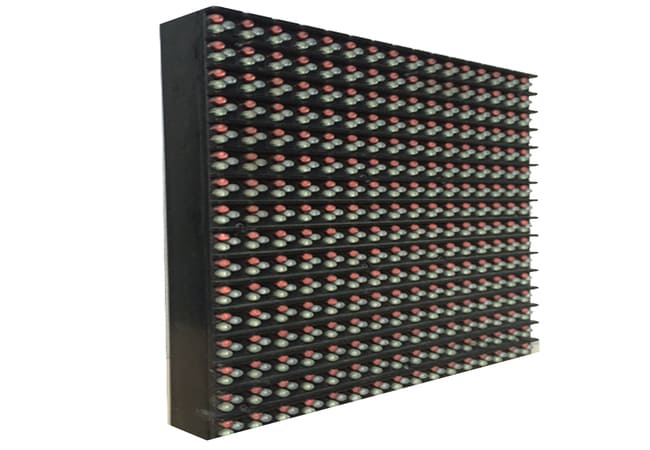

P10 RGB LED Panel Module Specification | |
| Pixel Pitch (mm) | 10 |
| Pixel Configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors Matches | 6:3:1 |
| Module Resolution (Pixels) | 32 x 32 |
| Module Pixel | 1024 |
| Module Size (mm) | 320 x 320 |

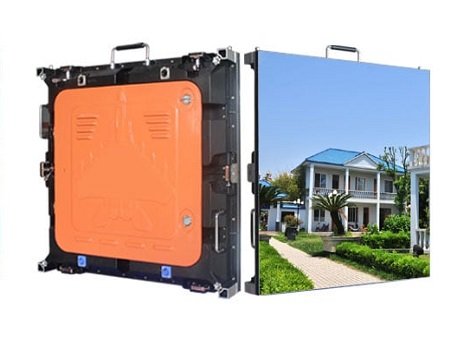

P10 RGB LED Panel Cabinet Specification | |
| Cabinet Size (mm) | 960 x 960 x 150 and customized |
| Cabinet Resolution (pixels) | 96 x 96 |
| Cabinet Pixels (pixels) | 9216 |
| Cabinet Material | Steel/Die-casting Aluminum/Aluminum |
| Cabinet Weight (kg) | 50 |
P10 RGB LED Panel Display Specification | |
| Pixel Density (pixel/㎡) | 10000 |
| Brightness (cd/㎡) | ≥8000 (adjustable) |
| Brightness Adjusted | 100 grade by software or by Auto-optic induced |
| View Angle | Horizontal 110°; Vertical 70° |
| Best Viewing Distance (M) | ≥8m |
| Communication Distance (M) | <100meter by Internet Cable without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display Work Method | 1/4 Scan |
| Led Driving Method | Constant driving current |
| Color Contrast Ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) |
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Control System | |
| Working Temperature (ºC) | -20～+60 |
| Stored Temperature (ºC) | -30～+80 |
| Operation Humidity (RH) | 0-95% |
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power Consumption | Max: 940W/㎡ ; Ave:400W/㎡ |
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
