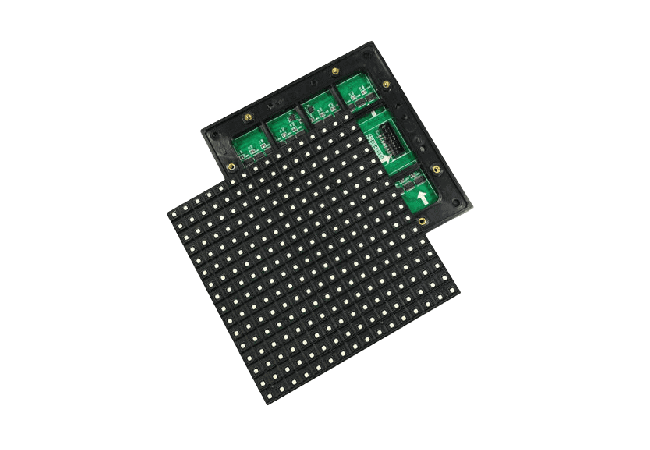

P10.42 Outdoor LED Module

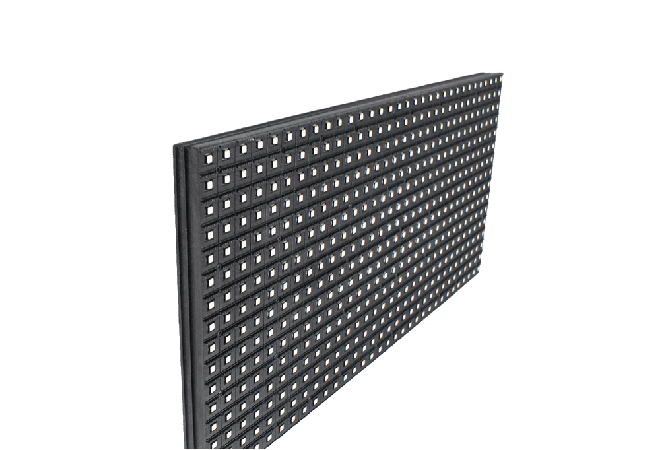

The P10.42 Outdoor LED Screen Panel is a standard product in our transparent LED display and outdoor rental series. However, you may also have it for different usage and customization.
It has the following features and advantages; waterproof, has easy maintenance, excellent video quality, supports various software systems, and has overall stable components.
YUCHIP’s recent project with the P10.42 Outdoor LED Module is a transparent LED screen to Europe. It has a total size of 86 sqm. You may click this link to learn more.
For more information, questions, and inquiries, please reach us through manager@yuchip.com.
- Parameters
- Features & Descriptions
- Related Videos
P10.42 Outdoor LED Module Specification | |
| Pixel Pitch (mm) | 10.42 |
| Pixel Configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors Matches | 6:3:1 |
| Module Resolution (WxH) | 24 x 24 |
| Module Size (mm) | 250 x 250 |
P10.42 Outdoor LED Display Specification | |
| Pixel Density (pixel/㎡) | 10000 |
| Brightness (cd/㎡) | ≥8000 (adjustable) |
| Brightness Adjusted | 100 grade by software or by Auto-optic induced |
| View Angle | Horizontal 110°; Vertical 70° |
| Best Viewing Distance (M) | ≥8m |
| Communication Distance (M) | <100meter by Internet Cable without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display Work Method | 1/4 Scan |
| Led Driving Method | Constant driving current |
| Color Contrast Ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) |
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Control System | |
| Working Temperature (ºC) | -20～+60 |
| Stored Temperature (ºC) | -30～+80 |
| Operation Humidity (RH) | 0-95% |
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Front/ Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power Consumption | Max: 940W/㎡ ; Ave:400W/㎡ |
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) |
FEATURES
The P10.42 Outdoor LED Screen Panel has the following features and advantages.
- Enhanced Video Display

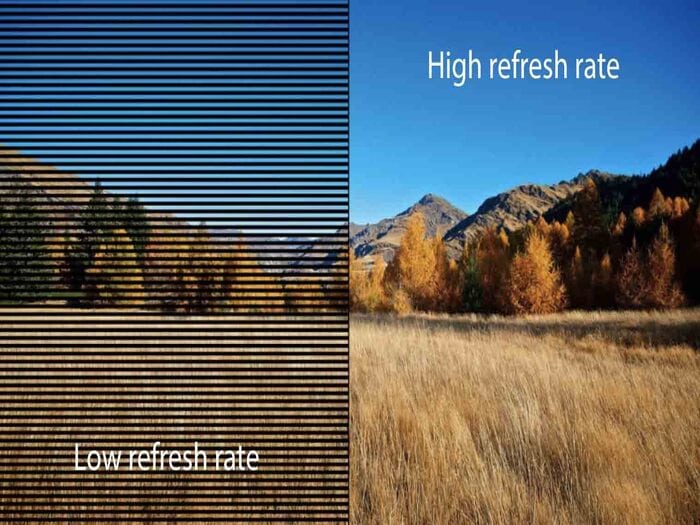

The P10.42 Outdoor LED Module has a high brightness level that reaches up to 8000 cd/m² and a refresh rate level of 600 Hz. Along with these, the P10.42 Outdoor LED Display Panel also has excellent color parameters such as contrast rate, grayscale, hue, and more. All of these specifications are thoroughly checked.
- Rigid Components
In manufacturing your most valued choice, we utilize nothing but the most rigid and trusted brands in the market. It includes Nationstar, a renowned LED lamp brand, Meanwell, and more.
- Control System
The P10.42 Outdoor LED Screen Panel works alongside various control systems such as Linsn, Novastar, LEDSet, LEDVision, and more. These systems work well with our product, are rich in security features, and are user-friendly.
- Waterproof Design
Outdoor LED screens should have waterproof protection, preferably IP65. Perhaps the P10.42 Outdoor LED Module is equipped with IP65 protection that helps it work steadily even under various weather conditions in different installation areas.
- Available In Various Series
The P10.42 Outdoor LED Screen Panel is a standard pixel pitch for transparent LED display and outdoor rental, but you may also have it for different usage. Please tell us how you want it for your project, the customization options, and more.
CATEGORY
We always welcome customization of various designs, sizes, and installations. Should you need a P10.42 Outdoor LED Module, below are the series it belongs to. Please get in touch with us for more questions or inquiries.
- Transparent LED Screen
- Commercial LED Display
- LED Curtain Display
- Transportation LED Screen
- Truck LED Advertising
- LED Display Ball
- Flexible LED Screen
- 3D LED Display
- Outdoor LED Screen Rental
- Trade Show LED Display
- Stage LED Screen
- Outdoor LED Screen
- Energy Saving LED Display
- LED Video Wall Rental
- Stadium LED Screen
- LED School Sign
- Hospitality LED Screen
RELATED PROJECTS/ POSTS
Here are some links/posts you may visit or check to know more about the P10.42 Outdoor LED Display Panel.
- YUCHIP P10.4 Transparent LED Display
- YUCHIP 86sqm P10.42 Transparent LED Display Exported To Europe
- P10.42 Outdoor Rental LED Display
