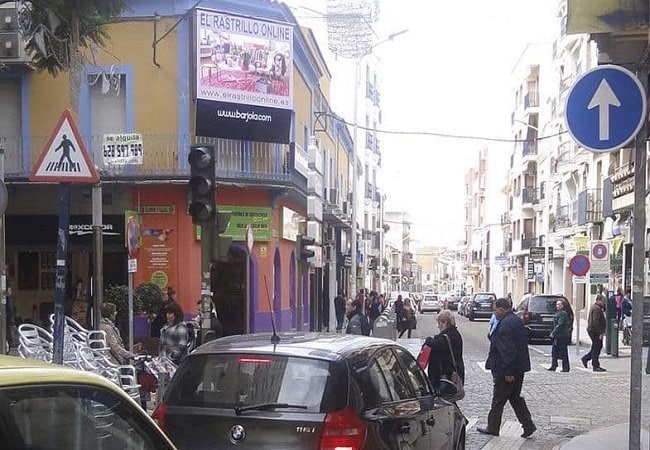

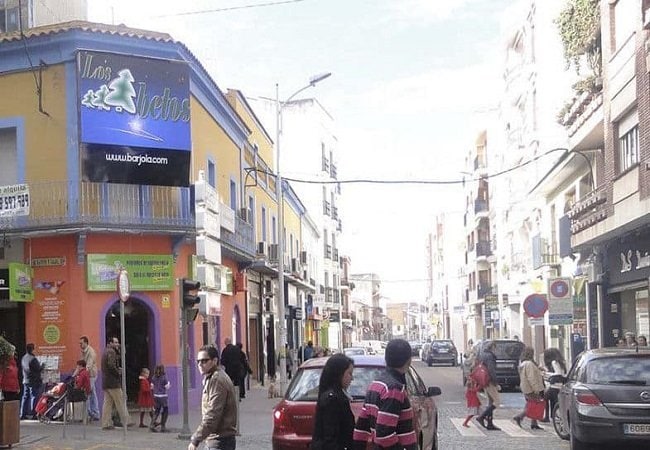

P10 LED Billboard


P10 LED Billboard is of high resolution 10000 pixels per square meters.

Its cost is much lower than years before, and it’s widely chosen for large-size outdoor LED billboard projects; standard LED cabinet of IP65, waterproof and dustproof.




1. P10 Led Billboard is of high resolution 10000 pixels per square meters;

2. P10 Outdoor LED billboard cost is being much lower compared to years before, and it’s widely chosen for large size outdoor LED billboards projects;

3. Standard LED cabinet of IP65, waterproof and dustproof;

4. High brightness up to 8000cd/㎡, and special requirement LED screen projects can reach 10,000nits;

5, P10 Led Billboard present clear, vivid image and video even under direct sunshine;

6. Short best view distance, for P10 outdoor LED display, the best view distance is above 8 meters; audience/potential consumers people passed by would enjoy a clear image standing above 8 meters.

LED Module Parameter
Pixel pitch (mm)10
Pixel configuration1R1G1B
EncapsulationDIP346
Colors matches6:3:1
Module resolution (pixels)32 x 32
Module pixel1024
Module size (mm)320 x 320

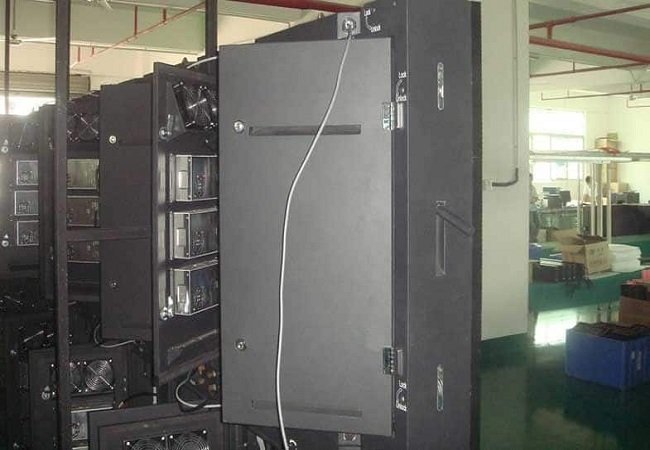

LED CABINET SPECIFICATION
Cabinet size (mm)960 x 960 x 150
Cabinet resolution (pixels)96 x 96
Cabinet pixels (pixels)9216
Cabinet materialSteel
Cabinet weight (kg)50
LED DISPLAY SPECIFICATION
Pixel density(pixel/㎡)10000
Brightness(cd/㎡)≥8000 (adjustable)
Brightness adjusted100 grade by software or by Auto-optic induced
View angleHorizontal 110°; Vertical 70°
Best viewing distance (m)≥8m
Communication distance (m)<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode
fiber cable < 20km
Display work method1/4 Scan
LED driving methodConstant driving current
Color contrast ratio1800:1
Gray Grade16bit
Display Color439, 804, 651, 110
Refresh Frequency (Hz)≥600
Picture display methodIntellective control technology, test-itself technology, correct technology, Synchronization
Control
Input signalDVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting )
System operatingWINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP LevelIP65
Working temperature (ºC)-20~+60
Stored temperature (ºC)-30~+80
Operation humidity (RH)0-95%
Display Lifetime (hours)Ten years or more (natural environment) 100000 hours (ideal environment)
MaintenanceRear side
Working VoltageAC110 / AC220V±10% 47~63HZ
Power consumptionMax: 940W/㎡ ; Ave:400W/㎡
Out of controlled dot≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave
length are both >10% depart to the normal one)

(P8 Outdoor LED Display Screen)
