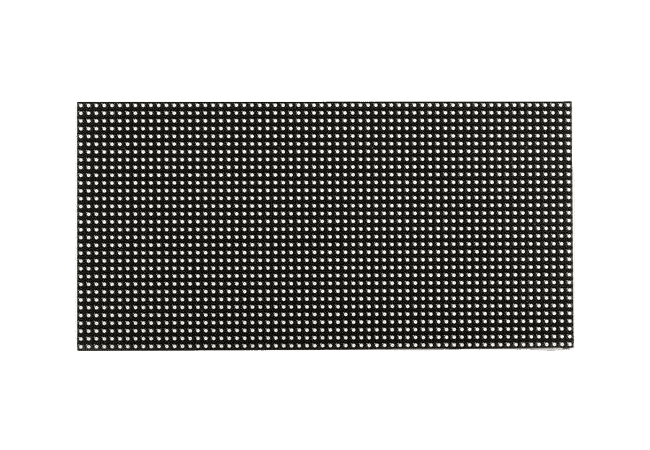

P10 LED Module

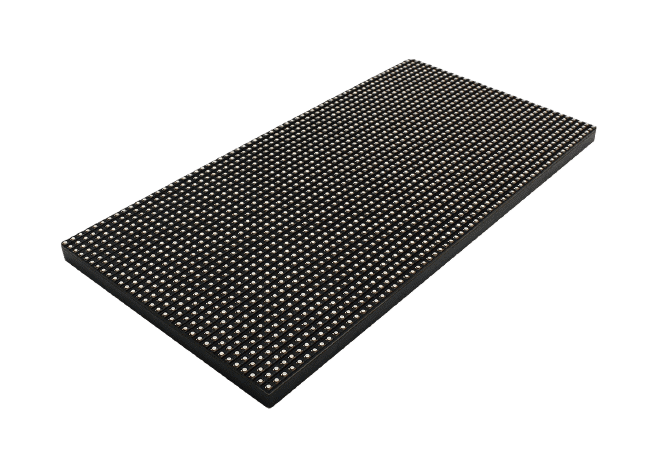

The P10 LED Screen Panel is the best LED screen choice for indoor events. If you’re considering a massive LED screen for a large crowd indoors, it is an ideal choice for you. It has excellent parameters that’ll surely match your needs for an expansive display.

The P10 LED Module has a wide viewing angle, excellent specifications, high refresh rate, brightness, and more. Also, it comes with sturdy material and components, and you may choose the cabinet material you prefer.

Since it usually comes in huge sizes and quantities, the P10 LED Display Panel adopts energy-saving technology, which then helps you with energy conservation alongside running a massive digital screen.

Meanwhile, it has more features and advantages. You may message us at manager@yuchip.com. Contact us now!




P10 LED Module Specifications

Pixel Pitch (mm)

10

Pixel Configuration

1R1G1B

Encapsulation

DIP346

Colors Matches

6:3:1

Module Resolution (WxH)

32 x 32

Module Size (mm)

320 x 320

P10 LED Display Specification

Pixel Density (pixel/㎡)

10000

Brightness (cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 110°; Vertical 70°

Best Viewing Distance (m)

≥8m

Communication Distance (m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/4 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥600

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Front/Rear IP Level

IP65

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature (ºC)

-20~+60

Stored Temperature (ºC)

-30~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

10 years or more( natural environment)

100000 hours( ideal environment)

Maintenance

Rear side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 940W/㎡ ; Ave:400W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



FEATURES

The P10 LED Screen Panel has the following features and advantages:

  • Rental Design

Rental Features

The P10 LED Module comes with a reliable rental design. These rental features are provided to ease operations such as installations and dismantling. Also, it helps in the mobility and transport of the product, especially for rental events.

  • Sturdy Material

We ensure that the product will serve you fully in the long run. We furnished it with a reliable component to ensure its long lifespan. The cabinet material, perhaps, can be steel, aluminum, and die-cast aluminum.

  • Unique Design

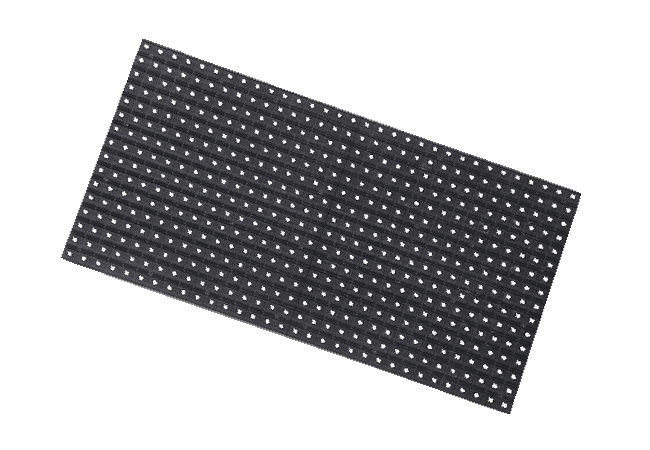

The P10 LED Display Panel has a unique design convenient for operations and aesthetics. Since it comes in a large quantity, often it has to be perfected with a uniform yet digital design.

  • High Contrast Rate

High Contrast Rate

The P10 LED Screen Panel passes through various inspections and tests before pulling it out of the factory. We measure the contrast, refresh, brightness, and other color properties in the display and screen tests.

Meanwhile, the screens result in a sheer and delicate color display and image quality with a higher refresh rate.

CATEGORY

You’ll see the P10 LED Module among the following product series and solutions below. We also welcome customization of its size, cabinet material, design, etc.

Should you have questions about the price range, inquiries, customization, and more, please send us a message at manager@yuchip.com

PROJECTS/ RELATED POSTS

The P10 LED Display Panel is featured in these pages/posts/projects below. You may visit the links to learn more about the product.

LED Outdoor Saudi Arabia
LED Outdoor Saudi Arabia
