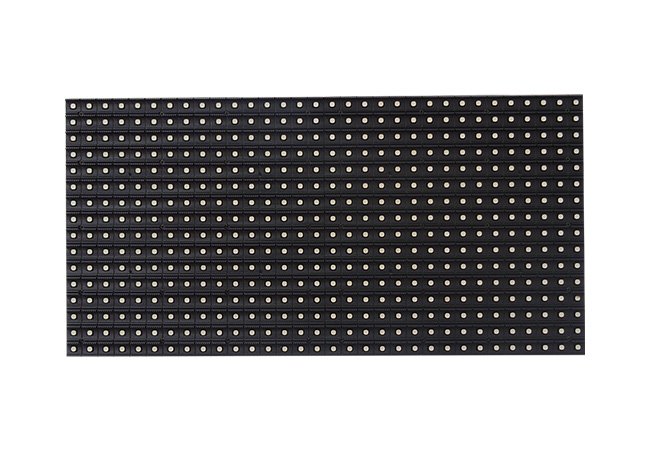

LED P10

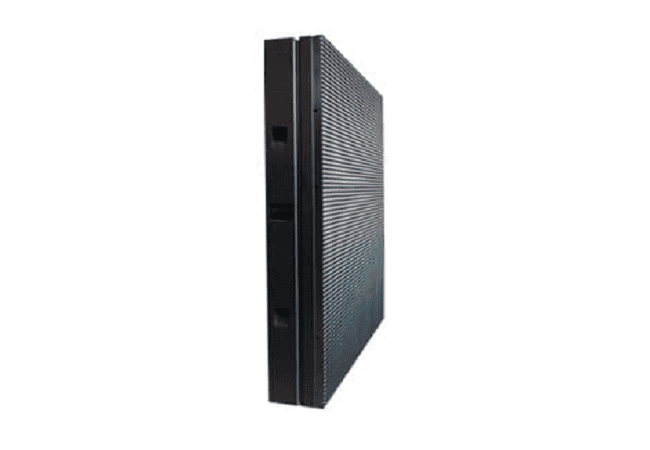

LED P10 Outdoor has a high resolution of 10000 pixels per square meter.  The LED P10 Panel size is 320x160mm, with a resolution of 32 x 16 pixels.

Due to LED P10 outdoor great advantages of IP65 waterproof, high brightness, and cost-effective, LED P10 is widespread globally. It’s a popular choice to build your large LED screen.

You can install LED P10 on a steel pole, wall-mounted, on a building roof,  or in other areas that need dynamic LED P10 outdoor.  We will provide you a detailed structure drawing, installation guide, and user manual.




  • Wide Viewing Angle. YuChip LED P10 uses an SMD3535 high-quality LED lamp, which has a large viewing angle at 140 degrees vertically and horizontally.
  • IP65 Waterproof and Dustproof. Every of our LED P10 panels front sides will inject high quality silicon, and backside PCB goes through the conformal coating. Even our receiving card inside the P10 outdoor cabinet must pass the conformal coating.
  • High Brightness. YuChip LED P10 PCB adopts top quality 1.6mm thickness, and the circuit layout uses a 1/2 scan design. It ensures you a high brightness and highly stable quality P10 outdoor.
  • Longer Life Span.  All our P10 outdoor adopt Meanwell power supply, electro-optic conversion ratio up to 82%, fast heat dissipation. With Nationstar’s top-quality LED, we guarantee you a 100,000 hours long life span outdoor LED screen.
  • Unique guide rain trough design, practical and reliable – P10 Outdoor LED Display with unique guide rain trough design, improving cabinet strength, prevents cabinet damage during transportation.

P10 LED Module Specification

Pixel Pitch (mm)

10

Pixel Configuration

1R1G1B

Encapsulation

DIP346

Colors Matches

6:3:1

Module Resolution (Pixels)

32 x 32

Module Pixel

1024

Module Size (mm)

320 x 320

P10 LED Cabinet Specification

Cabinet Size (mm)

960 x 960 x 150 and customized

Cabinet Resolution (pixels)

96 x 96

Cabinet Pixels (pixels)

9216

Cabinet Material

Steel/Die-casting Aluminum/Aluminum

Cabinet Weight (kg)

50

P10 LED Display Specification

Pixel Density (pixel/㎡)

10000

Brightness (cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 110°; Vertical 70°

Best Viewing Distance (M)

≥8m

Communication Distance (M)

<100meter by Internet Cable without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/4 Scan

Led Driving Method

Constant driving current

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥600

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Front/Rear IP Level

IP65

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature (ºC)

-20~+60

Stored Temperature (ºC)

-30~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

10 years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 940W/㎡ ; Ave:400W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)



(P10 SMD3535 Outdoor LED Display)

P10 SMD LED Screen Ultimate FAQ Guide



1. What Is P10 SMD LED Screen?



(P10 Outdoor LED Screen Aging Test in Workshop)

P10 SMD LED screen, or many sometimes refer to it as LED P10 panel, is an  LED digital sign with a dot pitch of 10mm. There is a 10mm distance between each LED pixel used in the LED module. There are around 10,000 dots per square meter LED module panel.

The P10 digital display is trendy and widely used for outdoor events and venues- though some also use it in significant indoor places like stadiums and arenas.

Just like aLikeoutdoor LED screen, the P10 LED screen can also display highly animated text, images, and video content to serve you with every LED display needs.

It has adopted the SMD LED module technology and dynamic scanning technology to better picture quality and affects stability. This LED screen can deliver high brightness that can reach up to 7500 nits.

P10 SMD LED screen display is cheaper than the DIP LED screen, yet it offers better display effects. For that very reason, there is greater demand for P10 SMD displays today in the market.

The P10 LED Screen is ideal for HD outdoor advertising and an LED background video wall for significant significance.



2. What Are The Key Features Of The P10 Outdoor LED Panel?



Wide Viewing Angle. The P10 SMD LED screen display can offer you and your ace a wide viewing angle. This sought-after LED screen delivers excellent visual performance within the angular range of 140 degrees horizontal and vertical viewing directions.

Light and Slim Panel Design. P10 LED screen is a sleek-looking LED screen that is lighter and slimmer than traditional LED panels. This feature makes your LED screen display easier to transport, lift, and install.

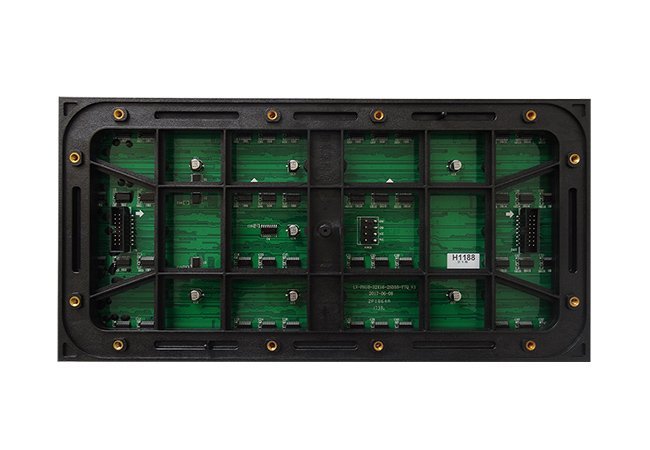

LED P10 Panel
LED P10 Panel

High Color Uniformity. The adopted SMD LED technology gives your P10 LED screen a full-color outdoor display with the highest color uniformity. Each LED pixel contains RGB colors for better color tone and mixture.

Weatherproof. P10 SMD LED screen is resistant to many weather conditions, especially from rain and moisture. It has a protection level of IP65, which is the recommended protection for outdoor digital displays.

High Refresh Rate.  With a P10 LED screen, you can expect a smooth image display with a high refresh rate of ≥480 Hz.

High Reliability and Wide Application. A P10 LED screen has a lifetime of 80,000 to 100,000 hours, depending on how you maintain it and its working conditions. The P10 display is a flexible and versatile technology. You can use it almost anywhere outdoors at any event.



3. What Is The P10 SMD LED Screen Specification?



Here is a sample specification of a P10 SMD LED outdoor. Please note that these values base on a single product. Some P10 LED screens sometimes utilize different LED technology and materials, resulting in a slight difference in specifications.

P10 SMD Outdoor LED Screen Specification
Specification Unit Parameters
Pixel Pitch mm P10
Pixel Density dot / sqm 10,000
Pixel Configuration RGB SMD
Brightness / Luminous Intensity nits ≥ 6500 -7500
Brightness Uniformity % ≥ 97 %
Brightness Adjustment 256 grades
Refresh Rate Hz 1920 / 3840
Frame Rate Hz 50 / 60
LED Cabinet (size) mm 960 x 960, and customized
Viewing Angle ° ≥ 140 (Horizontal and Vertical)
Viewing Distance m (meters) 10 – 100
Contrast Ratio 5000: 1
Operating Temperature Celsius degree -20 ~ +60
Operating Humidity % 10 % – 95 %
Main Materials Glass fiber, Aluminum, Carbon-based sed plastic
Supported Input VGA, DVI, HDMI, S-video, SDI, etc.
Protection Rate IP IP65
Operating Lifetime Hours 100 000
MTBF Hours 6 000



Please leave us a message on our website to further inquiries about our P10 SMD outdoor LED screen products?

4. What Does SMD Mean In P10 SMD LED Display?



SMD in P10 SMD LED screens refers to the LED technology utilized in creating the LED panel. It stands for Surface Mounted Diode.

P10 LED
P10 LED

SMD LED tells us about the pixel configuration or LED arrangement of LEDs used in the LED module -mounted onto the P10 LED module.

The light-emitting diodes are precisely soldered onto the LED substrate. After that, our engineers will cover it with an epoxy casing/resin.

The SMD LED technology is better than the first-generation LED technology, DIP (Direct In-Line Package) LED.

The DIP LED has a single LED encapsulation. In contrast, SMD technology has adopted a three-in-one RGB color integrated into a one-pixel unit for a better full-color LED image display.

SMD technology makes it possible to have a better-looking digital display without paying more money because an SMD LED is cheaper than the previous LED technology.

With SMD LED technology, you can have a digital visual display that is more natural-looking and less pixelated.

SMD LED also makes LEDs smaller, which is suitable for smaller electronic devices. That is another reason why SMD technology becomes famous in the LED industry.

SMD LEDs have a flat design that gives the LED screen a cleaner and more elegant look.



5. What Is The Difference Between P5 And P10 LED Screens?



When choosing an LED screen for commercial or non-commercial use, you have to require yourself to give attention to your LED display’s screen pixel pitch.

LED P5 vs P10
LED P5 vs. P10

The pixel pitch value is essentially the display resolution of the LED screens. The digit shown in the LED label (i.e., P10 and P5) is the breadth between the LED cluster (RGG SMD). Those spaces are the major game-changer in LED resolutions of LED signs.

P10 and P5 LED screens can have equal dimensions. Still, their pixel density and resolution will be a different 37 x 13 LED sign with a pixel pitch of 10mm; its screen resolution is around 96 x 32. In comparison, the P5 LED screen’s solution with the same dimension will be 192 x 64.

However, it does not mean that you will need to choose the LED screens with low pixel pitch. The resolution all relies on the distance of the end-users to the screen. LED screens with low pixel pitch like P5 are more suitable for closer viewing distances. And those with a higher P-value are ideal for far viewing distances.

If you fail to consider this thing as you purchase your LED screen, this might affect your LED display’s performance. It may cause obscurity or discomfort to your audience.



6. What Are The Standard Sizes For P10 LED Displays?



The LED modules of the P10 screen display come in different sizes. There are 320 mm x 160 mm, 320 mm x 320 mm, and 160mm x 160 mm measurements. Based on the LED P10 panel size, its cabinet size can be 960x960mm and others customized.

The good thing about the P10 outdoor LED display is that it is modular. It made use of several modules (LED P10) in manufacturing one outdoor LED display.

P10 Outdoor LED Panel
P10 Outdoor LED Panel

The P10 outdoor panel modules are linked together to achieve a large-scale P10 outdoor advertising screen/sign. Each P10 outdoor LED panel gap is so small that the LED display (P10) outdoor seems seamless. The spaces between the LED panels are almost not visible once mounted on the wall. These LED panels are configured to function together as one. Hence, a one-unit large LED screen is made possible.

If you think that the sizes of the P10 full-color advertising digital signs you can see in your cities are customizable, you are right.

For whatever outdoor LED display requirement you may have, you can achieve it by connecting multiple P10 outdoor LED panels. More giant screens require more LEP (P10) meetings and vice versa.

Talk to us about the LED display size you prefer, and we will make sure that you will have it.



7. What Is P10 SMD LED Display Control System?



Just like the other outdoor LED displays, two control systems are suitable for P10 outdoor LED displays.  These are synchronous control systems and asynchronous control systems.

P10 LED Display
P10 LED Display

The synchronous control system allows you to display text, images, and video contents directly to your LED screens from input sources such as digital cameras, DVDs, laptops, or computers.

Using the synchronous p10 led display control card, you will need your input source connected to your digital display. Synchronous control is a real-time control system that allows you to display your visual contents straight away.

Another type of control system is asynchronous. An asynchronous control system means that you do not always need to have your laptop or computer connected to your LED display. It means that your screen display and input source could work remotely or separately.

The content will be created and edited on a separate computer. A control card will then receive the file in your LED display via Wi-Fi, USB connection, or 4G connection. Once received, the file will save on your device memory, which you can play anytime.

The asynchronous control system is your preferred P10 LED display controller if there is a great distance between you and your digital display or the wiring connection is not convenient.



8. What Are The Typical Applications Of The P10 SMD LED Display?



P10 SMD LED displays to offer you and your audience a full-color, HD visual display with high brightness. It serves many purposes and can use in various ways. The well-known applications of P10 LED screens are as below:

Module LED P10
Module LED P10

LED Advertising Screens and Highway Billboard. The P10 SMD screen technology is ideal for delivering content or raising brand awareness in outdoor places such as busy streets and highways, parks, public markets, open fields, etc. P10 LED screen lets you deliver your content in a very noticeable and stylish way. P10 has a wide viewing angle and can reach up to 100 meters viewing distance so that you could cater to a bigger audience.

Scoring LED Display Board. The P10 digital signs are in demand as well in sports venues such as arenas and stadiums. Since sporting events draw hundreds and thousands of audiences and spectators, the LED display boards give all the viewers a better viewing experience of the competition or game. The P10 LED is used for scoring purposes and used as a live feed camera screen.

LED Background Video Wall. P10 LED video walls are beneficial during concerts and other big gatherings like outdoor masses, rallies, festivals, etc. It alleviates all the attendees’ viewing experience by giving the audience a better view and making the surroundings more colorful, alive, and inviting. It successfully makes the audience more engaged and involved.



9. What Are The Top Benefits And Advantages Of Using A P10 SMD LED Screen?



We present to you the top advantages of P10 screen displays. We put in writing the reasons why it is rewarding to invest in P10 outdoor LED panels:

Better Picture Quality. The P10 SMD LED screen offers a better display quality overall. Compared with previous digital displays, you can now display pictures and videos with better color quality, better resolution, sharper and more vivid content, and brighter images. P10 LED screen gives justice to your creative multimedia contents to let you effectively communicate or deliver your message and intentions.

P10 LED Display Cabinet
P10 LED Display Cabinet

Easy Configuration and Programming. The LED screens, in general, are easy to configure and program. It supports almost all types of connection and input options. The LED screen displays are considered a ‘plug and play device that allows you to display your content with so much ease. There are also various ways on how you can make p10 led display work. You can control it remotely or using the very electronic devices that you already have.

Slim and Lightweight Design. The SMD technology utilized in the newest P10 LED displays makes it possible to make your digital display even thinner and lighter. As you may agree, a slimmer screen makes a monitor and digital display more appealing and modern-looking. And since it is lighter, it is much convenient to transport and install.

Low Power Consumption and Low Environment Impact. The P10 LED displays consume less power compared to the older versions of digital displays. LEDs are more “green” than any other bulb or light source available in the market right now.



10. How To Get The Most Out Of  Your P10 LED Display?



Let us face it. Having an outdoor LED display is not a cheap investment. So be smart, not just in choosing the perfect LED display for you but also in how you will keep it in good condition after buying it.

LED P10
LED P10

So, either you are contemplating having LED displays for your upcoming events, or you just recently purchased or rented one, read these tips so you could fully utilize your LED display investment.

  1. Make sure you get an LED display with pixel pitch and size suitable for your audience’s needs. Are the pixel and screen size of your P10 LED screen matches your audience’s viewing distance and location? Choosing the suitable pixel and size will ensure that you and your target audience will have a good viewing experience.
  2. To ensure that your LED display will be in good physical and operating condition for a long time, have a regular maintenance schedule. Do not repair it without guidance or help from LED screen experts. Dust it regularly and only clean it using the recommended cleaning liquids.
  3.  Make sure to create dynamic and creative multimedia content. LED displays are supportive of complex and high graphic effects. Make sure to turn that feature to your advantage to capture your audience’s attention and interest.
  4. Transact with a reliable LED screen supplier. A cheap price tag does not always equate to practicality. Look for a reputable LED provider that offers high-quality P10 LED products for a fair price.



11. How To Program A P10 LED Module Using An Arduino?

The LED P10 screen display is an ideal option for outdoor advertising solutions. The P10 LED panel has LEDs mounted on the plastic board’s surface for better visual display results.

P10 Outdoor LED Display Panel Module
P10 Outdoor LED Display Panel Module



If you give necessary information on connecting a p10 led module to an Arduino Uno to have a running text display, follow the simple steps below.

First, prepare the P10 LED display module, the Arduino, and a connector.

Second, connect the P10 outdoor LED module and Arduino Uno. Follow the pin configuration that you can find below.

Third, connect the P10 LED module to a 5 (volts) power supply.

Fourth, install and complete the code for your P10 LED display. You will need to have supporting libraries that need to be installed. You may download the libraries from this link.

Lastly, once the upload and installation process is successful, your text display will appear on your LED module.

If you want a tutorial on how you could test your P10 LED module, you may watch this video.



12. What Are Helpful Tips In Purchasing A P10 LED Screen Display?



Listed below are some of the tips before purchasing your P10 LED screens.

  1. Determine the size of your P10 LED display. For outdoor advertising display, the bigger, the better.
  2. Decide on the location where you will install your LED display and what installation method you will use. Strategize in what place or position would your LED display draw more attention.
  3. If you put your LED display in an outdoor open area or a harsh environment, buy an LED screen panel with a higher protection rate.
  4. Look for a rental P10 LED display if you only use it for a limited amount of time, otherwise, invest in a high-quality P10 LED display.
  5. Purchase your P10 LED screens from a trusted supplier. Read reviews and ask around to know if you are dealing with a supplier with a good reputation.



13. What Company Is A Reliable Supplier Of High-quality P10 LED Displays?



P10 Outdoor LED Display
P10 Outdoor LED Display

We are a leading and trusted P10 LED solutions provider in China.

We offer first-rate LED display products made from excellent quality materials. We provide customized LED display products and services to our beloved clients here in China and abroad.

We have highly efficient staff and experts in the field who will assist you with every P10 outdoor or indoor LED display needs you have.

We are committed to providing you with a first-class LED product and services to realize your wanted LED screen project.

Do not hesitate to reach out to us and talk to us by any means, so we could start working on your project today.

Send Your Inquiry Today
