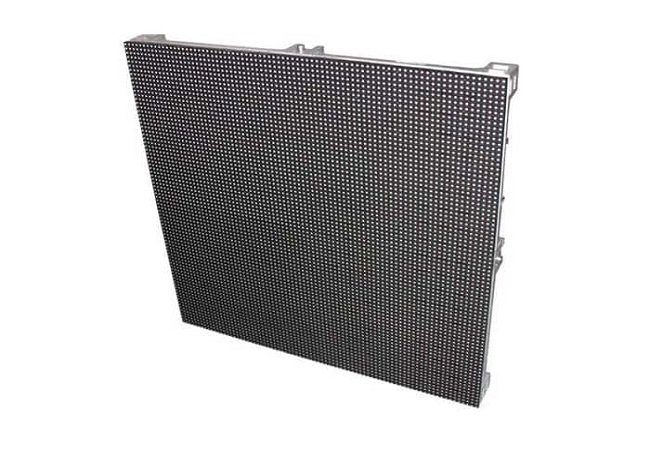

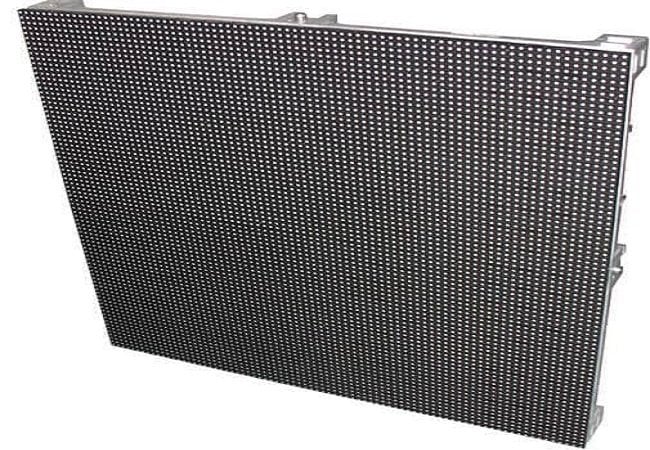

P10 Ultra Thin LED Display
P10 die-casting aluminum rental ultra-thin LED display is a kind of ultra-slim rental LED screen used to replace traditional type rental LED video walls of heavyweight and thicky cabinet.
- Product Features
- Parameters
- Related Videos
P10 die-casting aluminum rental ultra-thin LED display is a kind of ultra-slim rental LED screen used to replace traditional type rental LED video walls of heavyweight and thicky cabinet.
The most important two points are lightweight and fast assembly for rental ultra-thin LED display in events to use.
In an event like concerts, it used various audio and video equipment. Most of them are hanging up on truss, with limited concerts stage, that would be great to have lighter weight products to ensure the safety and stability of the stage structure.
Traditional rental ultra-thin LED display cabinet is nearly 170mm thick. Each 960mm x 960mm cabinet is about 55kg; it’s too heavy and costs more time and effort to finish rental LED screen assembly and dismantle.

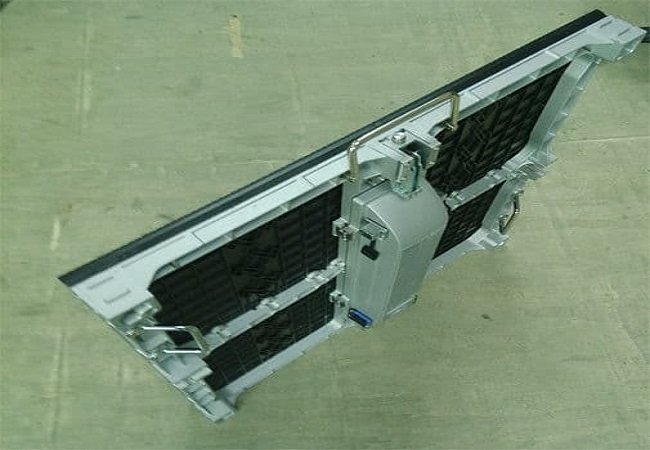

With this die-casting aluminum rental LED screen, it’s only 12.8kg-15kg per cabinet. It makes it much easier and quicker to assemble and dismantle rental LED video walls in events.
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 10 |
| Pixel configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 32 |
| Module pixel | 1024 |
| Module size (mm) | 320 x 320 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 640 x 640 x 100 |
| Cabinet resolution (pixels) | 64 x 64 |
| Cabinet pixels (pixels) | 4096 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 19kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density (pixel/㎡) | 10000 |
| Brightness (cd/㎡) | ≥8000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥8m |
| Communication distance (m) | <100meter by Internet Cable(without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥600 |
| Picture display method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature (ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity (RH) | 0-95% |
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63Hz |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
