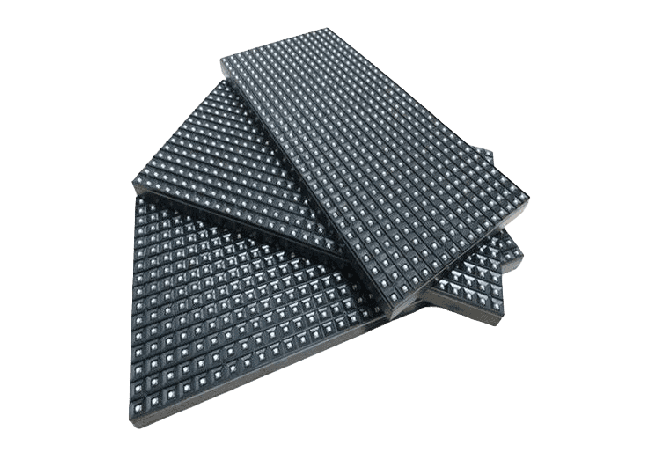

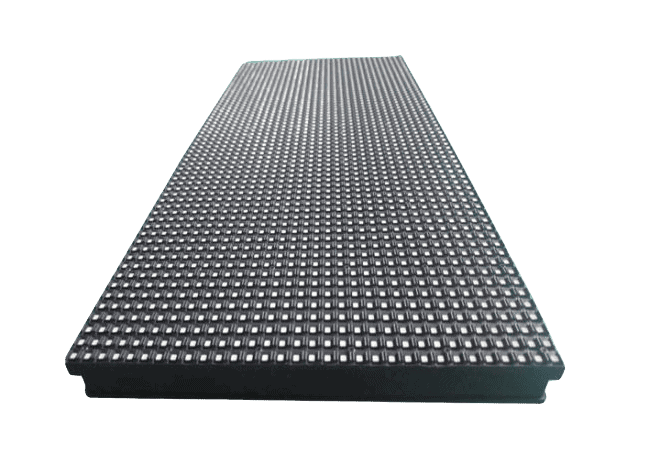

P12.5 Outdoor LED Module
Should you be looking for a massive LED screen for billboard and advertising use, here’s our P12.5 Outdoor LED Screen Panel. It is equipped with various features and designs that are ultimately suited for outdoor use.
It makes a quick maintenance process has user-friendly control systems that allow you to display simultaneous content, upload content conveniently, and a lot more.

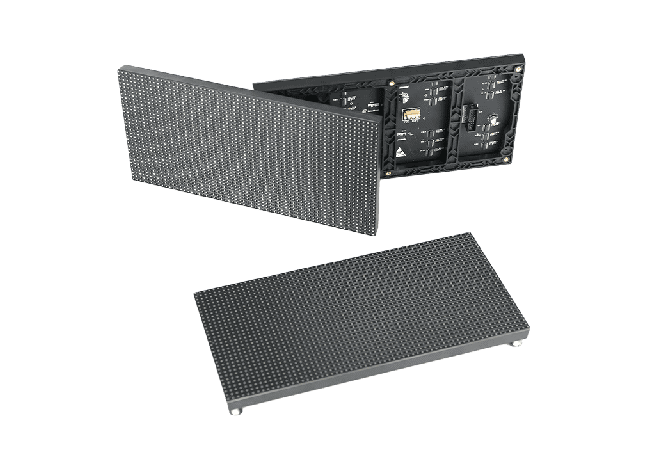

Looking around urban areas and cities, you’ll see the P12.5 Outdoor LED Display Panel prominent for building windows, rooftop, and open spaces installation.
Also, it comes in a complete manual set; we’ll provide you its function, features, operation, and we’ll be right with you in your inquiries and questions.
Contact us today! Please reach us at manager@yuchip.com.
- Parameters
- Features & Descriptions
- Related Videos
P12.5 Outdoor LED Module Specification | ||||||||
| Pixel Pitch (mm) | 12.5 | |||||||
| Pixel Configuration | 3 in 1 | |||||||
| Encapsulation | SMD3528 | |||||||
| Colors Matches | 6:3:1 | |||||||
| Module Resolution (WxH) | 24 x 16 | |||||||
| Module Size (mm) | 300 x 200 | |||||||
P12.5 Outdoor LED Display Specification | ||||||||
| Pixel Density（pixel/㎡） | 6400 | |||||||
| Brightness（cd/㎡） | ≥2000 (adjustable) | |||||||
| Brightness Adjusted | 100 grade by software or by Auto-optic induced | |||||||
| View Angle | Horizontal 140°; Vertical 140° | |||||||
| Best Viewing Distance (M) | ≥10m | |||||||
| Communication Distance（m） | <100meter by Internet Cable (without relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||||
| Display Work Method | 1/6 Scan | |||||||
| LED Driving Method | Constant driving current | |||||||
| Light Transmittance | 15% | |||||||
| Color Contrast Ratio | 1800:1 | |||||||
| Gray Grade | 16bit | |||||||
| Display Color | 439, 804, 651, 110 | |||||||
| Refresh Frequency (Hz) | ≥600 | |||||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through video processor converting) | |||||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP, WINDOWS 7, etc. | |||||||
| Front/Rear IP Level | IP65 | |||||||
| Control System | ||||||||
| Working Temperature (ºc) | -20～+60 | |||||||
| Stored Temperature (ºc) | -30～+80 | |||||||
| Operation Humidity (Rh) | 0-95% | |||||||
| Display Lifetime (Hours) | Ten years or more (natural environment) 100000 hours (ideal environment) | |||||||
| Maintenance | Rear side | |||||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | |||||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) | |||||||
FEATURES
The P12.5 Outdoor LED Screen Panel has the following features and advantages.
- Advertising Ideal
The P12.5 Outdoor LED Module is an ideal billboard for advertising. Looking around establishments and industrial areas, you’ll see this product in substantial building windows and open spaces. Its pixel pitch is balanced enough for close and distant viewing, whereas passersby and travelers can see content vividly.
- Sturdy Panel And Material
It is composed of nothing but dependable material carefully crafted in our factory. Also, in terms of integrating other brands and parts, we trust only the most reliable partners in the LED display market.
- Quick Maintenance Process
The P12.5 Outdoor LED Display Panel makes quick maintenance. During the process, there is no need to dismantle the module or the whole screen, as you’ll only need screwdrivers to detach both the front module and the rear part from the cabinet. Both ways work efficiently, are cost-saving, and require a minimum workforce.
- Simultaneous Display
With the product’s smooth and friendly software, you may simultaneously play content on several billboards. Also, if you opt for different content, you can choose some options. No need to worry; we’ll guide you with its features, settings, and functions.
- Waterproof And Great Protection
The P12.5 Outdoor LED Screen Panel is ensured with excellent outer core protection against outdoor factors. It is waterproof, dustproof and its cabinet can come in a corrosion-resistant design.
