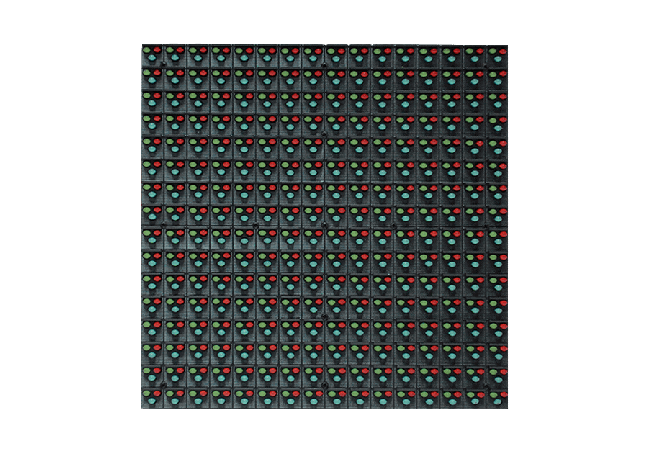

P12 Outdoor LED Module


The P12 Outdoor LED Screen Panel is an excellent choice for creating a colossal billboard for advertising. It has user-friendly software systems and is composed of quality and rigid components.

YUCHIP also designed it with excellent image and video display quality, making sharp and vivid images even at a distance. You may choose from a series such as aluminum, steel, and more for its cabinet material.

The P12 Outdoor LED Module also adopts energy-efficient technology as it uses advanced and approved equipment in the market. Apart from that, YUCHIP also promises to share and continue to guide the products’ various functions, features, and properties.

For more information, questions and inquiries, please message us at manager@yuchip.com.




P12 Outdoor LED Module Specification

Pixel Pitch (mm)

12

Pixel Configuration

3 in 1

Encapsulation

SMD3528

Colors Matches

6:3:1

Module Resolution (WxH)

24 x 16

Module Size (mm)

300 x 200

P12 Outdoor LED Display Specification

Pixel Density(pixel/㎡)

6400

Brightness(cd/㎡)

≥2000 (adjustable)

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (M)

≥10m

Communication Distance(m)

<100meter by Internet Cable (without relay;  Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/6 Scan

LED Driving Method

Constant driving current

Light Transmittance

15%

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥600

Picture Display Method

Intellective control technology, test-itself technology, correct technology,  Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through video processor converting)

System Operating

WINDOWS 98,  WINDOWS 2000,  WINDOWS XP,WINDOWS 7 etc.

Front/Rear IP Level

IP65

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature (ºc)

-20~+60

Stored Temperature (ºc)

-30~+80

Operation Humidity (Rh)

0-95%

Display Lifetime (Hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear side

Working Voltage

AC110 / AC220V±10%  47~63HZ

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



FEATURES

The P12 Outdoor LED Screen Panel has the following features and aspects.

  • Billboard Ideal

LED Screen Billboard

The P12 Outdoor LED Module is an excellent choice if you opt for a vast billboard screen on roofs, advertising sites, or stadiums. Its ease installation features are connectible modules, safe edges, and handles.

  • Energy-efficient

We think they may consume so much power to run when we see massive LED screens. However, most LED displays have utilized advanced technology today, including energy conservation. Perhaps, the P12 Outdoor LED Module is composed of energy-efficient components and parts of low power consumption yet make quality and dependable performance.

  • Easy Maintenance

As it often comes in colossal size, we designed the P12 Outdoor LED Display Panel with dual maintenance. Considering the space and the available sides, you may perform maintenance through the front or rear. Both come in an easy process, are cost-saving, and require less human resources.

  • Low Light Emission

The P12 Outdoor LED Screen Panel makes lower light emission than other billboard LED screen ideals as it has adjustable brightness. You may turn the brightness up or down depending on the light requirement of the environment and weather.

An LED screen with a low light mission makes low light pollution. Light pollution is a factor that hinders some astronomical studies and may also affect both humans and animals.

  • Enhanced Display Quality

Brightness

The P12 Outdoor LED Display Panel ensures an impressive video and image display with its specific performance and parameters. It has smooth transition effects clear and sharp images even at a distance.

CATEGORY

We always welcome customization of various designs, sizes, and installations. Should you need a P12 Outdoor LED Module, below are the series it belongs to. Don’t hesitate to contact us for more questions or inquiries.
