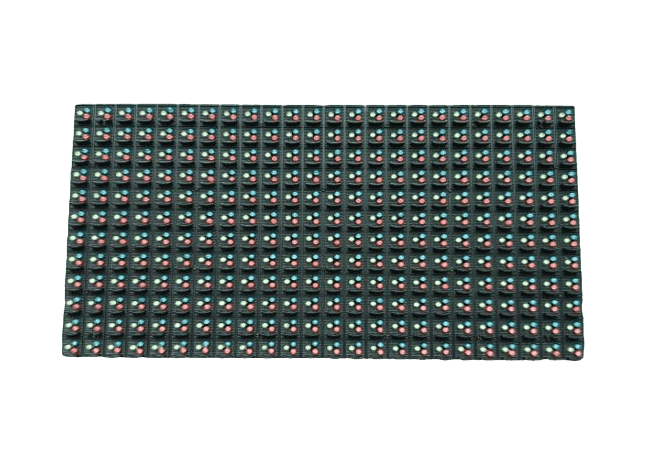

P13.33 Outdoor LED Module


The P13.33 Outdoor LED Screen Panel is maybe colossal; however, its power consumption is also justifiable. It has an overall balanced color and display specifications and is available in our various series.

We’ve included the P13.33 Outdoor LED Module in many of our product series and solutions so you can choose from and equate the best equipment for your desired project outcomes.

YUCHIP offers you nothing but the most reliable and quality LED products. We also provide services such as operation, installation, maintenance, and we’ll be 24/7 ready to answer your questions and inquiries.

For more information, please leave us a message at manager@yuchip.com.




P13.33 Outdoor LED Module Specification

Pixel Pitch (mm)

13.33

Pixel Configuration

1R1G1B

Encapsulation

DIP346

Colors Matches

6:3:1

Module Resolution (WxH)

24 x 24

Module Size (mm)

320 x 320

P13.33 Outdoor LED Display Specification

Pixel Density(pixel/㎡)

5627

Brightness(cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (M)

≥10m

Communication Distance(m)

<100meter by Internet Cable(without Relay;  Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/4 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥600

Picture Display Method

Intellective control technology, test-itself technology, correct technology,  Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98,  WINDOWS 2000,  WINDOWS XP, WINDOWS 7, etc.

Front/Rear IP Level

IP65

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature (ºc)

-20~+60

Stored Temperature (ºc)

-30~+80

Operation Humidity (Rh)

0-95%

Display Lifetime (Hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear side

Working Voltage

AC110 / AC220V±10%  47~63HZ

Power Consumption

Max: 940W/㎡ ; Ave:400W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



FEATURES

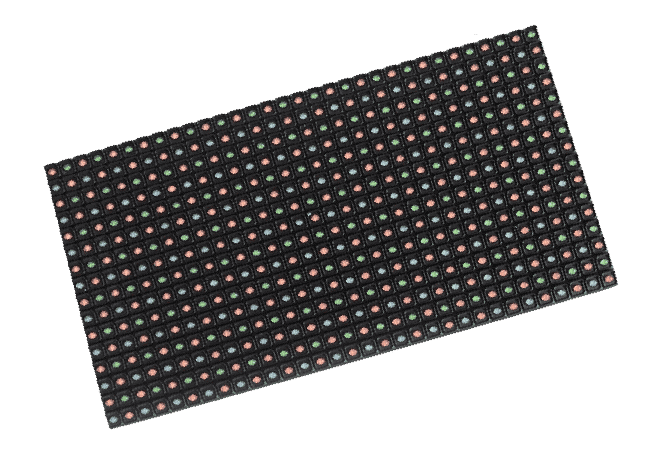

The P13.33 Outdoor LED Screen Panel has the following features and functions.

  • Dual Maintenance Design

The P13.33 Outdoor LED Module allows you to choose which maintenance process works best for you. You can choose to perform the procedure through the front or backside of the LED screen. Both are efficient and time-saving and only require a little equipment.

  • Balanced Color Specifications

Grayscale

We designed the product to be very articulate in image and video display. Our skilled experts in our factory carefully draft the product’s video and display components. Afterward, to check the specific performance of the diodes and the module, it undergoes the display, screen, and aging tests accordingly.

  • Available In Various Series

We’ve included the P13.33 Outdoor LED Display Panel in many of our product and solution series to cater to your needs. You can see the series in the category below.

  • IP65 Waterproof

We’ve redesigned our outdoor LED screens to become more sturdy despite the weather and uncertain conditions outside. THat’s why we have adopted waterproof technology in our

  • Energy-efficient

LED Display Energy Conservation

It adopts and adheres to follow energy conservation just like the rest of our products. The P13.33 Outdoor LED Screen Panel is maybe massive in size, but its power consumption is justifiable and could help you save electricity bills, etc.

CATEGORY

We always welcome customization of various designs, sizes, and installations. Should you need a P13.33 Outdoor LED Module, below are the series it belongs to. Don’t hesitate to contact us for more questions or inquiries.

Outdoor LED Screen
Outdoor LED Screen

RELATED PROJECTS/ POSTS

Here are some links/posts you may visit or check to know more about the P13.33 Outdoor LED Display Panel.
