P16 Outdoor LED Module
The P16 Outdoor LED Screen Panel has featured many of YUCHIP’s projects in Peru, Italy, Russia, Germany, etc. The P16 Outdoor LED Module comes in a very sturdy outlook, and the design is entirely waterproof and has adjustable brightness features.
Typically massive in size, the product is undoubtedly a costly investment. However, in YUCHIP, we give you its utmost features to serve you well and have a higher ROI in the long run.
Also, like other YUCHIP billboard products, the P16 Outdoor LED Display Panel passes through various tests, quality checks, and inspections to make sure all of the components and the whole system function fully and well.
Please let us know if you need a P16 Outdoor LED Screen Panel for your stadium, concert, advertising need, etc.
- Parameters
- Features & Descriptions
- Related Videos
P16 Outdoor LED Module Specification | |
Pixel Pitch (mm) | 16 |
Pixel Configuration | 1R1G1B |
Encapsulation | DIP346 |
Colors Matches | 6:3:1 |
Module Resolution (WxH) | 20 x 20 |
Module Size (mm) | 320 x 320 |
P16 Outdoor LED Display Specification | |
Pixel Density (pixel/㎡) | 3906 |
Brightness (cd/㎡) | ≥8000 (adjustable) |
Brightness Adjusted | 100 grade by software or by auto-optic induced |
View Angle | Horizontal 110°; Vertical 70° |
Best Viewing Distance (m) | ≥14m |
Communication distance (m) | <100meter by Internet Cable (without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km |
Display Work Method | Static |
LED Driving Method | Constant driving current |
Color Contrast Ratio | 1800:1 |
Gray Grade | 16bit |
Display Color | 439, 804, 651, 110 |
Refresh Frequency (Hz) | ≥1000 |
Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting) |
System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
Control System | |
Front/Rear IP Level | IP65 |
Working Temperature (ºC) | -20~+60 |
Stored Temperature (ºC) | -30~+80 |
Operation Humidity (RH) | 0-95% |
Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
Maintenance | Rear side |
Working Voltage | AC110 / AC220V±10% 47~63HZ |
Power Consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
FEATURES
The P16 Outdoor LED Screen Panel has the following features and functions.
- Best For Advertising

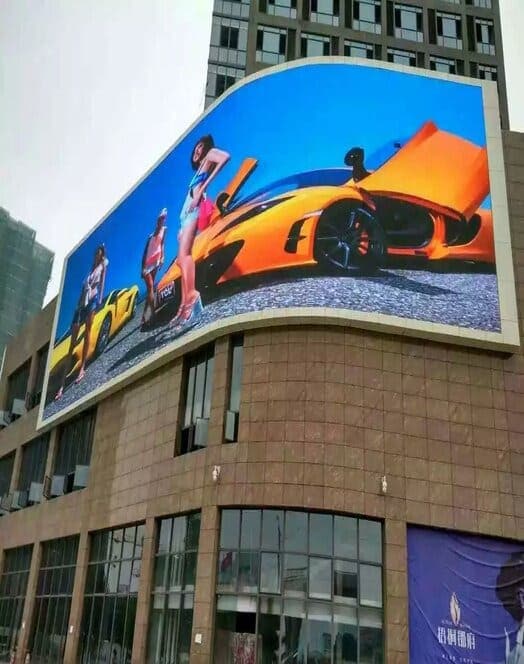

The P16 Outdoor LED Module best suits advertising as its brightness, size, pixel pitch, and other parameters perfectly fit billboard use. If you choose the P16 Outdoor LED Display Panel as your advertising medium in cities, buildings, and urban areas, you’ll surely achieve higher brand sensitivity and ROI.
- Wide Applicability
You may use the P16 Outdoor LED Display Panel for various usages such as a rental screen for actual outdoor events, stadium and sports display, advertising screen on rooftops, mesh screen, or 3D screens. It is adoringly adaptable, has a rich and unique design, and is entirely sturdy.
- IP65 Waterproof
As for the product often come in massive size; dismantling it when it rains is a huge hassle and is troublesome. Instead, you don’t have to dismantle it when uncertain weather conditions occur. It has a waterproof outer cover that prevents leakage of outdoor mist and dust from entering the product’s central system.
- Long Lifespan
Undeniably, LED screens as costly and are expensive investments. However, in YUCHIP, rest assured that the product you avail of with us will serve you fully in the long run. Alongside the warranty and other services we provide for you, maintenance is also a factor you need to consider in keeping the sound performance of the product.
CATEGORY
We always welcome customization of various designs, sizes, and installations. Should you need a P16 Outdoor LED Module, below are the series it belongs to. Don’t hesitate to contact us for more questions or inquiries.
