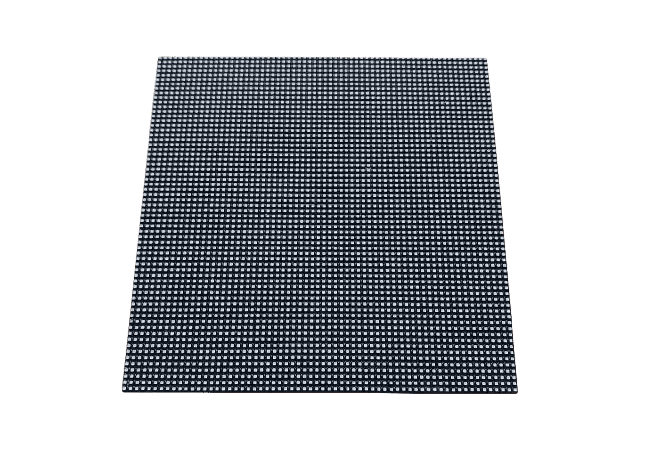

P2.5 Outdoor LED Module
The P2.5 Outdoor LED Screen Panel is designed with dependable quality and superb visual presentations. It is crafted with high-grade materials from its cabinet material, module, diodes, system parts into intangible parts such as software and security system.
It is an LED screen product that you can use for various outdoor needs. You can have it in custom-made designs such as flexible, curved spheres, outdoor balls, etc. We also have it in rental series, which you may use for rental events and extending your profit and business span.
YUCHIP also provides various services which may be vital for your project. We offer installation, operation, warranty services, and more. Contact us now for more information.
Please send us an inquiry by clicking the button below or message us at manager@yuchip.com.
- Parameters
- Features & Descriptions
- Related Videos
P2.5 Outdoor LED Module Specification | ||||||
| Pixel Pitch (mm) | 2.5 | |||||
| Pixel Configuration | SMD1415 | |||||
| Encapsulation | 3 in 1 | |||||
| Colors Matches | 6:3:1 | |||||
| Module Resolution (WxH) | 128 x 64 | |||||
| Module Size (mm) | 320 x 160 | |||||
P2.5 Outdoor LED Screen Specification | ||||||
| Pixel Density（pixel/m²） | 147456 | |||||
| Brightness（cd/m²） | 3500 – 4500 Optional | |||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | |||||
| View Angle | Horizontal 140°; Vertical 140° | |||||
| Best Viewing Distance (m) | ≥ 2.5m | |||||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||
| Display Work Method | 1/32 Scan | |||||
| LED Driving Method | Constant driving current | |||||
| Color Contrast Ratio | 5000:1 | |||||
| Gray Grade | 16bit | |||||
| Display Color | 439, 804, 651, 110 | |||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | |||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | |||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||
| Control System | ||||||
| Front/Rear IP Level | IP65 | |||||
| Working Temperature (ºc) | -20～+40 | |||||
| Stored Temperature (ºc) | -40～+80 | |||||
| Operation Humidity (RH) | 0-95% | |||||
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) | |||||
| Maintenance | Rear / Front Side | |||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | |||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | |||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) | |||||
FEATURES
The P2.5 Outdoor LED Screen Panel has the following features:
- High Quality
The P2.5 Outdoor LED Module makes excellent quality and steady performance as it is designed with comprehensive planning and crafting. It comprises durable and reliable materials from its diodes, cabinet, module material to intangible parts such as software and program.
- Energy-saving
It adopts energy-saving technology, which is very prominent these days. Energy-saving LED screens are of huge environmental advantage compared to conventional LED displays of previous technologies. It helps you save much energy and power, make room for conservation of renewable resources, and keep costs and budget.
- Superb Visual Design
The P2.5 Outdoor LED Display Panel has a highly technical visual presentation as it has a small pixel pitch. It is remarked with a reasonable refresh rate, brightness, contrast ratio, grayscale, outstanding balance, and specifications.
- Long Lifespan
As vast and expensive investments, LED screens ought to last and serve you for a long time. While maintenance may determine the total lifespan, when it has quality performance and continuous variables, an LED screen, such as the P2.5 Outdoor LED Screen Panel, can last ten years or more.
