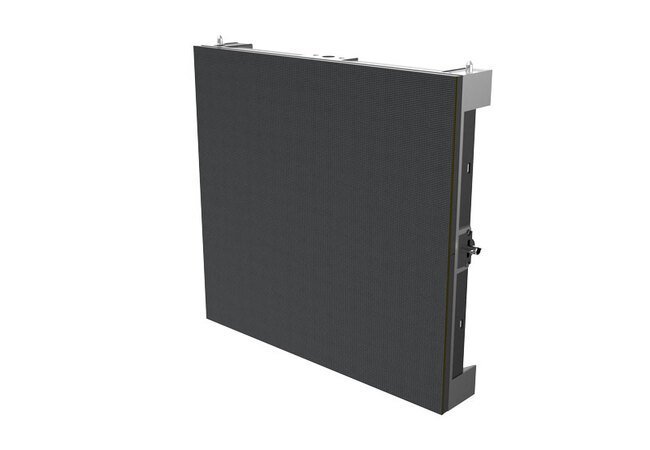

P2.6 LED Wall


The P2.6 LED wall has a die-casting aluminum cabinet material. Die-casting aluminum is standard among indoor fixed and indoor rental LED screens. To be sure of its stable performance, a die-casting aluminum may corrode; however, it does not rust, especially for the semi-outdoor installation.

The P2.6 LED Display also utilizes high-quality components and spare parts and has efficient long-term use. It is best for concerts, museums, flashmobs, product launches, retail stores, and shopping mall events.

Furthermore, the P2.6 LED Screen has a good stand against corrosion and other outside factors that may diminish the quality of the screen.




The indoor rental screen has a wide application. It may function as a video wall in a school program, theater, commercial screen for a product launch, or brand promotion. You can also use them in international affairs like beauty pageants, exhibitions, expos, conferences, summits, indoor concerts, etc.

The indoor rental LED display series includes P2.6 LED Wall, which is great for various occasions and events.

One more thing a P2.6 LED Screen makes prominence nowadays is that it utilizes die-casting aluminum material. Let’s know about it further.

P2.6 LED Display Against Corrosion

Corrosion is one of the factors that deteriorate the LED display’s performance. Most especially with semi-outdoor and rental LEDs; however, indoor LEDs also get affected by this outside variable.

First, what is corrosion?

Corrosion is a natural process that converts refined metals into chemically stable ones such as oxide, hydroxide, or sulfide.

It is the gradual destruction of materials (usually a metal) by chemical and electrochemical reactions with their environment.

Once a display undergoes corrosion, most likely, the performance will degrade because the outside layer is diminishing, resulting in internal problems. The production and modules might not achieve a steady and stable performance even with frequent maintenance.

The LED industry is rapidly expanding, and every product should have exceptional advantages over rivals to stay on top. And typical problems along the way need a concrete and innovative solution.

Die-casting aluminum, on the other hand, is the best solution against corrosion by far. It includes aluminum oxide material undergoing a specific cross-sectional profile to die, resulting in a firmer and corrosion-resistant material. But also note that die-casting aluminum may corrode but not rust, and over time, it can heal itself.

Other industries also utilize die-casting aluminum, including architectural, automotive, electronics, aerospace, energy, advertising, etc.

YUCHIP’s indoor rental LED display products are equipped with high-quality materials, from the inner components to the small spare parts. These great component choices are manifested perhaps in the long run service that a P2.6 LED Screen can benefit you.

P2.6 LED Wall Module Specification

Pixel Pitch (mm)

2.6

Pixel Configuration

SMD1515

Encapsulation

3 in 1

Colors Matches

6:3:1

P2.6 LED Wall Cabinet Specification

Cabinet Size (mm)

500 x 500

Cabinet Resolution (pixels)

192 x 192

Cabinet Pixels (pixels)

36864

Cabinet Material

Die Casting Aluminum

Cabinet Weight (kg)

7.5

P2.6 LED Wall Screen Specification

Pixel density(pixel/m²)

147456

Brightness(cd/m2)

600 – 800 Optional

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥ 2.5m

Communication Distance(m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/32 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

5000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP43

Working Temperature (ºc)

-20~+40

Stored Temperature (ºc)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

10 years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear / Front Side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)
