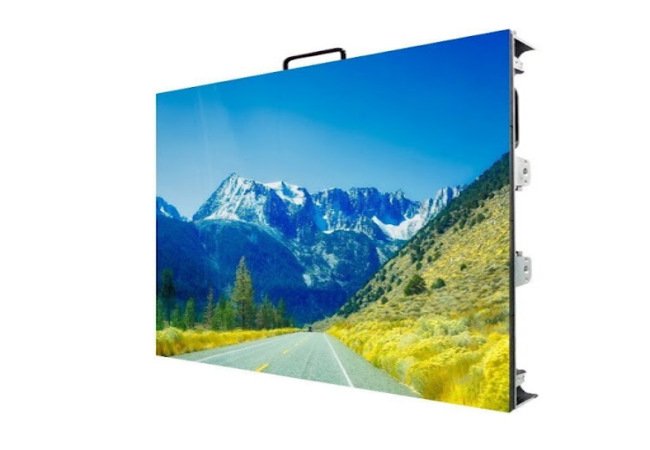

P2.9 LED Screen


The P2.9 LED Screen has dual maintenance features to choose which side care works and is convenient. It has handlers installed on top and sides to ease handling and installation. It is also considerably lightweight, where each cabinet weighs only 7.5 kg.

A P2.9 LED Display has a high refresh rate, and brightness, which are great attributes of the best indoor rental LED display screen. It had no smear, delay, and flickers when content is played, such as videos, images, texts, and animations.

YUCHIP takes pride in providing you quality products partnered with excellent service. Should you have more questions, please get in touch with us.




The P2.9 LED Screen is used for different purposes and locations like malls, theaters, product launches, and government facilities. It has ultra-thin properties, making it lightweight and even more popular around the world.

Features And Benefits

  • The pixel pitch is 2.9, low or negligible; thus, the LED display lamps are more intact, resulting in a high-resolution display.
  • It uses SMD (Surface Mounted Device), specifically SMD1515.

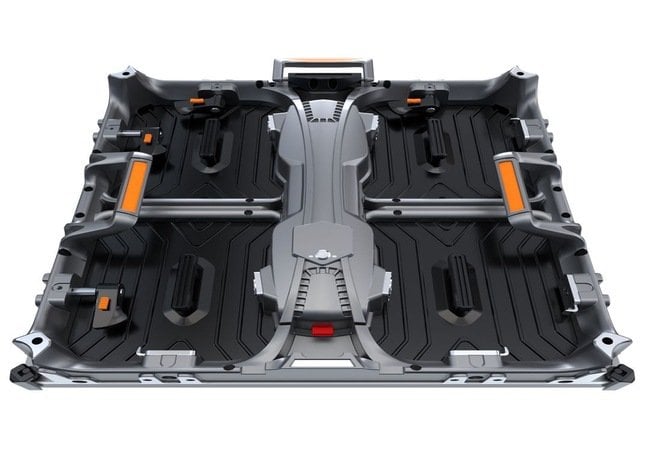

  • The raw material is die-casting aluminum of excellent quality, reliable, moisture-resistant, dustproof, and waterproof.
  • The cabinet weighs around 7.5kg, so the installation and maintenance wouldn’t require much workforce.
  • It has a high pixel density of up to 112896 pixels per inch and a brightness of up to 800 cd/m².
  • The vertical and horizontal viewing angle is 140/140, respectively.
  • The best viewing distance is around 3 meters; thus, it perfectly fits an indoor application or for indoor rental events.
  • A high refresh rate means smooth images and vivid pixels. The P2.9 LED Display can have up to 1920 to 3840 Hz refresh rate.
  • It has multiple input signal methods; DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc., through a video processor converting). YUCHIP products and solutions utilize video processors from RGBlink, VDWall, and Magnanimage with high-quality and excellent performance.
  • It has a long life span of up to 11 years in an ideal environment. The life span and term of use may still expand or be prolonged if proper maintenance, handling, and management are applied. Also, it may affect whether the product is used ultimately, such as in a 24/7 format.
  • The P2.9 LED Wall maintenance can be from both sides; dual care includes magnets or screwdrivers to check the inner parts of the cabinet. Either way, both come in an easy and convenient process. YUCHIP will also provide you manuals, guides, and technical support regarding installation as well as maintenance.

P2.9 LED Screen Module Specification

Pixel Pitch (mm)

2.9

Pixel Configuration

SMD1515

Encapsulation

3 in 1

Colors Matches

6:3:1

P2.9 LED Screen Cabinet Specification

Cabinet Size (mm)

500 x 500

Cabinet Resolution (pixels)

168 x 168

Cabinet Pixels (pixels)

28224

Cabinet Material

Die Casting Aluminum

Cabinet Weight (kg)

7.5

P2.9 LED Screen Specification

Pixel Density(pixel/m²)

112896

Brightness(cd/m²)

600 – 800 Optional

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥ 3m

Communication Distance(m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/28 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

5000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP43

Working Temperature (ºc)

-20~+40

Stored Temperature (ºc)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

10 years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear / Front Side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)



(YUCHIP P3 Indoor Electronic Advertising LED Display)
