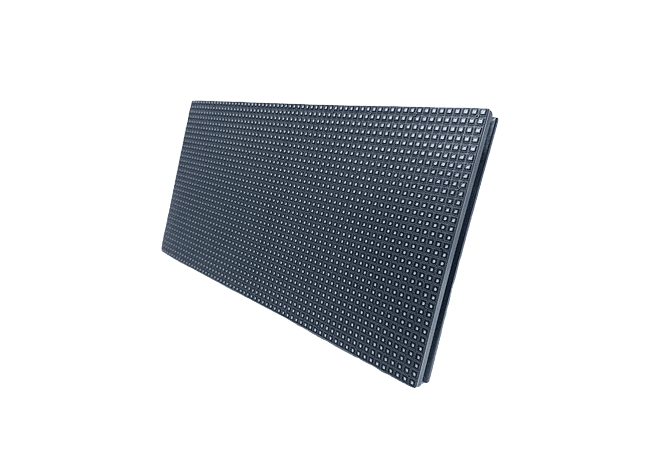

P2.976 LED Module

The P2.976 LED Screen Panel has significant advantages and features. It comes with a module size of 250 x 250 and an 84 x 84. Also, it utilizes SMD technology, using SMD1515, and has a 3 in 1 encapsulation. It reaches up to 800 cd/m² brightness and has a maximum refresh rate of 3840 Hz.

The P2.976 LED Module has a viewing angle of 140 vertically and horizontally. It supports various control systems and software, including Novastar, Linsn, LEDvision, LEDset, etc. Also, it comes with easy operation processes, steps, and guides that you can easily follow.

The P2.976 LED Display Panel’s service is up to ten years, but some factors may shorten or extend its lifespan. The factors include maintenance, usage status, mobility, and more. Should you have questions, please send us a message by clicking the button below.


P2.976 LED Module Specification

Pixel Pitch (mm)


Pixel Configuration



3 in 1

Colors Matches


Module Resolution (WxH)

84 x 84

Module Size (mm)

250 x 250

P2.976 LED Display Specification

Pixel Density(pixel/m²)



600 – 800 Optional

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥ 3m

Communication Distance(m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/28 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio


Gray Grade


Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating


Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level


Working Temperature (ºc)


Stored Temperature (ºc)


Operation Humidity (RH)


Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)


Rear / Front Side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



The P2.976 LED Module has the following features:

  • High-definition

The P2.976 LED Module is equipped with high-definition visuals, making great visuals and content display. It shows nothing but an unprecedented view from all sides and angles. Also, it produces a lower eye fatigue rate as it may come in a curved design, making distance the same on all sides.


  • High Refresh Rate

It has a refresh rate of up to 3840 Hz—a higher refresh rate results in a more precise image, good color presentation, and flicker-free effects.

  • Front Maintenance

Usually, it comes with a full front maintenance feature. As you may know, front care is easier and more convenient.

Full Front Maintenance

  • Rental Design

The P2.976 LED Screen Panel has a handle design, crashproof edges, and cabinets have wheels to ease mobility, installation, and dismantling.


You may find the P2.976 LED Display Panel in the following product series and solutions. Also, if you opt for the same pixel pitch but a different usage or application, YUCHIP provides customization. We have a professional R&D team who are skilled and equipped with the knowledge to guide you.

Outdoor Rental LED Display
Outdoor Rental LED Display

Please message us if you have further questions.
