LED P20


LED P20 has a high-quality image and video presentation for large-sized LED billboard advertising use and has enough brightness to deliver a clear vision and video even under direct sunshine.

P20 LED Display also utilizes a quality cabinet perfect for outdoor fixed installation. And with its better heat dissipation features, P20 Outdoor Full Color LED Display ensures high reliability and low maintenance.

With customization options, we’ll help you realize the best fit for your outdoor LED project.




LED P20 is one of the most common LED modules for outdoor fixed installation. Because it has the balance of high brightness while its size may vary, the specifications are precisely measured.

YUCHIP, with 17 years of experience in the LED industry, has provided hundreds of P20 Outdoor Full Color LED Displays to many countries around the world. Some of its features are the following:

  • Cost-effective.

The LED P20 module is a perfect choice for outdoor billboards. Because it has high brightness and a long life span, it can bring you so many advertising benefits in the long run, such as hitting your advertising goals, higher profits, sales, products, and brand awareness.

Also, you may have the chance to get your product or services into international recognition. All you have to do is to spend on wise equipment.

  • Clear Visuals

LED P20 has a high-quality image and video presentation for large-sized LED billboard advertising use and enough brightness to deliver a clear vision and video even under direct sunshine. It also has automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;

  • Remote Control

Uploading, customizing, and choosing content can be done through computers, tablets, or remote control. It means showing advertisements is way easier and can be done in ab blink of an eye. The guides and steps in customizing are also included upon the delivery of the product.

  • More Attractive Advertising

An eye-catching active advertising effect excites your audience and gains more revenues in a broad sense. Because the P20 LED Display clear visuals, right gamma, brightness, rich color, it creates a more comfortable and entertaining resolution that can easily attract passers-by to watch your content.

  • Multifunctional

A P20 LED Display is not for advertising alone; it can also be for decorative purposes such as giving enough lighting in an area, especially crowded events. It can cater to a large audience because of its wide viewing angle.

  • 3-5 Year Warranty

YUCHIP provides a 3-5 year warranty on all its indoor and outdoor products, LED display solutions, etc. Together with security, we also give you outstanding technical, online, and phone support. We make sure to respond to your inquiries, questions and promptly address any issues (if any).

LED P20 Module Specification

Pixel Pitch (mm)

20

Pixel Configuration

1R1G1B

Encapsulation

DIP346

Colors Matches

6:3:1

Module Resolution

16 x 16

Module Pixel

256

Module Size (mm)

320 x 320

LED P20 Cabinet Specification

Cabinet Size (mm)

960 x 960 x 150 and customized

Cabinet Resolution

48 x 48

Cabinet Pixels

2304

Cabinet Material

Steel/ Aluminum/ Die-casting Aluminum

Cabinet Weight (kg)

50

LED P20 Display Specification

Pixel Density (pixel/㎡)

2500

Brightness (cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 110°; Vertical 70°

Best Viewing Distance

≥18m

Communication Distance

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/4 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1000

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Front/Rear IP Level

IP65

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature(ºC)

-20~+60

Stored Temperature (ºC)

-30~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

10 years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear side

Working Voltage

AC110 / AC220V±10% 47~63 Hz

Power Consumption

Max: 850W/㎡ ; Ave:350W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)

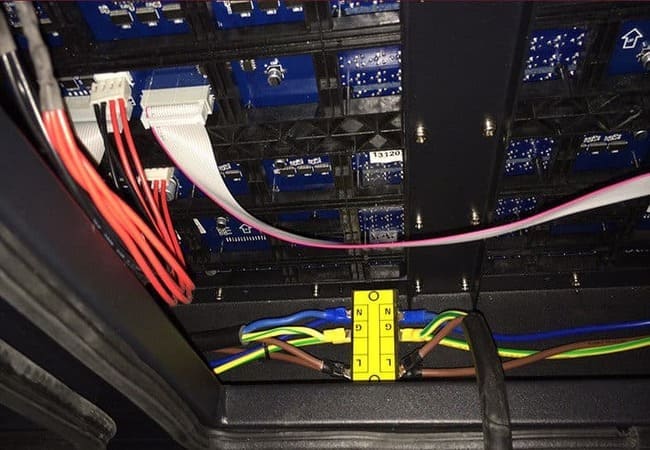

(P20 Outdoor Advertising LED Display)
