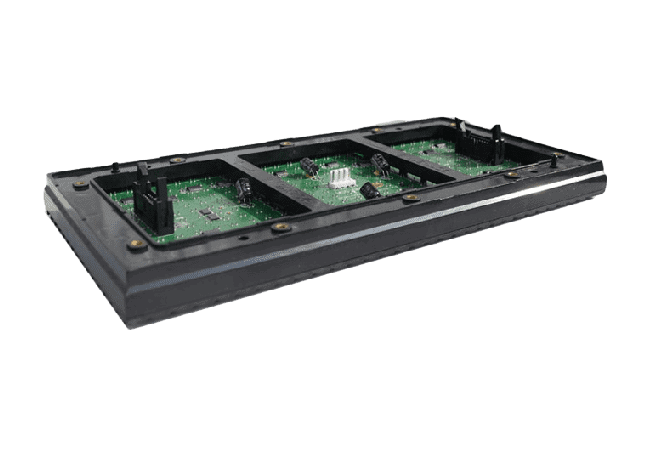

P20 Outdoor LED Module
The P20 Outdoor LED Screen Panel is undeniably one of the best choices you have for billboard advertising. It is prevalent in many areas where people gather and has been featured in many of our projects in various countries globally.
Some of the projects are in Peru, Hongkong, Germany, Brazil, Turkey, and a lot more. Alongside advertising, you may also use it for stadiums and massive sports venues, rooftop design, building or window decoration, and a lot more.
Since it often comes in huge sizes, we advise you to consult us regarding the installation method you’ll utilize. Also, its design may vary in size and cabinet material.
In addition, we offer customization of various specifications and promise to give you a clear insight into the LED product.
If you have more questions, don’t hesitate to contact us at manager@yuchip.com.
- Parameters
- Features & Descriptions
- Related Videos
P20 Outdoor LED Module Specification | |
| Pixel Pitch (mm) | 20 |
| Pixel Configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors Matches | 6:3:1 |
| Module Resolution (WxH) | 16 x 16 |
| Module Size (mm) | 320 x 320 |
P20 Outdoor LED Display Specification | |
| Pixel Density (pixel/㎡) | 2500 |
| Brightness (cd/㎡) | ≥8000 (adjustable) |
| Brightness Adjusted | 100 grade by software or by Auto-optic induced |
| View Angle | Horizontal 110°; Vertical 70° |
| Best Viewing Distance | ≥18m |
| Communication Distance | <100meter by Internet Cable(without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display Work Method | 1/4 Scan |
| LED Driving Method | Constant driving current |
| Color Contrast Ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting) |
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Control System | |
| Working Temperature(ºC) | -20～+60 |
| Stored Temperature (ºC) | -30～+80 |
| Operation Humidity (RH) | 0-95% |
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63 Hz |
| Power Consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) |
FEATURES
The P20 Outdoor LED Screen Panel has the following features and functions.
- More Installation Methods
The P20 Outdoor LED Module is available in various installation methods such as hanging, billboard, wall-mounted, rooftop, and more. Also, these installation methods shall consider the overall weight of the Display. We’ll advise you on the best option you can use for your project for safety purposes and measures.
- Colossal And Huge
The P20 Outdoor LED Display Panel is often used for billboard advertising, and that means it is composed of numerous LED cabinets and modules connected to form a massive screen. Because of its size may also require a workforce during installation, dismantling, maintenance, and other operations.
- Weatherproof
The P20 Outdoor LED Screen Panel is designed to stand rain or shine weather and other extreme conditions outdoors. Its cover, cabinet, and modules are equipped with IP65 protection that helps the whole system retain its sound performance despite its outside factors.
- Sturdy And Reliable
We ensure you that the product we provide you re authentic and reliable. Our skilled team carefully prepares and formulate its design and components to serve you fully and give you higher possibilities for your business.
- Energy-saving Components
As we may know, giant screens also eat up a lot of power; however, with the energy-saving technology that we apply to our products, including the P20 Outdoor LED Display Panel, your electricity bill will not be significantly affected.
