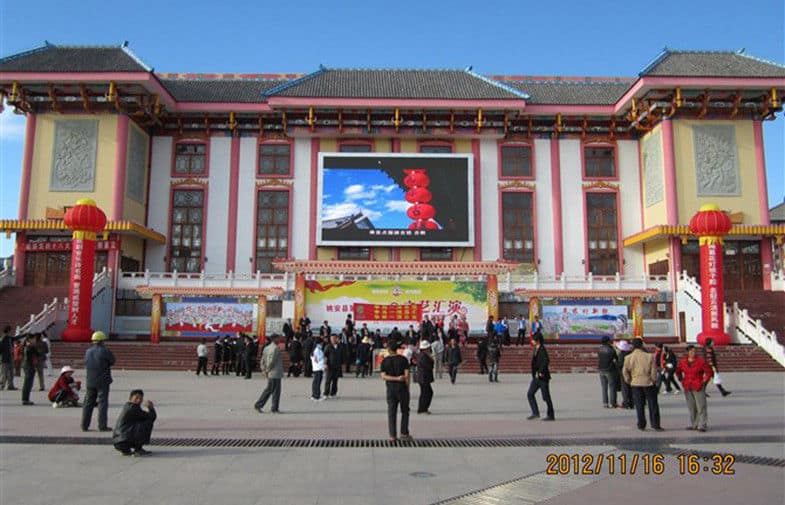

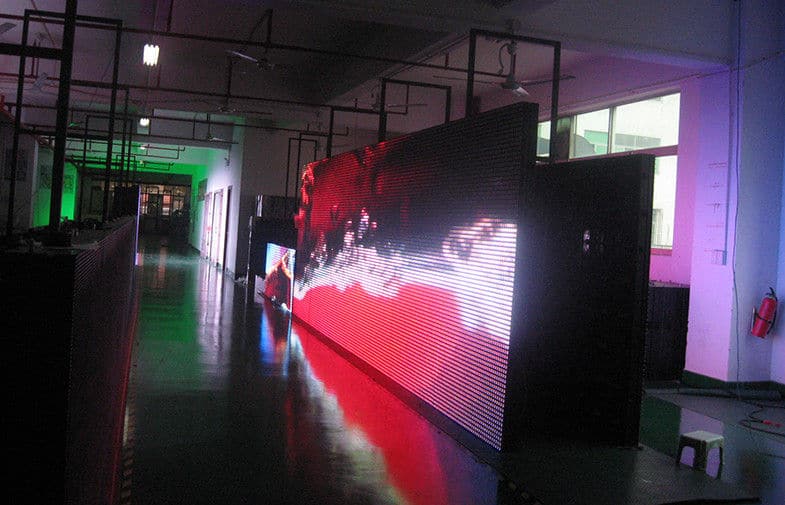

P25 LED Billboard
P25 LED Billboard automatic brightness adjustment presents a comfortable display effect day and night and saves energy, good heat dissipation for a long stable lifetime.
- Product Features
- Parameters
- Related Videos
1. P25 LED Billboard is cost-effective and suitable for large size outdoor LED screens & LED displays;
2. P25 LED Billboard IP65 waterproof and dustproof for outdoor electronic billboards use;
3. High-quality image and video presentation for large size LED billboards advertising use;
4. Enough brightness to deliver a clear image and video even under direct sunshine;
5. P25 LED Billboard Automatic brightness adjustment to present a comfortable display effect in day and night and also save energy;
6. Good heat dissipation for a long stable lifetime;
LED MODULE PARAMETER | |
| Pixel pitch (mm) | 25 |
| Pixel configuration | 2R1G1B |
| Encapsulation | DIP346 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 8 x 8 |
| Module pixel | 64 |
| Module size (mm) | 200 x 200 |
LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 1000 x 1000 x 150 |
| Cabinet resolution (pixels) | 40 x 40 |
| Cabinet pixels (pixels) | 1600 |
| Cabinet material | Steel |
| Cabinet weight (kg) | 50 |
LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/㎡) | 1600 |
| Brightness(cd/㎡) | ≥6500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 110°; Vertical 70° |
| Best viewing distance (m) | ≥22m |
| Communication distance(m) | <100meter by Internet Cable(without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display work method | Static |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | 10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Power consumption | Max: 850W/㎡ ; Ave:350W/㎡ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
