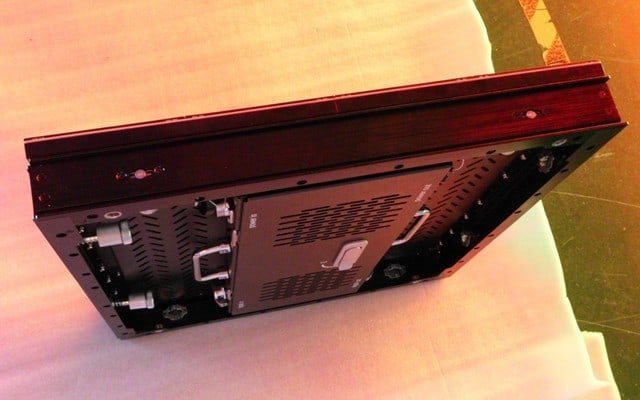

P3.75 Rental LED Display
Rental LED Display Screen has also been named a rental LED wall, LED video wall rental designed for events and advertising campaigns.
YUCHIP rental LED wall’s unique design makes it ideal for both outdoor and indoor venues application.
The rental LED screen is installed in two ways: with the hanging structure or with a stand.
- Product Features
- Parameters
- Related Videos
- Cabinet Weight: 6.5kg/cabinet
- True color reproduction & authentic video quality
- Full black LED Chips;
- Rental LED Display Source: SMD2121
LED Module Parameter | |
| Pixel pitch (mm) | 3.75 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD2121 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 64 x 64 |
| Module pixel | 4096 |
| Module size (mm) | 240 x 240 |
LED Cabinet Specification | |
| Cabinet size (mm) | 480 x 480 x 65 |
| Cabinet resolution (pixels) | 128 x 128 |
| Cabinet pixels (pixels) | 16384 |
| Cabinet material | Extrusion Aluminum |
| Cabinet weight (kg) | 6.5kg |
LED Display Specification | |
| Pixel density(pixel/m2) | 71111 |
| Brightness(cd/m2) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥3m |
| Communication distance(m) | <100meter by Internet Cable (without relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display work method | 1/16 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 4000:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
