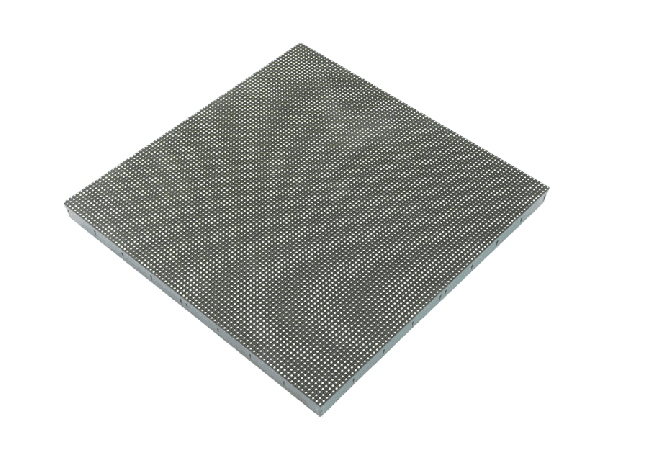

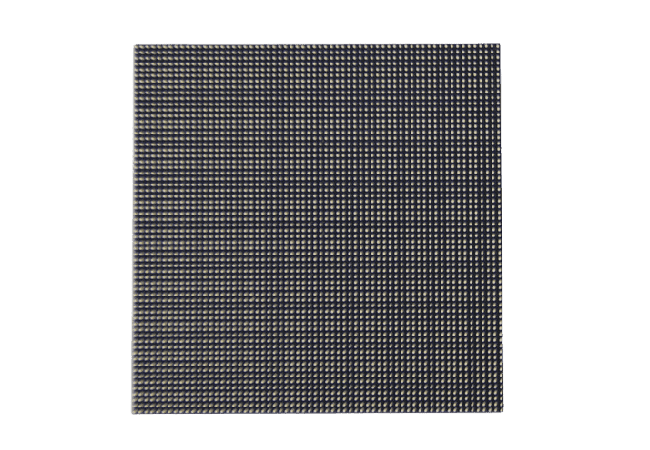

P3.91 Outdoor LED Module

The P3.91 Outdoor LED Screen Panel has been utilized in many of our projects, including the P3.91 Outdoor Pantallas LED In Chile. The P3.91 Outdoor LED Module is equipped with rental features which make convenient and easy access for various operations. It also makes installation and dismantling quicker.

It has a low pixel pitch; it provides a perfect balance of color, grayscale, brightness, contrast ratio, refresh rate, etc. These factors make perfect image and content presentations and will surely satisfy your eyes regarding its clarity, vividness, sharpness of the image, and more.

Apart from the quality products, we are also known for having excellent global services. We can be your companion in accomplishing various advertising and business endeavors you’ll meet in the market and industry.

Should you have further questions, please get in touch with us today!


P3.91 Outdoor LED Module Specification

Pixel Pitch (mm)


Pixel Configuration



3 in 1

Colors Matches


Module Resolution (WxH)

64 x 64

Module Size (mm)

250 x 250

P3.91 Outdoor LED Screen Specification

Pixel Density (pixel/m²)


Brightness (cd/m²)

≥1000 (adjustable)

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)


Communication Distance (m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/16 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio


Gray Grade


Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating


Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level


Working Temperature (ºc)


Stored Temperature (ºc)


Operation Humidity (RH)


Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)


Rear / Front side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



The P3.91 Outdoor LED Screen Panel has the following features:

  • Rental Ideal

Rental Features

Ideally, the P3.91 Outdoor LED Screen Panel is the most recommended LED product for rental events. Aside from its easy operation, its design is equipped with quick access for mobility and other functions.

  • Easy Installation

Equipped with an anti-skid handle, the P3.91 Outdoor LED Module makes way for easy installation. With less workforce, you will be able to complete a massive LED video wall in a short period.

  • Front Maintenance

Maintenance is one factor that purely affects the performance of a product. When performed efficiently, it helps the product sustain its steady performance. Meanwhile, the P3.91 Outdoor LED Display Panel has complete front maintenance; convenient and labor-saving features.

Full Front Maintenance

  • Adjustable Brightness

Brightness makes way for image visibility, and with an adjustable feature, you may quickly turn up or down the brightness to match the light requirement of an environment.

  • High Refresh Rate

The P3.91 Outdoor LED Screen Panel has a high refresh rate, resulting in more sheer image quality, flicker-free videos, and highly presentable ads and campaigns.

High Refresh Rate


You’ll see the P3.91 Outdoor LED Module among the following series of LED products and solutions. You may also ask us to customize its size, materials, come components, and parameters for you.


You can read and learn more about the P3.91 Outdoor LED Screen Panel by visiting the following pages/posts below.

Buy 3D LED Screen
3D LED Floor Screen


YUCHIP is always ready to serve you. You may ask us to custom-made an LED screen panel for you. It is of affordable price, excellent quality, has high-grade materials, and more.

Please reach us through the following links to know more.
