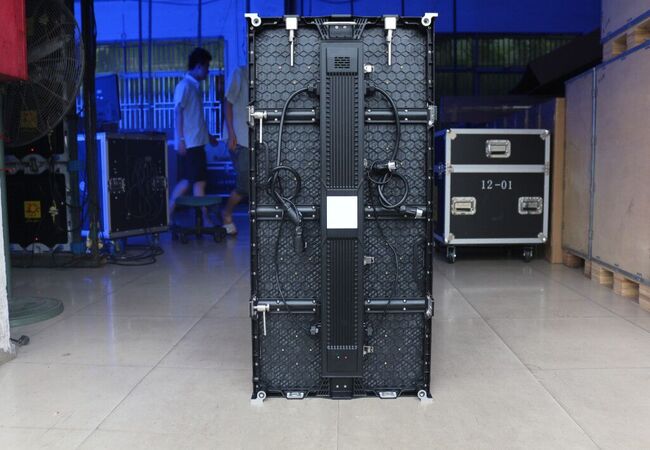

LED Screen P3


YUCHIP LED screen P3 has adopted the latest and most advanced anti-collision technology that makes the LED screen more stable and durable during installations in rental events.

P3.91 is popular for outdoor and indoor events stage background use. P3.91 uses widespread as an indoor fixed LED display because of its high resolution and cost-effective advantages.

P3 Indoor LED Display utilizes quality materials from the outer to the core materials. Should you have questions, please send us an inquiry.




LED Screen P3 is a perfect choice for indoor usage. It has the ideal view, materials, specifications that can catch your audience’s attention. LED Screen P3 has a broad applicability scope, such as shopping malls, schools, museums, retail stores, indoor events, and a lot more.

Below are its features and advantages.

  • Super Light Technical

P3.91 adopts a narrow frame design, the cabinet thickness is only 80mm, easier to carry, and the light cabinet only weighs 13kg, thus, easy to install and saves transportation costs.

  • Extreme Precision

P3.91 utilizes a die-casting aluminum cabinet, each cabinet tolerance only 0.01mm.

The cabinet splicing structure comes with a positioning function. It uses an alignment pin and alignment hole design that is very easy to connect and install. The complete screen flatness and the seam are less than 0.05mm. Also, it has a humanization handlebar design making it easier to move the cabinet.

  • World Vision

P3 Indoor LED Display makes a larger viewing area with vertical 150, horizontal 120 viewing visuals. It can get high-quality viewing information in whatever direction you are viewing. Thus, people viewing both sides will not suffer in getting a clear presentation of the content.

  • High-definition Picture

P3 Indoor LED Display has high refresh/high contrast can reach 16 bit, giving you colorful viewing sensory. The brightness might also reach up to 3500 cd/m², which makes the content look brighter, attractive, catchy, and more presentable.

  • Easy Installation

The LED Screen P3 has a more accessible and more convenient installation process for fixed or rental usage. Using the handlebar, you can easily carry it, plus it’s lightweight. In installing, you have to connect each cabinet, and with the fast assembly options, bonding and installing an enormous LED wall becomes way more manageable.

P3.91 LED Module Specification

Pixel Pitch (mm)

3.91

Pixel Configuration

SMD2121

Encapsulation

3 in 1

Colors Matches

6:3:1

Module Resolution (pixels)

64 x 64

Module Pixel (pixels)

4096

Module Size (mm)

250 x 250

P3.91 LED Cabinet Specification

Cabinet Size (mm)

500 x 500

500 x 1000

Cabinet Resolution (pixels)

128 x 128

128 x 256

Cabinet Pixels (pixels)

16384

32768

Cabinet Material

Die casting aluminum

Cabinet Weight (kg)

15

7.5

P3.91 LED Screen Specification

Pixel Density (pixel/m²)

65536

Brightness (cd/m²)

≥1000 (adjustable)

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥3m

Communication Distance (m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/16 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

5000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting )

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP43

Working Temperature (ºc)

-20~+40

Stored Temperature (ºc)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear / Front side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)



(P3.91 Indoor Rental LED Display Aging Test)

P3.91 LED and LED Screen P3: Ultimate FAQ Guide



1. What Is P3.91 LED?



P3.91 Outdoor Rental LED Display

(P3.91 LED Module)

P3.91 LED is a full-color LED display panel with a fine pixel pitch of around 4mm and a direct view display that delivers an impressive viewing experience, small and large-scale.

The value of screen pixels is an essential aspect of LED display because it determines your screen’s pixel resolution and optimal viewing distance.

This LED panel has a 4 meters optimal viewing distance. That means that if you’re installing a P3.91 LED screen, you must put it somewhere the audience can see it at a distance of 3.91 or 4 meters.

The P3.91 LED has high reliability, consistency, and high-quality LEDs that keep the natural color of pictures with the best color uniformity.

There are two standard sizes of the cabinet for P3.91 LED: 500 mm x 1000mm, and the other is 500 mm x 500 mm.

The P3.91 LED screen panels are commonly used for stage background, exhibition halls, trade shows, performances, and other activities.  It is used and lighting and sound equipment and other special effects to achieve a new high viewing experience in various events.



2. What Are The Critical Features Of The P3.91 LED?





The key features of LED screen P3.91 are:

Die-cast Aluminum Cabinet. The P3.91 LED screen panels have adopted the latest and most advanced anti-collision technology that makes the LED screen more stable and durable during installations in rental events. It also makes the lifespan of your LED screen longer. The aluminum alloy used in the control box coverings can adapt to all kinds of weather conditions.

High-Definition Screen Display. It delivers superior and excellent performance by producing vivid and vibrant color images and video displays.

Ultra-thin and Ultra-lightweight. It is portable and easy to install anywhere. It makes the transportation of LED screens more effortless and more cost-efficient.  Its design offers good flatness and a big seamless screen, and the P3.91 LED screen has extreme precision for easy connection, installation, and dismantling. It has handlebars that are designed for easy moving.

High Refresh Rate and High contrast. With P3.91 LED screen, you can be sure that you will deliver a gorgeous picture display for your audience.

Wide Viewing Angle. The slim screen has a broad viewing reach of up to 160 degrees (horizontal).



3. What Is The P3.91 LED Screen Specification?



Here’s a detailed description of the P3.91 LED screen panel. Use this as your guide to help you decide if it is the right LED screen for you.

Product Specifications
Parameters Unit
Pixel Pitch mm 3.91
Pixel Density dots. 65749
Module Resolution W x H 64 x 64
Module Size mm 250 x 250 (W x H)
Module Weight kg 0.72
Max. Power Consumption (Module) W 45
Cabinet Module W x H 2 x 2 / 2 x 4
Cabinet Resolution W x H 128 x 128 / 128 x 256
Cabinet Size mm 500 (W) x 500 (H) x 75(D) /

500 (2) x 1000 (H) x 75 (D)

Weight kg 8.2 / 14.9
Level up degree of cabinet mm ≤ 0.2
Maintenance Method Rear
Raw Material (Cabinet) Die-cast aluminum
White Balance nits ≥3500
Viewing Angle degrees 160 (H) 120 (V)
Contrast 4000: 1
Power Consumption W / m2 250 (average) – 800 (peak)
Power Supply AC90~264V
Frame Rate Hz 50 and 60
Refresh Rate Hz ≥1920
Operating Temperature -20 – 60

If you want to learn more about the P3 LED screen specification, you may visit our product page.

For further inquiries, please message us through our website or email.



4. Is P3.91 LED Screen Suitable For Outdoor And Indoor Use?



P3.91

(P3.91 LED Screen for Both Outdoor and Indoor Events)

Yes, we have P3.91 outdoor and indoor HD LED screens for your event’s needs.

With the latest SMD technology applied to LED screen panels, the P3.91 is applicable for indoor and outdoor use. The SMD technology offers three (3) colors RGB LED lights in a single chip to deliver a full-color and bright visual display.

One of the significant differences between indoor P3 LED screens and outdoor P3 LED screens is the IP grade required for each screen.

The standard Ingress Protection grade for the outdoor LED screen is IP65. It is an internationally followed IP rating requirement to ensure that your LED screen display will be able to withstand bad weather conditions.

The IP65 grade means that your outdoor LED screen has enough protection against solid and moist intrusions that may damage the inside and outside components of your digital displays.

On the other hand, an indoor LED screen does not require such requirements since it will be placed in a much protected, sheltered, and safer place.

For more information about what screens are best for your indoor and outdoor display needs, you may contact us today, and we will assist you.



5. Is P3.91 LED Screen A Good Pixel Pitch Value?



(P3.91 LED Screen for Clubs)

The answer to this question depends on your display needs and requirements.

The P3.91 is commonly installed indoors and for a short viewing distance outdoors. The optimal viewing distance for this LED screen is around 4 meters.

If you install it within the optimal viewing distance, you can ensure that your screen will deliver a viewing quality appropriate and fitting for your audience.

Hence, your question’s answer is ‘yes,’ it is a good pixel pitch for your digital screens.

However, you will need an LED display with a higher pixel pitch for a lot farther viewing distance.

If you are planning to place it in a location that is 20 meters away from your audience, then the answer to your question would be no. It is not a good pixel pitch for that viewing distance.

The pixel pitch plays a vital role in ensuring that your audience will have a good experience viewing your LED display. The numeral value dictates the appropriate viewing distance for each LED panel.

If you need further assistance in selecting a good pixel pitch value for your screen, don’t hesitate to get in touch with us today.



6. What Is The Difference Between P3 And P4 LED Screens?



LED Screen P3

(P3 Indoor LED Display in Airport)

The main difference between P3 and P4 LED screens is the screen resolution. If you’re asking which LED wall is better, P3 or P4? The answer is both. As long as you view your LED screen display within a suitable distance for the pixel pitch, both of them will deliver equally high display resolution.

Therefore, it is vital to determine your viewers’ distance from the LED screens to know which pixel value is more suitable for you.

For P3 LED resolution, the suitable acuity distance is 10.31 meters, and the average comfortable viewing distance is up to 5.16 meters.

For P4 LED screen resolution, 6.88 meters is a comfortable viewing distance, while the visual acuity distance is up to 13.75 meters.

Remember that the viewing distance measurements above are based on one piece of literature only. You may find similar or different numbers in various sources. Nonetheless, you can expect that their differences are just by a slight margin.



7. Is P3 LED Screen Easy to Install?



P3 Indoor LED Display

(P3.91 LED Display Screen for TV Studio)

Yes, the P3.91 LED screen panels have features that allow easy installation.

It is equipped with a quick-lock mechanism for a faster and seamless connection of multiple LED screen panels.

The design of the die-cast aluminum cabinet has a high precision for a more secure fastening. It has a perfect measurement for mechanical and electrical processes of only 0.1mm.

The structural design of P3.91 LED screen panels is manufactured to meet lifting, transporting, and stacking requirements for both indoor and outdoor use.

The lightbox that gives your screen a stylish look has high strength and high toughness that is not easily deformed.

And since it is lightweight, it can be carried around by a single person. It is very portable and easy to lift. It requires fewer people to install. Installing a P3.91 LED screen panel can be a one-person job.

When you choose to avail of our LED products, you do not have to worry about installing your LED screens. Our well-trained staff can help you with installing your LED screens, either indoor or outdoor.



8. Is P3 LED Screen Multifunctional?



P3 LED Panel Price
P3 LED Panel

Yes, the P3 LED screen is multifunctional. You can use it in many different ways, and it will deliver an excellent performance every time. Digital LED display serves its users for multiple purposes.

Advertising Screen Display. P3 LED screen displays are widely used for advertising purposes. Because of its ability to deliver bright, eye-catching digital displays, advertisers now prefer using LED screens for their campaigns instead of posters and other traditional media. P3 Advertising LED screens are commonly found in shopping malls, hotels, restaurants, casinos, convenience stores, airports, transport stations, bars, clubs, exhibition halls, and many others.

Public Service Announcement. Some establishments are utilizing P3.91 LED screens to communicate with your clients, customers, and visitors. Because it can be managed in real-time, it makes it a perfect digital display screen for banks, airports, private and government offices, hospitals, etc. It makes delivering a message more accessible. Plus, the LED screens are beautiful to look at.

Decorative Screens. The P3.91 LED screens are also helpful to make your event extra colorful and exciting. It is perfect if you want to impress your audience and attendees by giving them a better experience which they will ultimately remember. P3.91 LED screens are ideal as stage background screens. It is used in churches, trade shows, theaters, halls, etc.

HD Monitoring Screen Displays. Some industries use the P3.91 video walls to carry out their duties and tasks well. TV networks, surveillance and security control rooms, and office rooms are examples of the 3.91 indoor led displays used as monitoring screens.



9. Does P3 LED Screen Utilize Smart Technology?





P3 indoor and outdoor LED display utilizes advanced technology that allows you to have intelligent LED digital screens that are easy to manage and maintain.

Interactive Display. P3 LED display screen supports dynamic and interactive multimedia content. You can have a colorful and engaging visual presentation with touchscreen interactions that lets the end-users control the on-screen data and display. It is an effective way to gain audience attention and participation.

Interactive digital displays ensure that your brand and business will be competitive amidst the noise of numerous advertising screens. It is one way to ensure that your digital display will stand out.

Remote Management. You can manage your P3 LED display screen on-site or remotely. It supports various control methods that make maintaining your LED screen displays easier. It has a ‘plug and plays’ feature for quick displaying of content. You can also control your on-screen data using a computer, laptop, and other electronic devices.

Automatic Light Sensor. Most LED screen panels have a built-in light sensor that automatically adjusts the brightness of your screen display. It gives your screen the appropriate amount of brightness depending on the light condition of the environment.

Multiple Connection Input. P3 panel video processors can receive signals from different sources such as HDMI, VGA, DVD, and other video players. It also offers wireless connection through Hotspots and Wi-fi.



10. Is P3.91 LED Screen Effective As An Advertising Media Channel?



The LED screens are becoming the number choice for indoor and outdoor advertising. The P3.91 LED screen displays allow you to deliver your content more effectively.

Here are the reasons why:

Lively and Animated. The LED technology lets you deliver your advertising content in a positive and graphically pleasing way. It can provide a bright-colored and exciting visual display that will surely catch your audience’s attention and potential customers.

Trendy Look. The thin and flawless look of LED screen cabinets and casing gives your advertising digital screen a chic and modern look. The quality of the display does not deteriorate over time, unlike posters and printed banners.

Effortless. It allows you to change content effortlessly. You do not have to take down the displays to change their content. You can easily display different advertising contents within seconds via your device. You can also have multiple media files playing consecutively with just one screen.

Cost-efficient. Investing in a LED screen for advertising purposes is more cost-efficient in the long run. It will make putting up ads way more convenient. A single person can manage no need to print giant posters regularly. P3.91 LED screen, for example, is long-lasting and can stand the test of time.



11. Is P3.91 LED Screen a Worthwhile Investment?



3.9mm Pixel Pitch

(3.9mm Pixel Pitch Rental LED Display for Summit)

Many users of P3.91 LED screen displays will tell you that purchasing LED screens is a worthwhile investment.

First, 3.91 LED screens are helpful in several ways. You can install it both indoors and outdoors. You can use it to creatively and exquisitely deliver your message and raise brand awareness among your audience, passersby, and target market. Its versatility as a screen gives you unique opportunities to showcase your content.

Second, The LED screens have a longer lifespan than regular projectors. It is more durable and is resistant to any weather conditions.

Third, you have complete control of your content. You can change it anytime you want. It allows you to schedule your content and have multiple ranges for the next playing.

Fourth, The P3 LED screen display is low maintenance. Once installed, all you have to worry about is your content. It does not require constant dismantling to maintain or do minor troubleshooting.

And lastly, there is essentially minimal to zero production cost since all contents can be created on laptops or computers. All you have to do is to upload it to the LED software to have your content displayed.



12. How Can I Make My P3.91 LED Screen Last Longer?



P3.91 Indoor LED Display

(P3 Indoor LED Screen in Malaysia, Installed in 2010)

To ensure that that your P3.91 LED screen and other LED display screens will last longer, make sure to take care of them by following these tips:

  1. Make sure to unplug the screen first before you clean it. Allow the screen to cool down first, especially if it is hot before you begin cleaning.
  2. Make sure to use a soft cloth when wiping your screen. If you use a spray cleaner, avoid spraying it directly to the screen; instead, spray it on the rug cloth and then tap it on your screen.
  3. Avoid spray cleaners that contain solvents such as alcohol, paint thinner, ammonia, and others.
  4. Be gentle with your LED screen. Avoid hard and solid objects hitting your screen to avoid breakage, cracks, and other permanent damages on your screens.
  5. Make sure that your LED screen is completely dry before you start using it again.



13. Why Should I Purchase A P3.91 LED Screen Now?



P3 LED Display Screen

(P3 LED Screen in Shopping Mall)

If you are looking for a perfect LED screen for your next LED display project, the P3.91 LED screen display is an ideal choice for you.

It delivers high-quality pictures within the 13 to 43 feet (rough estimate) distance. It has an excellent design ideal for advertising and decorating your store, building, offices, etc.

The P3.91 LED screen panel is one of the most commonly used LED screens globally because of its superior performance. It is flexible, and it will surely help you deliver an excellent visual experience in your events.

It produces true color quality that has fully adapted to the human eye’s perception of colors. You can expect a more stable visual display with no flickers and ripples. Your display content will have real and natural quality.

The P3.91 LED is a full-color screen display that utilizes the most advanced LED technology to deliver fun, exciting, dynamic, creative content.

Its structure is perfectly engineered with high precision for quick and easy installation, connection, and removal. It also allows multiple installation methods to meet your different needs and requirements.



14. Where To Rent Or Buy A P3.91 LED Display Screen?



If you are looking for a P3.91 LED screen to buy or rent, you came to the right page. We are an all-in-one LED provider who will help you achieve your LED display goals.

YUCHIP is your trusted LED products supplier and manufacturer headquartered in Shenzhen, China. We provide LED screen products, services, and customized solutions all over the world.

As of today, we have already reached more than 102 countries by counting. We have also opened branches in different countries so we can reach wherever you are.

If you are ready to start your journey with us, don’t hesitate to get in touch with us today. Our field experts and devoted personnel will assist you every step of your way. We assure to give you a personalized LED display solution to meet your event’s needs or advertising requirements.

To know more about your P3 indoor or outdoor LED video wall price, send us the details of LED needs through our website or email.
