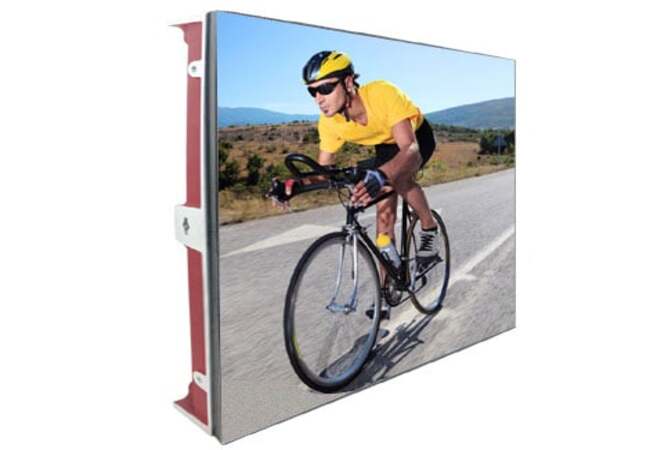

P3.91 Indoor Rental LED Screen


P3.91 Indoor Rental LED Screen is of high resolution among the indoor LED Display series and is the most popular choice for its balanced solution and cost.




Ultra-thin Indoor Cast Aluminum
  • Die Casting Aluminium cabinet 500mm*500mm*65mm
  • 0.1mm gap line between 2 cabinets; high technology design
  • High flatness

True Color

  • A leading international technology-by-point correction, reducing the use of advanced green color restore feature, fully adapted to the human eye perception of color habits, true to the nature of color.

High Refresh Rate

  • The display is stable, with no ripples, no flicker, display real and natural.
  • Small pitch LED display non-cable connectors have to improve the stability, easy installation, removal, and maintenance.

Pixel Configuration

SMD1921

Pixel pitch(mm)

3.91

Pixel density(dots/㎡)

65749

Module resolution(W×H)

64×64

Module size (mm)

250(W)×250(H)

Module weight (kg)

0.72

Maximum power consumption of the module(W)

45

Cabinet Module(W×H)

2×2/2×4

Cabinet resolution(W×H)

128×128/128×256

Cabinet size (mm)

500(W)×500/1000(H)×75(D)

Cabinet area(㎡)

0.25/0.5

Cabinet weight (kg)

8.2/14.9

Cabinet-level up degree(mm)

≤0.2

Maintenance mode

Rear

Cabinet raw material

Die-casting aluminum

Single-point brightness correction

Yes

Single – point color correction

Yes

White Balance Brightness (nits)

≥3500(6500K)

Color Temperature (K)

3200—9300(adjustable)

Viewing Angle (Horizontal / Vertical)

160/120

Deviation of center distance of light-emitting

<3%

Brightness / chromaticity uniformity

≥97%

Contrast

4000:1

Peak power consumption (W / ㎡)

800

Average power consumption (W / ㎡)

250

Power supply requirements

AC90~264V,frequency 47-63(Hz)

Frame rate (Hz)

50&60

Drive mode

Constant drive,1/16扫

Grayscale level

65536

Refresh rate (Hz)

≥1920

Number of color processing bits

14bit

Video playback capabilities

2KHD,4KHD

Operating temperature / humidity range (℃ / RH)

-20 – 60  / 10%-85%RH

Storage temperature / humidity range (℃ / RH)

-20 – 60  / 10%-85%RH

Applicable standards

CCC,TUV-CE,ETL



(P3.91 Indoor Rental LED Display)
