Ultra-thin Indoor Cast Aluminum

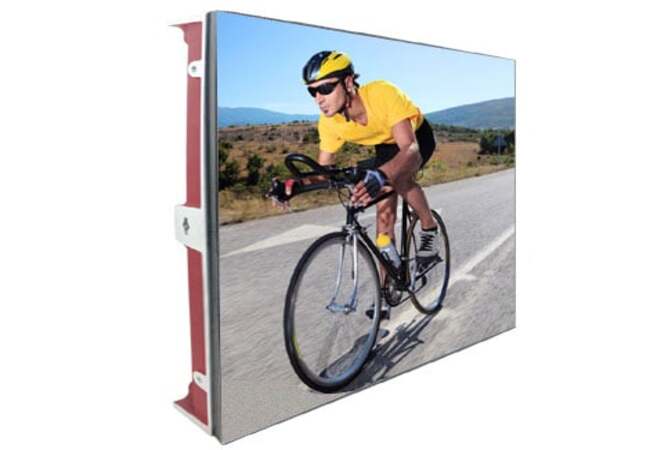

P3.91 Indoor Rental LED Screen
P3.91 Indoor Rental LED Screen is of high resolution among the indoor LED Display series and is the most popular choice for its balanced solution and cost.
- Product Features
- Parameters
- Related Videos
- Die Casting Aluminium cabinet 500mm*500mm*65mm
- 0.1mm gap line between 2 cabinets; high technology design
- High flatness
True Color
- A leading international technology-by-point correction, reducing the use of advanced green color restore feature, fully adapted to the human eye perception of color habits, true to the nature of color.
High Refresh Rate
- The display is stable, with no ripples, no flicker, display real and natural.
- Small pitch LED display non-cable connectors have to improve the stability, easy installation, removal, and maintenance.
Pixel Configuration | SMD1921 |
Pixel pitch（mm） | 3.91 |
Pixel density（dots/㎡） | 65749 |
Module resolution（W×H） | 64×64 |
Module size （mm） | 250（W）×250（H） |
Module weight （kg） | 0.72 |
Maximum power consumption of the module（W） | 45 |
Cabinet Module（W×H） | 2×2/2×4 |
Cabinet resolution（W×H） | 128×128/128×256 |
Cabinet size （mm） | 500（W）×500/1000（H）×75（D） |
Cabinet area（㎡） | 0.25/0.5 |
Cabinet weight （kg） | 8.2/14.9 |
Cabinet-level up degree（mm) | ≤0.2 |
Maintenance mode | Rear |
Cabinet raw material | Die-casting aluminum |
Single-point brightness correction | Yes |
Single – point color correction | Yes |
White Balance Brightness （nits） | ≥3500（6500K） |
Color Temperature (K) | 3200—9300(adjustable) |
Viewing Angle (Horizontal / Vertical) | 160/120 |
Deviation of center distance of light-emitting | <3% |
Brightness / chromaticity uniformity | ≥97% |
Contrast | 4000：1 |
Peak power consumption (W / ㎡) | 800 |
Average power consumption (W / ㎡) | 250 |
Power supply requirements | AC90~264V，frequency 47-63（Hz） |
Frame rate (Hz) | 50&60 |
Drive mode | Constant drive，1/16扫 |
Grayscale level | 65536 |
Refresh rate (Hz) | ≥1920 |
Number of color processing bits | 14bit |
Video playback capabilities | 2KHD，4KHD |
Operating temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
Storage temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
Applicable standards | CCC，TUV-CE，ETL |
(P3.91 Indoor Rental LED Display)
