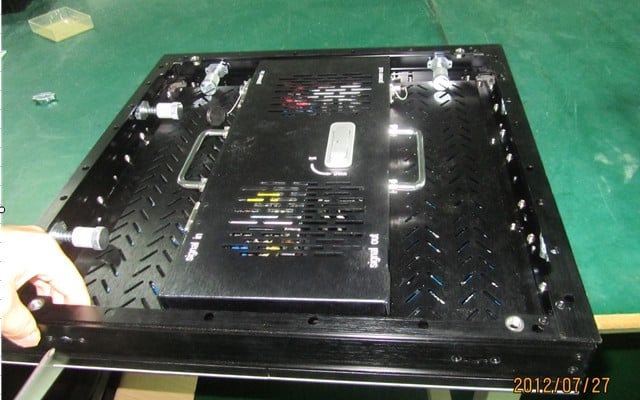

P3 Ultra Thin LED Screen
P3 Ultra Thin LED display is of high resolution for Indoor rental events that require a high-quality presentation, and its cost is lower for large-sized indoor LED screen use.
- Product Features
- Parameters
- Related Videos
- P3 Indoor Ultra Thin LED display uniform in brightness and color;
- Ultrathin design: It is ultra-light and ultrathin and requires low load-bearing.
- Indoor full-color Ultra Thin LED Screen contrast ratio up to 4000:1 to react accurate color of the content;
- Utilizing sum driver IC to reach high refresh frequency and high grey grade;
- P3 Ultra Thin LED display is of high resolution for Indoor rental events that require a high-quality presentation, and its cost is being lower for large size indoor LED screens to use.
|
LED MODULE PARAMETER |
|
| Pixel pitch (mm) |
3 |
| Pixel configuration |
1R1G1B |
| Encapsulation |
SMD2121 |
| Colors matches |
6:3:1 |
| Module resolution (pixels) |
80*80 |
| Module pixel |
6400 |
| Module size (mm) |
240*240*15mm |
|

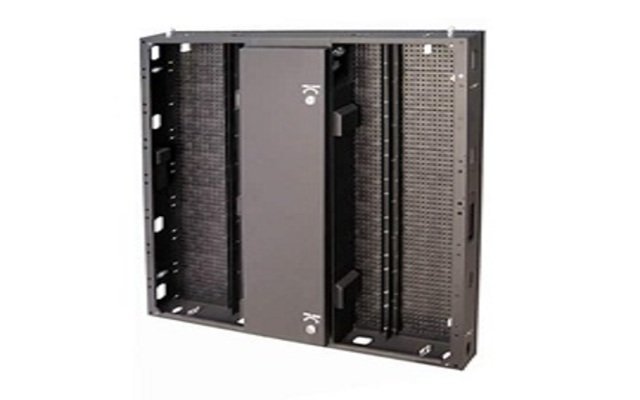

LED CABINET SPECIFICATION |
|
| Cabinet size (mm) |
480*480*80mm |
| Cabinet resolution (pixels) |
160*160 |
| Cabinet pixels (pixels) |
25600 |
| Cabinet material |
Cast aluminum |
| Cabinet weight (kg) |
8.5kg |
|
LED DISPLAY SPECIFICATION |
|
| Pixel density(pixel/㎡) |
111111 |
| Brightness (cd/㎡) |
800-1200 CD/㎡ (adjustable) |
| Brightness adjusted |
100 grade by software or by Auto-optic induced |
| View angle |
Horizontal 110°; Vertical 50° |
| Best viewing distance (m) |
≥3m |
| Communication distance (m) |
<100meter by Internet Cable(without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display work method |
1/16 Scan |
| LED driving method |
Constant driving current |
| Color contrast ratio |
4000:1 |
| Gray Grade |
16bit |
| Display Color |
439, 804, 651, 110 |
| Refresh Frequency (Hz) |
1000-2400Hz |
| Picture display method |
Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input signal |
DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting ) |
| System operating |
WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level |
IP30 |
| Working temperature (ºC) |
-10～+40 |
| Stored temperature (ºC) |
-30～+80 |
| Operation humidity (RH) |
0-95% |
| Display Lifetime (hours) |
10 years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance |
Front |
| Working Voltage |
AC110 / AC220V±10% 47～63HZ |
| Out of controlled dot |
≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
