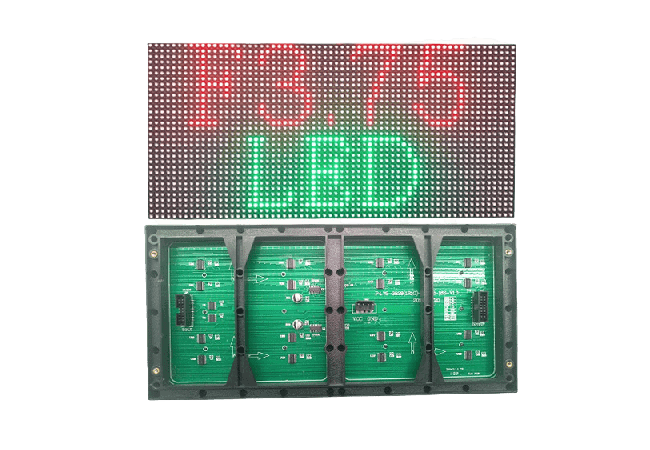

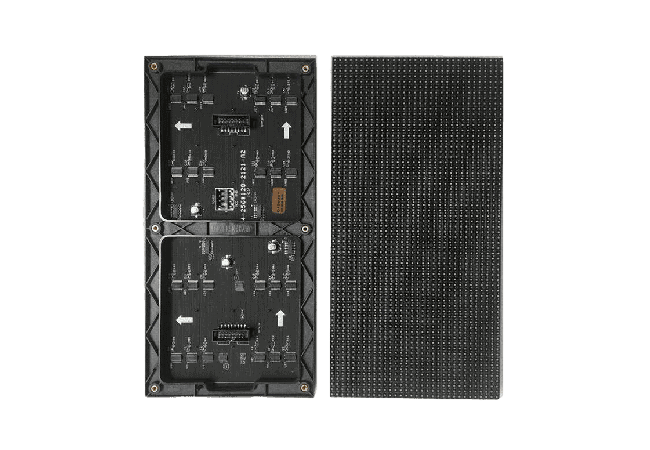

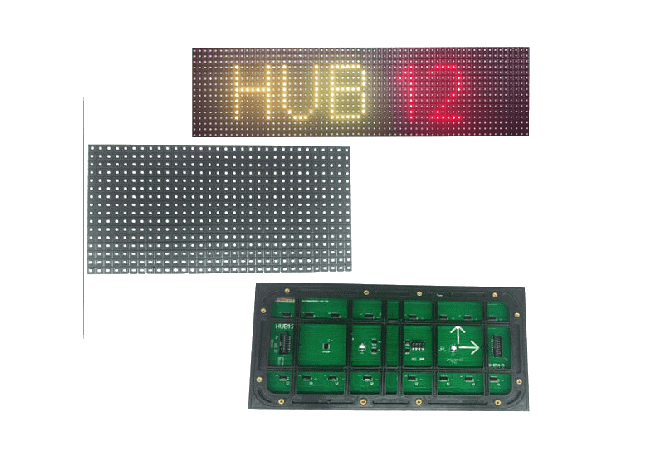

P4.75 LED Module
The P4.75 LED Screen Panel is premium for single and dual color displays. It is also a widely utilized LED screen product for rental events, advertising boards, etc.
It comes with sturdy and quality components that can withstand time and various extreme weather conditions. Also, it features convenient operations such as uploading content, safeguarding ads and campaigns, and supports multiple file formats and control systems.
YUCHIP products come with guides; manuals partnered without excellent services that you can rely on in the long run. What are you waiting for?
Contact us today!
- Parameters
- Features & Descriptions
- Related Videos
P4.75 LED Module Specification | ||||||||
| Pixel pitch (mm) | 4.75 | |||||||
| Pixel configuration | Ф3.75 | |||||||
| Colors matches | 1R | |||||||
| Module resolution (WxH) | 64 x 32 | |||||||
| Module size (mm) | 304 x 152 | |||||||
P4.75 LED Display Specification | ||||||||
| Pixel density（pixel/㎡） | 44320 | |||||||
| Brightness（cd/㎡） | ≥1500 (adjustable) | |||||||
| Brightness adjusted | 100 grade by software or by auto-optic induced | |||||||
| View angle | Horizontal 140°; Vertical 140° | |||||||
| Best viewing distance (m) | ≥3m | |||||||
| Communication distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||||
| Display work method | 1/16 Scan | |||||||
| LED driving method | Constant driving current | |||||||
| Gray Grade | 256 | |||||||
| Display Color | 1024 | |||||||
| Refresh Frequency (Hz) | ≥200 | |||||||
| Picture display method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||||
| Input signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting) | |||||||
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||||
| Front/Rear IP Level | IP43 | |||||||
| Control System | ||||||||
| Working temperature(ºC) | -20～+60 | |||||||
| Stored temperature (ºC) | -30～+80 | |||||||
| Operation humidity(RH) | 0-95% | |||||||
| Display Lifetime(hours) | Ten years or more (natural environment) 100000 hours (ideal environment) | |||||||
| Maintenance | Rear side | |||||||
| Working Voltage | AC110 / AC220V±10% 47～63Hz | |||||||
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) | |||||||
FEATURES
The P4.75 LED Screen Panel has the following features:
- Front Maintenance
The P4.75 LED Screen Panel has a full front maintenance feature, making it even easier to check the parts inside, clean, and perform monitoring tasks for the display component. In front maintenance, you’ll use a magnet or a screwdriver that easily detaches the module from the cabinet.
- Full-Color/ Single-color Options
It is available in full-color and single-color designs. You can use a full-color display as an advertising or commercial screen, while a single-color is suitable for single-message display, minor store signs, and traffic signage.
- Affordable
If you’re looking for the most affordable price yet quality products, our screen solution series is the best. You can contact us to know more about our price range and our successful customer stories worldwide.
- Versatile
You can use the P4.75 LED Module in many ways and many applications. It is lightweight and has a portable design for installing in various places and areas for your business.
CATEGORY
You can find the P4.75 LED Screen Panel in the following LED screen solution and product series. YUCHIP also welcomes customization of various sizes, cabinet materials, and designs to cater to your project and desired outcomes. We provide comprehensive LED screen guidance and services to help you go through product adjustment and operation.
- Single-message LED Display
- Truck LED Advertising
- Indoor Fixed LED Display
- Trade Show LED Display
- Flexible LED Screen
- LED Theater Screen
- Museum LED Screen
- Indoor Rental LED Display
- Commercial LED Display
- Stadium LED Screen
- Transportation LED Screen
- LED School Sign
- Hospitality LED Screen
- Control Room Display Screen
- DJ LED Wall
- Stage LED Screen
- LED Display Ball
