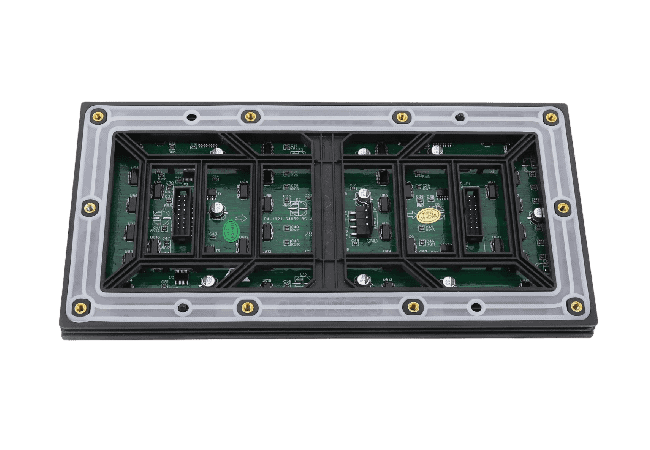

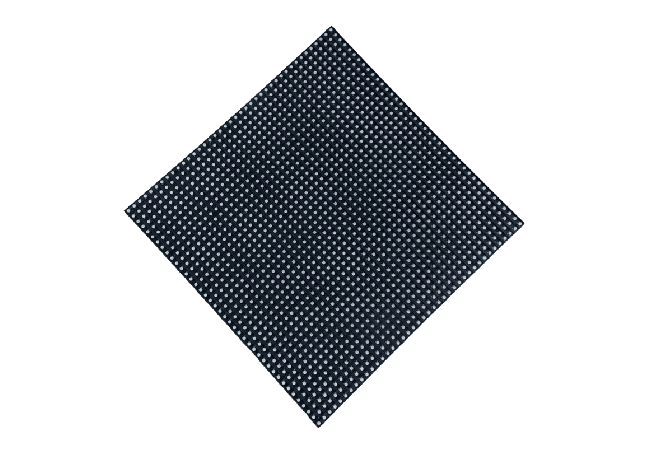

P4.8 Outdoor LED Module

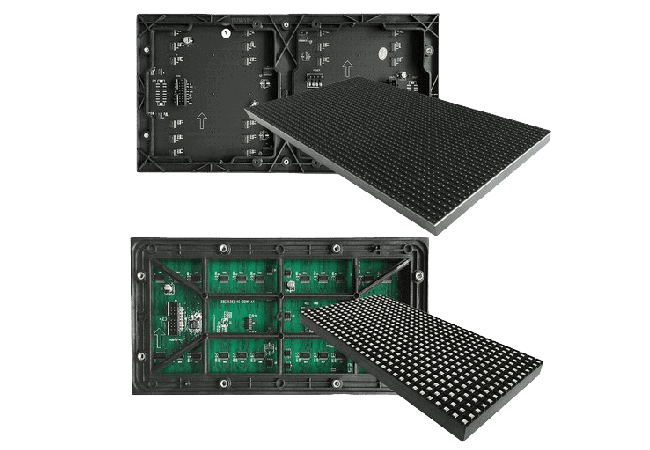

The P4.8 Outdoor LED Screen Panel is an ideal stadium and rental display product. It has outstanding visuals, full front maintenance, has adjustable brightness that makes low light emissions, and more.

Before pulling it out from our factory, it passes through various aging and display tests to ensure its best quality. And with a lifespan of ten years or more, it is an efficient and cost-effective investment for your business, advertising, or office needs.

Aside from manufacturing quality products, YUCHIP also takes pride in the great services we’ve provided in our hundreds of projects worldwide.

Supposed you need a P4.8 Outdoor LED Module, please don’t hesitate to contact us. Send us a message today!




P4.8 Outdoor LED Module Specification

Pixel Pitch (mm)

4.8

Pixel Configuration

SMD2727

Encapsulation

3 in 1

Colors Matches

6:3:1

Module Resolution (WxH)

64 x 32

32 x 32

Module Size (mm)

320 x 160

160 x 160

P4.8 Outdoor LED Screen Specification

Pixel Density(pixel/m²)

40000

Brightness(cd/m²)

≥7500 (adjustable)

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥5m

Communication Distance(m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/8 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

5000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP65

Working Temperature (ºc)

-20~+40

Stored Temperature (ºc)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Front side

Working Voltage

AC110 / AC220V±10% 47~63Hz

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



FEATURES

The P4.8 Outdoor LED Screen Panel has the following features:

  • Outstanding Visuals

Perfected with a good brightness level, high contrast ratio, high refresh rate, and better grayscale, the P4.8 Outdoor LED Display Panel shows nothing but outstanding visuals. These great combinations make a way in making images more vivid, clear, smooth, and attractive.

  • Front Maintenance

Front maintenance is a go-to method for many long-time LED display users and operators. It saves cost and requires a minimal workforce.

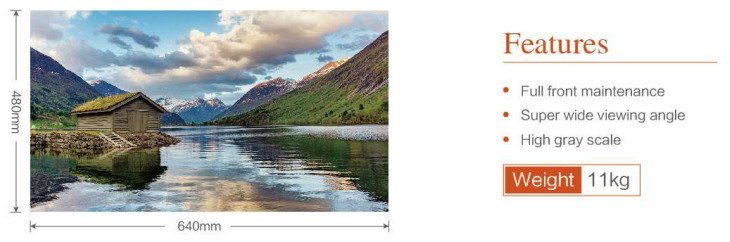

Full Front Maintenance

  • Low Light Emission

Because its adjustable brightness properties give way to making lower light emissions, especially at night, you may turn down the brightness to avoid too much light that can cause accidents, high radiation, and other environmental disturbances.

  • 3-5 Year Warranty

Apart from quality products, YUCHIP also brings you detailed guidance and manuals regarding the product’s operation, features, and more.

CATEGORY

You may find the P4.8 Outdoor LED Module among the following LED display product series and solutions. We also welcome custom-made designs and sizes to meet your desired project outcomes.

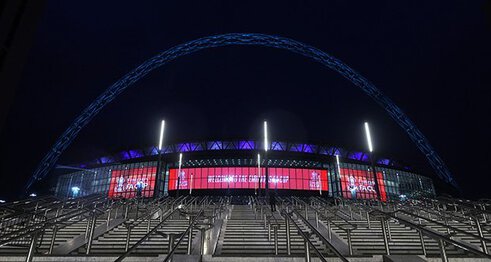

LED Stadium Screen
LED Stadium Screen

RELATED POSTS/ PROJECTS

You may read more about the P4.8 Outdoor LED Display Panel by following and visiting the following links:

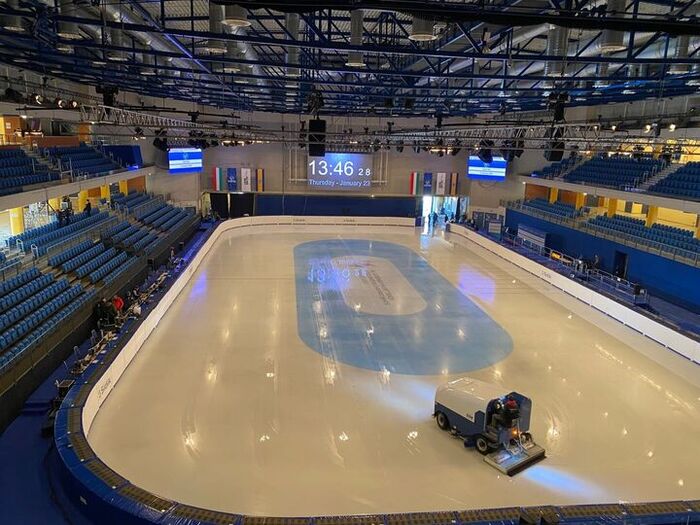

YUCHIP's P4.8 Rental LED Display For Hungary's Ice Hockey Stadium
YUCHIP’s P4.8 Rental LED Display For Hungary’s Ice Hockey Stadium

CONTACT US

Do you need a reliable companion for your outdoor projects? Are you looking for a great partner you can count on when you need an LED display for multiple applications? YUCHIP can be your best and most dependable provider, manufacturer, and supplier.

We have various partners and distributors from across the globe. Should you have questions, please don’t hesitate to reach us through the following links below or message us at manager@yuchip.com
