P4 Event LED Screen
Many events occur once in a while, annually, or seldom. So, many event organizers wonder how to get their circumstances to become fascinating. That’s when rental displays come in to save the day and give your audience an ultra-fine experience.
Events are where you have to leave a good impression on your viewers; that’s why it needs to be winning or likable. In this regard, YUCHIP brings you our event LED screen and event LED screen rental to help you prosper in your respective event.
Among our event LED screens, common among various affairs, is the P4 event LED screen with a soft module that you can bend over to achieve different shapes and dimensions. We also welcome customization options. Would you please message us to know more?
- P4 Event LED Screen Product Features
- Parameters
- Related Videos
Event LED screen has versatility properties making it easier to adapt to various circumstances.
The event LED screen and event LED screen rental both has soft modules that you can bend over to create concave or convex curves in different degree angle. You can use them to make a flat panel or change them into arcs for another event.
One of the most common Event LED screens is the P4 LED screen which has adjustable brightness to deliver good lighting and color in concerts, family occasions, school programs, local or international affairs, and the like.
What Advantages Does P4 Event LED Screen Have?
- P4 Event LED Screen is among YUCHIP’s best-selling indoor rental displays because it has the perfect and satisfactory resolution for large indoor venues such as meeting halls, spacious hotels, giant casinos, and crowded malls and leisure areas.
- P4 Event LED Screen Rental comes with storage boxes upon delivery. It ensures that the display will not be damaged during transportation and when leasing from one place to another.
- We customize our P4 LED screen according to your preference to meet your project need.

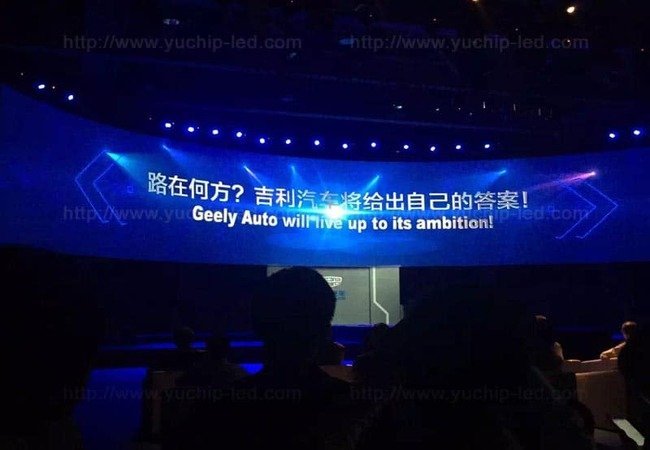

As an example, we feature to you one of YUCHIP’s P4 LED Screen projects. The details are as follows.
- Type: Event LED Screen Rental
- Pixel Pitch: P4
- Pixel Configuration: SMD3528
- Location: Guangzhou, China
- Purpose: Event and Stage Design Wall
YUCHIP P4 Event LED Screen Rental has an extremely high resolution LED screen that is great for outdoor projects where detail and impact are paramount. In this project, YUCHIP provided a P4 LED screen with an inward curve that looks satisfying and engaging.
You can use a P4 Event LED Screen Rental on different indoor and outdoor occasions, such as TV stations, restaurants, concerts, entertainment, commercials, and meeting. It shows the beauty of the world and brings us more fun.
P4 Event LED Screen Module Specification | ||||||||||||||
| Pixel Pitch (mm) | 4 | |||||||||||||
| Pixel Configuration | SMD2121 | |||||||||||||
| Encapsulation | 3 in 1 | |||||||||||||
| Colors Matches | 6:3:1 | |||||||||||||
| Module Resolution (pixels) | 64 x 32 | 32 x 32 | ||||||||||||
| Module Pixel | 2048 | 1024 | ||||||||||||
| Module Size (mm) | 256 x 128 | 128 x 128 | ||||||||||||
P4 Event LED Screen Cabinet Specification | ||||||||||||||
| Cabinet Size (mm) | 512 x 512 and customized | |||||||||||||
| Cabinet Resolution | 128 x 128 | |||||||||||||
| Cabinet Pixels | 16384 | |||||||||||||
| Cabinet Material | Steel / Aluminum / Die casting aluminum | |||||||||||||
| Cabinet Weight (kg) | 9 / 8 / 7 | |||||||||||||
P4 Event LED Screen Specification | ||||||||||||||
| Pixel Density（pixel/m²） | 62500 | |||||||||||||
| Brightness（cd/m²） | ≥1000 (adjustable) | |||||||||||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | |||||||||||||
| View Angle | Horizontal 140°; Vertical 140° | |||||||||||||
| Best Viewing Distance (m) | ≥4m | |||||||||||||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||||||||||
| Display Work Method | 1/16 Scan | |||||||||||||
| LED Driving Method | Constant driving current | |||||||||||||
| Color Contrast Ratio | 3000:1 | |||||||||||||
| Gray Grade | 16bit | |||||||||||||
| Display Color | 439, 804, 651, 110 | |||||||||||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | |||||||||||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||||||||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | |||||||||||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||||||||||
| Control System | ||||||||||||||
| Front/Rear IP Level | IP43 | |||||||||||||
| Working Temperature (ºC) | -20～+40 | |||||||||||||
| Stored temperature (ºC) | -40～+80 | |||||||||||||
| Operation Humidity (RH) | 0-95% | |||||||||||||
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) | |||||||||||||
| Maintenance | Rear / Front side | |||||||||||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | |||||||||||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | |||||||||||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) | |||||||||||||
(P4 Indoor Rental LED Display)
