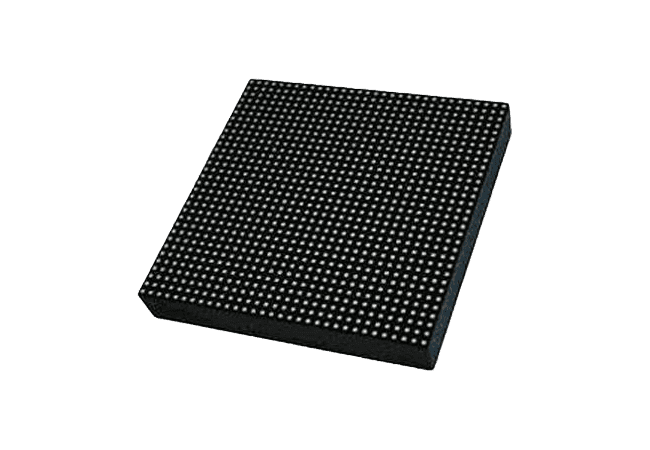

P4 LED Module

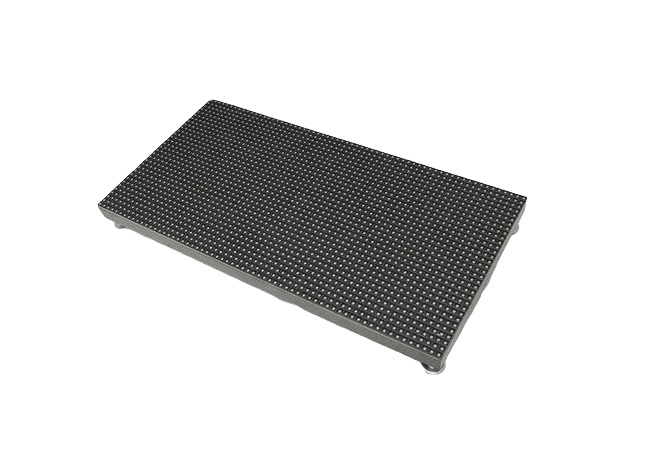

You may have heard or seen a P4 LED Screen Panel when you go to commercial areas such as cities, urban streets, concert halls, malls, and other crowded places. As a typical choice for indoor advertising and commercial use, the P4 LED Module is prevalent in many areas where people gather.

The P4 LED Display Panel has a long lifespan. It has sturdy cabinet material and components, has an easy maintenance method, comes in various designs, and is a cost-effective investment. It can help you promote products and services better, achieve a greater height in event hosting, and impact the public by being an information board for public announcements. All of these are achievable and feasible as we’ve accomplished various projects utilizing a P4 LED Module.

Please let us know if you need a P4 LED Display Panel for your project. YUCHIP is always ready to serve you.




P4 LED Module Specification

Pixel Pitch (mm)

4

Pixel Configuration

SMD2121

Encapsulation

3 in 1

Colors Matches

6:3:1

Module Resolution (WxH)

64 x 32

32 x 32

Module Size  (mm)

256 x 128

128 x 128

P4 LED Display Specification

Pixel Density(pixel/m²)

62500

Brightness(cd/m²)

≥1000 (adjustable)

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥4m

Communication Distance(m)

<100meter by Internet Cable(without Relay;            Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/16 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

3000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology,  Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting)

System Operating

WINDOWS 98,  WINDOWS 2000,  WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP43

Working Temperature (ºC)

-20~+40

Stored temperature (ºC)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear / Front side

Working Voltage

AC110 / AC220V±10%  47~63HZ

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



FEATURES

The P4 LED Display Panel has the following features:

  • Wide Viewing Angle

The P4 LED Module has a wide viewing angle. For vertical and horizontal angles, it has a 140 degree. The viewing angle, when comprehensive, is a significant factor that enriches the viewer’s experience using the product.

Wide Angle

  • Long Lifespan

LED screens, such as the P4 LED Display Panel, are typically costly. They are huge investments for their price and size; that’s why a more extended service makes better profits, in a narrow sense. You can expect our products to have more than ten years of lifespan.

  • Crashproof Edges/ Rental Design

Each cabinet is equipped with a crashproof design for edges to ensure safe mobility and installation.

Crashproof Edges

  • Versatile Software And Easy Content Upload

It supports various software and control systems in the market, including Novastar, LEDvision, etc.

CATEGORY

The P4 LED Screen Panel is included in the following series. We can also customize a screen solution with the same pixel pitch to match your project needs accordingly. YUCHIP has a professional team with engineers and skilled individuals who are experienced in the field and market. Please let us know how we can help you.

PROJECT/ RELATED POSTS

The P4 LED Display Panel is featured in some of our projects. You can visit the links below to learn more about the project details, installation, locations, etc.

P4 Museum LED Ball Shenzhen
P4 Museum LED Ball Shenzhen

Also, here are some helpful links you can read. In the pages below, you’ll know about various LED screen features, some guides as a product user, features of the P4 LED Module for rental events, designs, and a lot more.

If you have inquiries and questions, you may reach us or message us at manager@yuchip.com.
