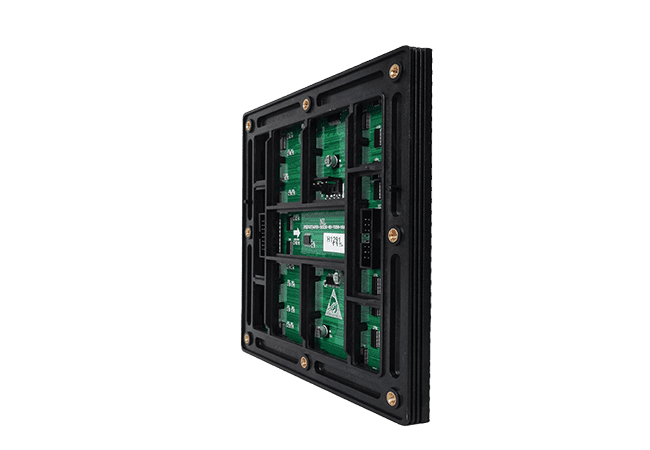

P5.926 Outdoor LED Module

Are you looking for an energy-efficient LED display with great features like vivid content display, adjustable brightness, lightweight and ultra-thin design? Here’s the P5.926 Outdoor LED Screen Panel.

It comes with a 3-5 year warranty, has seamless splicing, comes in various sizes and designs, and has durable components. Also, it is one of the most common rental panels we feature in many of our projects worldwide. You may use it in various applications such as a LED school sign, outdoor theater screen, outdoor digital panel, airport and train station signboard, and more.

As it is lightweight, you may also install it in many ways, including hanging, wall embedded, and more. Please send us a message today!

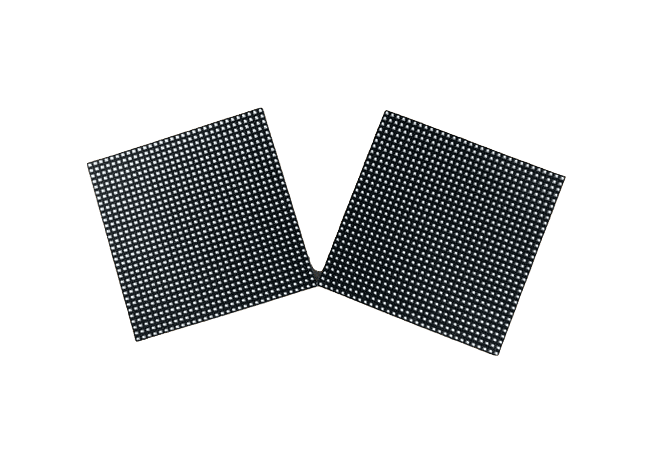

P5.926 Outdoor LED Module Specification

Pixel Pitch (mm)


Pixel Configuration




Colors Matches


Module Resolution (WxH)

48 x 48

Module Size (mm)

320 x 320

P5.926 Outdoor LED Screen Specification

Pixel Density (pixel/㎡)


Brightness (cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)


Communication Distance (m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable <20km

Display Work Method

1/6 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio


Gray Grade


Display Color

439, 804, 651, 110

Refresh Frequency (Hz)


Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through video processor converting)

System Operating


Front/Rear IP Level


Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature (ºc)


Stored Temperature (ºc)


Operation Humidity (RH)


Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)


Rear side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)

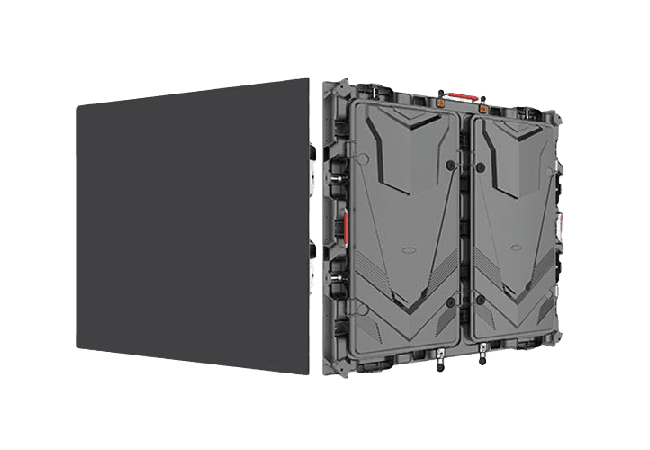

The P5.926 Outdoor LED Screen Panel has the following features:

  • Energy-efficient

LED Display Energy Conservation

The P5.926 Outdoor LED Screen Panel is equipped with energy-saving properties. With the latest technology and advanced design and competence, it consumes lesser energy and power than traditional LED screens.

  • Lightweight/ Ultra-thin

The LED display module makes effortless and thin slicing. Also, its thin panels are completely lightweight and make way for easy installation and dismantling during rental events.

Perhaps, because it is light, you may apply and install it in many ways, either for advertising or information board.

  • Vivid Content Display

The P5.926 Outdoor LED Display Panel utilizes Nationstar LED, a trusted brand in the market. It is of durable strength, has low pixel failure, and makes excellent visual content display.

  • Rental Design

Rental Design

Apart from the dependable panels and features, the P5.926 Outdoor LED Screen Panel is available with a rental design. It is one of the most commonly used rental LED displays across our various projects.

  • 3-5 Year Warranty

The P5.926 Outdoor LED Display Panel comes with a 3-5 year warranty. Rest assured, we’ll be right here with you, a call away when you need us.


The P5.926 Outdoor LED Module is included in the following series below. We also welcome custom-made designs and sizes if you need an LED display for a different application or use. Please message us at manager@yuchip.com for more information.
