P5 SMD LED Display Screen


Utilizing SMD technology, P5 SMD LED Display Screen has a good light distribution, comprehensive perspective, and higher contrast than non-SMD screens.

Its measured and perfect indoor usage parameters best fit shopping malls, theaters, school or business establishments, and many more. Along with SMD usage, P5 Indoor also uses quality and reliable outer core materials to ensure its sturdy performance in the long run.

Also, LED P5 Indoor undergoes various tests such as aging, display, and screen tests. Should you have more questions, please send us an inquiry.




P5 SMD LED Display Screen utilizes SMD technology, the latest technology development in the LED display industry. Below is some information about P5 Indoor.

  • SMD Technology

Since it uses SMD technology, the LED P5 Indoor has a better light extraction and distribution advantage. Generally, with overall proper lighting, a P5 SMD LED Display Screen will surely give a pleasing identity to your area, office, establishment, or vicinity.

  • Easy Maintenance

For fixed installation, P5 SMD LED Display Screen uses front maintenance that is better and easier than rear maintenance. The LED module is detachable from the cabinet using a magnet with a unique design tool upon delivery.

  • Clear Visuals

A 5mm (considered small or low) pixel pitch has high-resolution visuals that make your viewing and watching more exciting and comfortable. It also has a unique panel design with lighter materials making the panel thinner and easier to maintain.

  • Technical Aging Tests

After finishing manufacturing, the LED P5 Indoor undergoes and should pass the display, screen, and aging tests. It ensures that the materials, spare parts, and overall equipment can withstand various installation circumstances. Alongside, in the tests, the display’s size, objective, impact, parameters are also measured to correct issues or problems.

  • Customization

YuChip engineers will provide you a comprehensive option of sizes and customization options to help you target and meet your goals, considering the manufacturing length, budget, and profits altogether. Our R&D team will help you in realizing your prospect.

  • Widespread Use

P5 Indoor is your perfect model for indoor applications; best installed around shopping malls, recreational areas, schools, banks, transport terminals, hotels and restaurants, and many more.

  • After-sales Service

After purchase, YUCHIP will guide and be there for your further questions and respond promptly to your inquiries. We provide on-site visitation, technical and online support, and product replacement considering the nature and causes of damage (if any).

LED P5 Indoor Module Specification

Pixel Pitch (mm)

5

Pixel Configuration

SMD2121

Encapsulation

3 in 1

Colors Matches

6:3:1

Module Resolution (pixels)

64 x 32

Module Pixel (pixels)

2048

Module Size (mm)

320 x 160

LED P5 Indoor Cabinet Specification

Cabinet Size (mm)

960 x 960 and customized

Cabinet Resolution (pixels)

192 x 192

Cabinet Pixels (pixels)

36864

Cabinet Material

Steel / Aluminum / Die casting aluminum

Cabinet Weight (kg)

35 / 28 / 22

LED P5 Indoor Screen Specification

Pixel Density (pixel/m²)

40000

Brightness (cd/m²)

≥1000 (adjustable)

Brightness Adjusted

256 grade by software or by Auto-optic induced

View Angle

Horizontal 140°; Vertical 140°

Best Viewing Distance (m)

≥5m

Communication Distance(m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/8 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

5000:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1920, ≥3840 Optional

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, MultimodeHDMI, VGA, PAL/NTSC, etc. through Video processor converting )

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Control System

Novastar, Linsn, LEDvision, LEDset

Front/Rear IP Level

IP43

Working Temperature (ºc)

-20~+40

Stored Temperature (ºc)

-40~+80

Operation Humidity (RH)

0-95%

Display Lifetime(Hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear / Front side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Power Consumption

Max: 700W/㎡ ; Ave:250W/㎡

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)



(P5 Full Color Indoor LED Display)

SMD LED Display Screen: Ultimate FAQ Guide

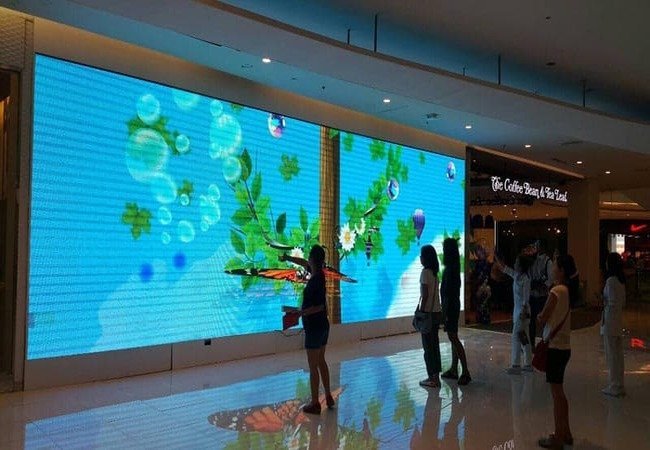

SMD LED Display Screen

SMD (Surface-Mounted Device)

The advancement in LED technology has eliminated most of the limitations of using the earlier versions of LED screens. Before, LED displays were only based on DIP technology or Dual In-line package LED screens.

Now, there are several LED display screen technologies that you can choose from depending on which you find more suitable or fitting for your personal or business needs.

Some LED technology options available in the market are DIP, SMD, COB, and GOB. You can read our detailed article about the difference among these four here DIP VS. SMD VS. COB VS. GOB LED: Quick Comparison Guide.

For this article, we will focus on Surface Mounted Diode (SMD) LED Display screens. This article will explain why it is a trendy choice and why you should have it too.



1. What Is An SMD Screen LED?



P5 Indoor
P5 Indoor

Unlike the traditional LED technology that uses three different LEDs (red, green, and blue), SMD technology groups the LEDs together in one square or dot that can either be white or black.

Each grouping has a minimal diameter. The SMD LEDs are almost not visible separately, meaning the gap between each pixel or dot is unlikely to be noticed. This structure allows for smaller pixel pitches, which is ideal if you prefer ultra-high resolution. LED screens with 1 mm pixels are possible with this technology.

Since SMD LEDs can have three (3) diodes in a single chip, it’s highly versatile in producing adjustable colors output levels. Think of it like this, instead of having separate diodes to create different colors, SMD technology makes it possible for each diode to produce any color. With this, users like you are guaranteed to have picture quality that has excellent sharpness and vividness.



2. How Do SMD LED Displays Work?



The SMD LED has 3-in-1 encapsulation. In other words, it integrates three cells into one system. Each system has a luminescent element or light semiconductor that emits light whenever electric current flows through it.

The SMD LED each has a cathode contact and an anode contact for each semiconductor luminescent element.

These LED squares are soldered on the panel circuit board through a process called polarization using high-tech equipment. It is a crucial step for SMD technology to prevent loose attachment or non-functioning LEDs.

Protective resins are then used to cover the upper/outer part of the chip to protect it from scratch or intrusion, which can damage or affect its light quality. The resins are available in different shades and colors.



3. What Do The Numbers In The SMD Mean?



Each SMD LED type has four-digit. These numbers that you see after “SMD” refer to the size of LED used in the LED display. The first two digits refer to the length, and the next two refer to the height (tenths of mm).

Here’s a table for your guidance and reference:



SMD LED Type

Size (mm)

SMD 1010

1.0 x 1.0

SMD 1104

1.1 x 1.4

SMD 1515

1.5 x 1.5

SMD 1921

1.9 x 2.1

SMD 2020

2.0 x 2.0

SMD 2121

2.1 x 2.1

SMD 2727

2.7 x 2.7

SMD 2835

2.8 x 3.5

SMD 3020

3.0 x 2.0

SMD 3040

3.0 x 4.0

SMD 3535

3.5 x 3.5

SMD 4014

4.0 x 1.4

SMD 5050

5.0 x 5.0

SMD 5730

5.7 x 3.0

SMD 7020

7.0 x 2.0

SMD 8520

8.5 x 2.0



The LED types included in the table are not the totality of available SMD LEDs. These are just the most common types you will find in the market. The SMD LEDs used in LED displays vary from one manufacturer to another.

You can contact your LED display supplier to know about the SMD type they offer, or you can request the one you prefer.

If you want a high-quality SMD LED display screen, you can contact us at manager@yuchip.com.



4. Why Choose An SMD LED Display?



Indoor P5 LED
Indoor P5 LED

If you think about whether to choose SMD technology or others, here are cited reasons to help you decide whether you should go for it or not.

  • If you want an LED display screen with excellent color consistency, choose SMD LED.

Each SMD LED grouping has excellent seamless blending and color mixture for improved picture quality and screen resolution. In general, the color uniformity and saturation of the SMD LED display are perceived superior, especially from a close viewing distance.

  • If you want a display with an incredible viewing angle, the SMD LED display screen is perfect for you.

The SMD technology gives your LED display a viewing angle better than other display technology. It has more than 120 degrees viewing angle that allows optimal vision from any direction.

  • If you want the best indoor LED display with the smallest pixel pitch, pick an SMD LED display screen.

The SMD technology produces a full-HD 1080p LED video display, whether that is a small screen or modular one. With pixel pitch that can be less than 1mm, SMD display becomes the most preferred choice of many for indoor application.

  • If you want a thinner, lighter, and better-looking screen, you will find SMD LED display screen fitting.

Compared to older LED technology, SMD technology can bring more flatness to your LED screen due to its LED configuration.  Choosing this type of LED screen display is convenient if you do not intend to place it in one area.



5. Does YUCHIP Offer SMD LED Display Screens?



LED P5 Indoor
LED P5 Indoor

YUCHIP offers a wide variety of SMD LED display screen solutions for various applications. From fine pixel pitch display for indoor installation to LED display with higher pixel value for your outdoor use, we got you covered.

We use SMD display technology with an RGB system ideal for domestic, industrial, and commercial lighting and display systems. Our SMD LED display solutions are widely used in supermarkets, restaurants, conferences, offices, hotels, churches, banks, transport terminals, sports arenas, schools, etc.

All our SMD LED screens undergo a series of tests and quality checks such as aging tests and performance tests before shipping- this is to ensure that each customer will receive nothing but what they have expected from us.

Should you have any pressing questions regarding our SMD screens and how we can serve you, please send us your inquiry through our website or email us at manager@yuchip.com.



6. Call To Action



P5 Indoor Cabinet
P5 Indoor Cabinet

For any LED display project that requires a high-quality and excellent solution, YUCHIP is your trusted partner.

Our team of well-rounded LED experts will offer you comprehensive options to help you realize your goals.

Rest assured that we will be there to supply all of your needs pre and after-sales. We provide prompt answers to your inquiries to make sure you are satisfied with our products and services.

We conduct on-site visitation, offer technical and online support, provide product replacement (provided that certain conditions are met).

If you want a hassle-free experience in achieving your LED display goals, YUCHIP is here to serve you.
